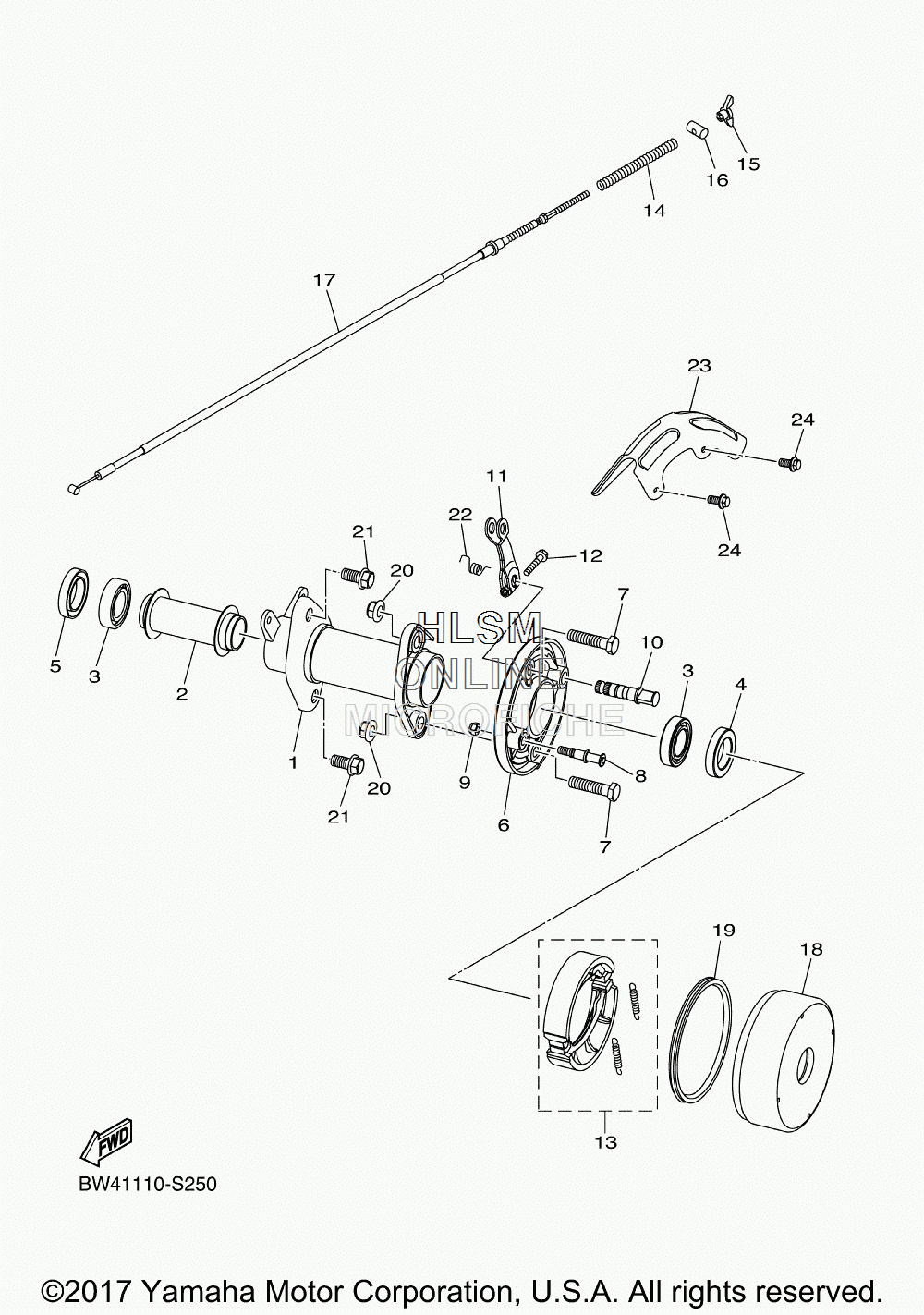

BRAKE - REAR DRUM для Yamaha YFZ50 - 2018 года выпуска
-
№АртикулНазвание
-
1BW4-F5311-00-00 HUB, REARHUB, REAR
-
2BW4-F5317-00-00 SPACER, BEARINGSPACER, BEARING
-
3BD3-F53N4-00-00 BEARINGBEARING
-
4BD3-F537Y-00-00 SEAL, DUSTSEAL, DUST
-
5BD3-F5319-00-00 SEAL, HUB DUSTSEAL, HUB DUST
-
6BD3-F5321-00-00 PLATE, BRAKE SHOEPLATE, BRAKE SHOE
-
7BD3-F7217-10-00 BOLTBOLT
-
8BD3-F518E-10-00 SHAFTSHAFT
-
9BD3-F2143-10-00 NUTNUT
-
10BW4-F5351-00-00 CAMSHAFTCAMSHAFT
-
11BW4-F5355-00-00 LEVER, CAMSHAFTLEVER, CAMSHAFT
-
12BW4-F3767-00-00 BOLTBOLT
-
13BW4-F530K-00-00 BRAKE SHOE SETBRAKE SHOE SET
-
14BW4-F6304-00-00 SPRINGSPRING
-
15BW4-F6343-00-00 NUT, ADJUSTINGNUT, ADJUSTING
-
16BW4-F7438-00-00 PIN, CLEVISPIN, CLEVIS
-
17BW4-F6361-00-00 CABLE, BRAKECABLE, BRAKE
-
18BD3-F531E-00-00 DRUM, BRAKEDRUM, BRAKE
-
19BD3-F5336-00-00 RING 2RING 2
-
20BD3-F4477-10-00 NUTNUT
-
21BD3-F8374-10-00 BOLT, COWLINGBOLT, COWLING
-
22BD3-F5333-10-00 SPRING, RETURNSPRING, RETURN
-
23BW4-F2312-00-00 CASE, CHAIN 2CASE, CHAIN 2
-
24BW4-F7416-00-00 BOLT, FOOTRESTBOLT, FOOTREST
