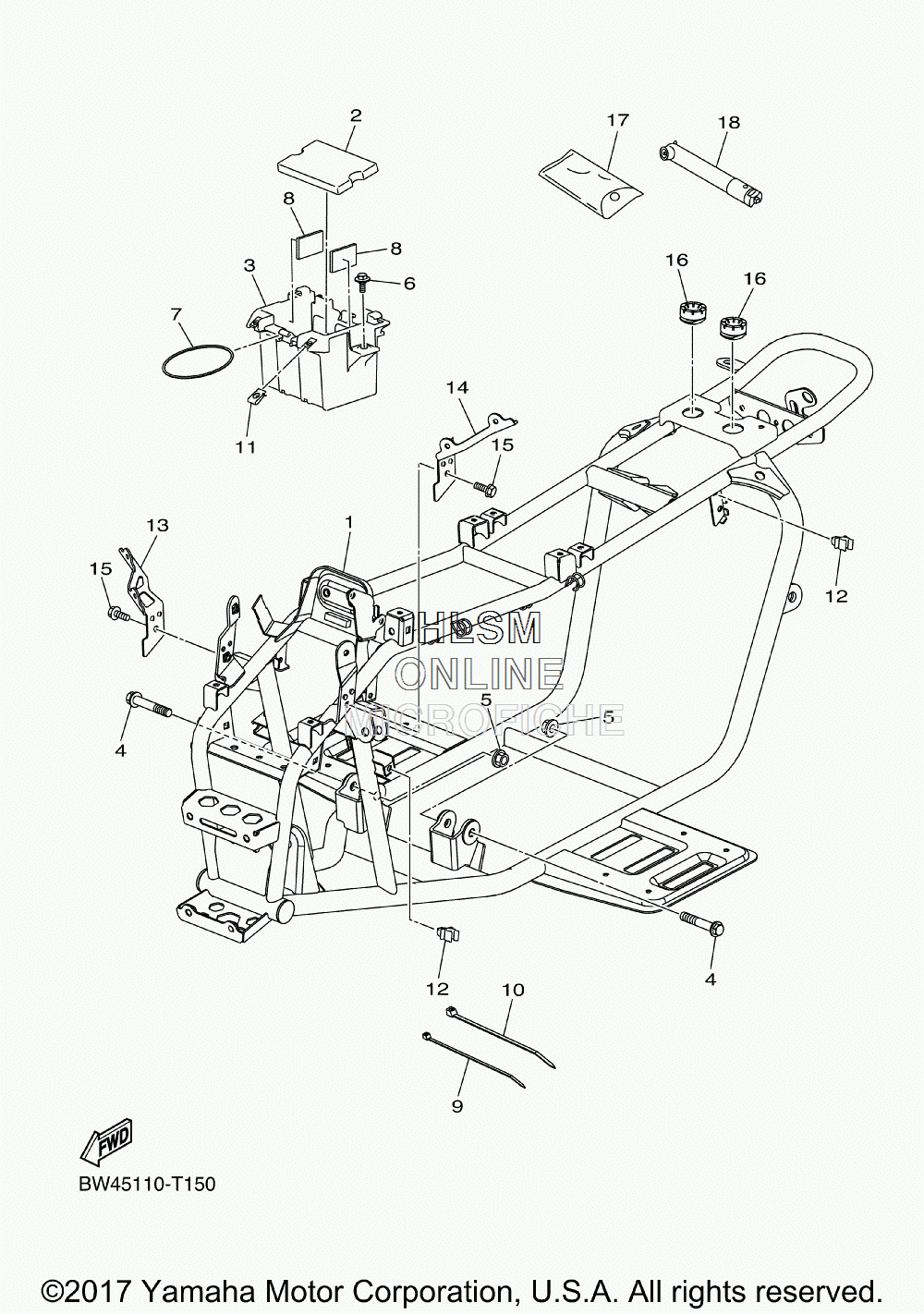

FRAME для Yamaha YFZ50 - 2018 года выпуска
-
№АртикулНазвание
-
1BW4-F1110-10-00 FRAME COMP.FRAME COMP.
-
2BW4-H2122-00-00 SEAT, BATTERYSEAT, BATTERY
-
3BW4-H212B-00-00 BOX, BATTERY 1BOX, BATTERY 1
-
4BW4-F6332-00-00 BOLTBOLT
-
5BD3-F1839-10-00 NUTNUT
-
6BD3-F1632-10-00 BOLT 2BOLT 2
-
7BD3-F4398-00-00 BAND 1BAND 1
-
8BW4-F1639-00-00 DAMPER 2DAMPER 2
-
9BD3-F1646-00-00 BANDBAND
-
10BW4-F1647-00-00 BANDBAND
-
11BW4-F1536-00-00 NUT 2NUT 2
-
12BD3-F15A3-00-00 CLAMPCLAMP
-
13BW4-H4119-00-00 STAY, HEADLIGHT 2STAY, HEADLIGHT 2
-
14BW4-H4118-00-00 STAY, HEADLIGHT 1STAY, HEADLIGHT 1
-
15BD3-H1452-10-00 BOLTBOLT
-
16BD3-F113B-00-00 DAMPERDAMPER
-
17BD3-F8100-10-00 TOOL KITTOOL KIT
-
18BD3-F811A-10-00 GAUGE, AIRGAUGE, AIR
