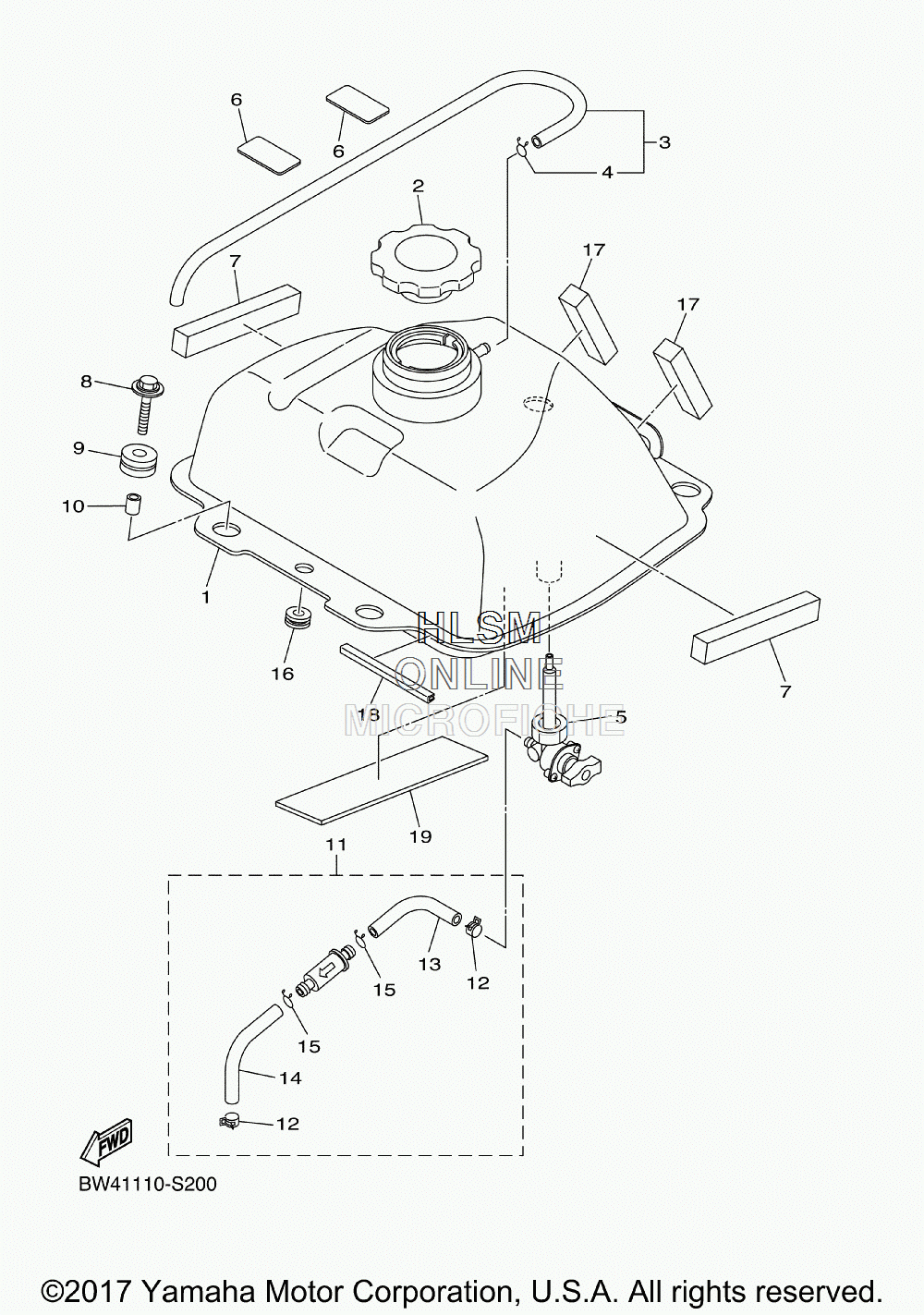

FUEL TANK для Yamaha YFZ50 - 2018 года выпуска
-
№АртикулНазвание
-
1BW4-F4110-00-00 FUEL TANK COMP.FUEL TANK COMP.
-
2BW4-F4610-00-00 CAP ASSYCAP ASSY
-
3BD3-F318J-10-00 HOSE ASSYHOSE ASSY
-
4BD3-F3447-10-00 ...CLIP...CLIP
-
5BW4-F4500-00-00 FUEL COCK ASSY 1FUEL COCK ASSY 1
-
6BD3-F1566-00-00 TAPE, 1TAPE, 1
-
7BD3-F4181-00-00 DAMPER, LOCATING 1DAMPER, LOCATING 1
-
8BD3-F3492-10-00 BOLTBOLT
-
9BD3-F4339-00-00 GROMMETGROMMET
-
10BD3-F412G-10-00 COLLARCOLLAR
-
11BW4-F4560-00-00 FILTER ASSYFILTER ASSY
-
12BD3-F4366-00-00 ...CLAMP, FUEL PIPE 1...CLAMP, FUEL PIPE 1
-
13BW4-E3971-00-00 ...PIPE, FUEL 1...PIPE, FUEL 1
-
14BW4-E3972-00-00 ...PIPE, FUEL 2...PIPE, FUEL 2
-
15BD3-F411M-10-00 ...CLIP...CLIP
-
16BD3-F1719-00-00 GROMMETGROMMET
-
17BW4-F4182-00-00 DAMPER, LOCATING 2DAMPER, LOCATING 2
-
18BW4-F476U-00-00 PROTECTOR 1PROTECTOR 1
-
19BW4-F4183-10-00 DAMPER, LOCATING 3DAMPER, LOCATING 3
