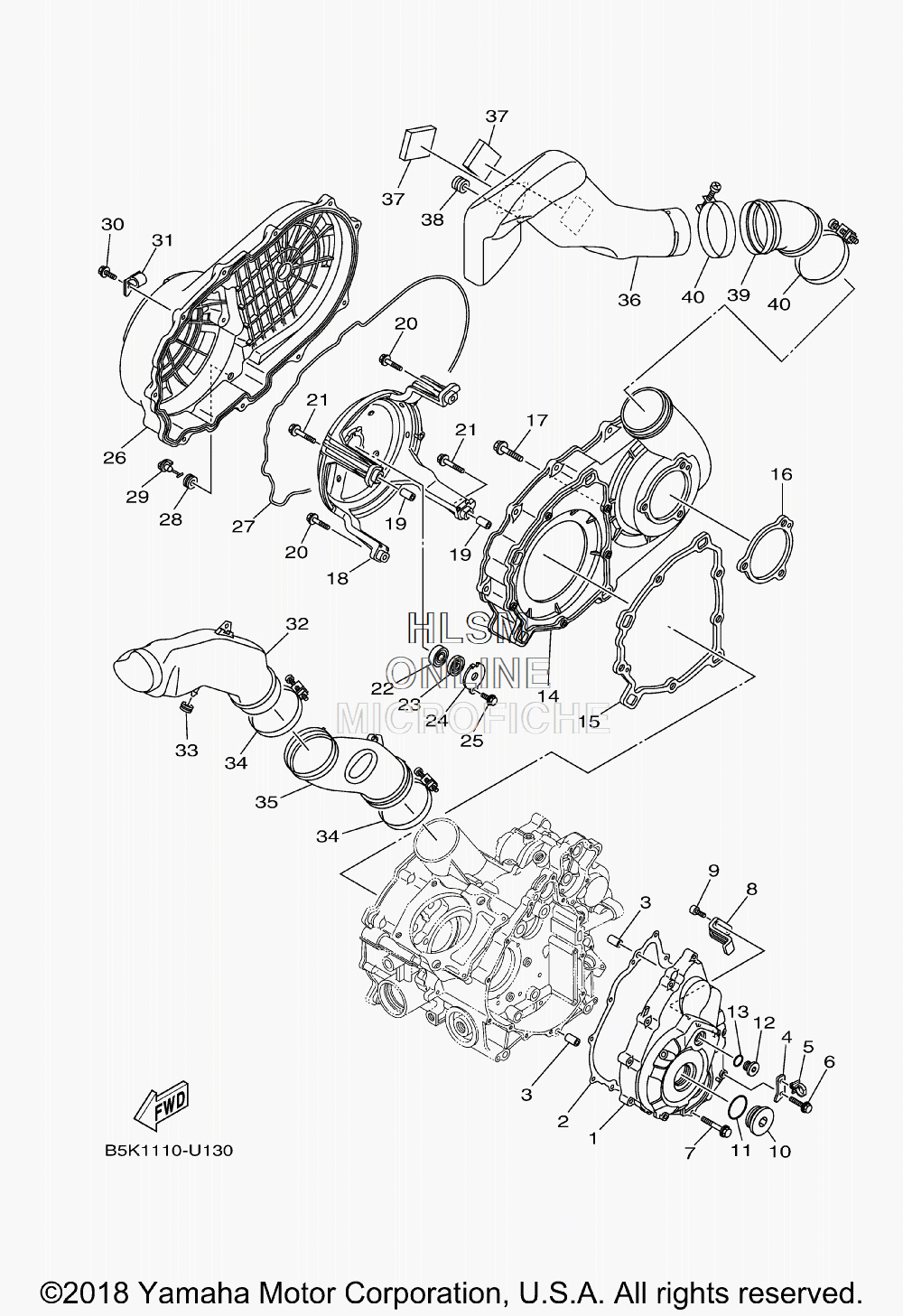

CRANKCASE COVER для Yamaha KODIAK 700 4WD - 2019 года выпуска
-
№АртикулНазвание
-
13B4-15411-10-00 COVER, CRANKCASE 1COVER, CRANKCASE 1
-
2B4F-15451-00-00 GASKET, CRANKCASE COVER 1GASKET, CRANKCASE COVER 1
-
399530-10116-00 PIN, DOWELPIN, DOWEL
-
41HP-15191-00-00 PLATEPLATE
-
590464-12001-00 CLAMPCLAMP
-
695022-06030-00 BOLT, FLANGEBOLT, FLANGE
-
795022-06050-00 BOLT, FLANGEBOLT, FLANGE
-
83B4-15113-00-00 PLATEPLATE
-
991312-05014-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
1090340-36004-00 PLUG, STRAIGHT SCREWPLUG, STRAIGHT SCREW
-
1193210-357A3-00 O-RINGO-RING
-
1290340-14016-00 PLUG, STRAIGHT SCREWPLUG, STRAIGHT SCREW
-
1393210-14369-00 O-RINGO-RING
-
143B4-15421-00-00 COVER, CRANKCASE 2COVER, CRANKCASE 2
-
153B4-15453-00-00 GASKETGASKET
-
163B4-15315-00-00 SEAL, CRANKCASESEAL, CRANKCASE
-
1795822-06030-00 BOLT, FLANGEBOLT, FLANGE
-
181XD-15442-00-00 HOUSING, BEARINGHOUSING, BEARING
-
1999530-10116-00 PIN, DOWELPIN, DOWEL
-
2095822-06030-00 BOLT, FLANGEBOLT, FLANGE
-
2195822-06040-00 BOLT, FLANGEBOLT, FLANGE
-
2293306-20103-00 BEARINGBEARING
-
2393101-12168-00 OIL SEALOIL SEAL
-
244WV-15381-00-00 PLATE, BEARING COVERPLATE, BEARING COVER
-
2595022-06016-00 BOLT, FLANGEBOLT, FLANGE
-
263B4-15431-00-00 COVER, CRANKCASE 3COVER, CRANKCASE 3
-
273B4-15379-00-00 SEAL, CRANKCASESEAL, CRANKCASE
-
2890480-13018-00 GROMMETGROMMET
-
295KM-15351-00-00 PLUG, DRAINPLUG, DRAIN
-
3095822-06020-00 BOLT, FLANGEBOLT, FLANGE
-
3190462-08055-00 CLAMPCLAMP
-
321HP-E5471-00-00 DUCT, AIRDUCT, AIR
-
3390480-13567-00 GROMMETGROMMET
-
3490460-85135-00 CLAMP, HOSECLAMP, HOSE
-
351HP-E5472-00-00 SEAL, AIR DUCTSEAL, AIR DUCT
-
361HP-E5473-00-00 DUCT, AIRDUCT, AIR
-
371S3-82123-00-00 SEAT, BATTERYSEAT, BATTERY
-
3890480-13398-00 GROMMETGROMMET
-
391HP-E5474-00-00 SEAL, AIR DUCTSEAL, AIR DUCT
-
4090460-85135-00 CLAMP, HOSECLAMP, HOSE
