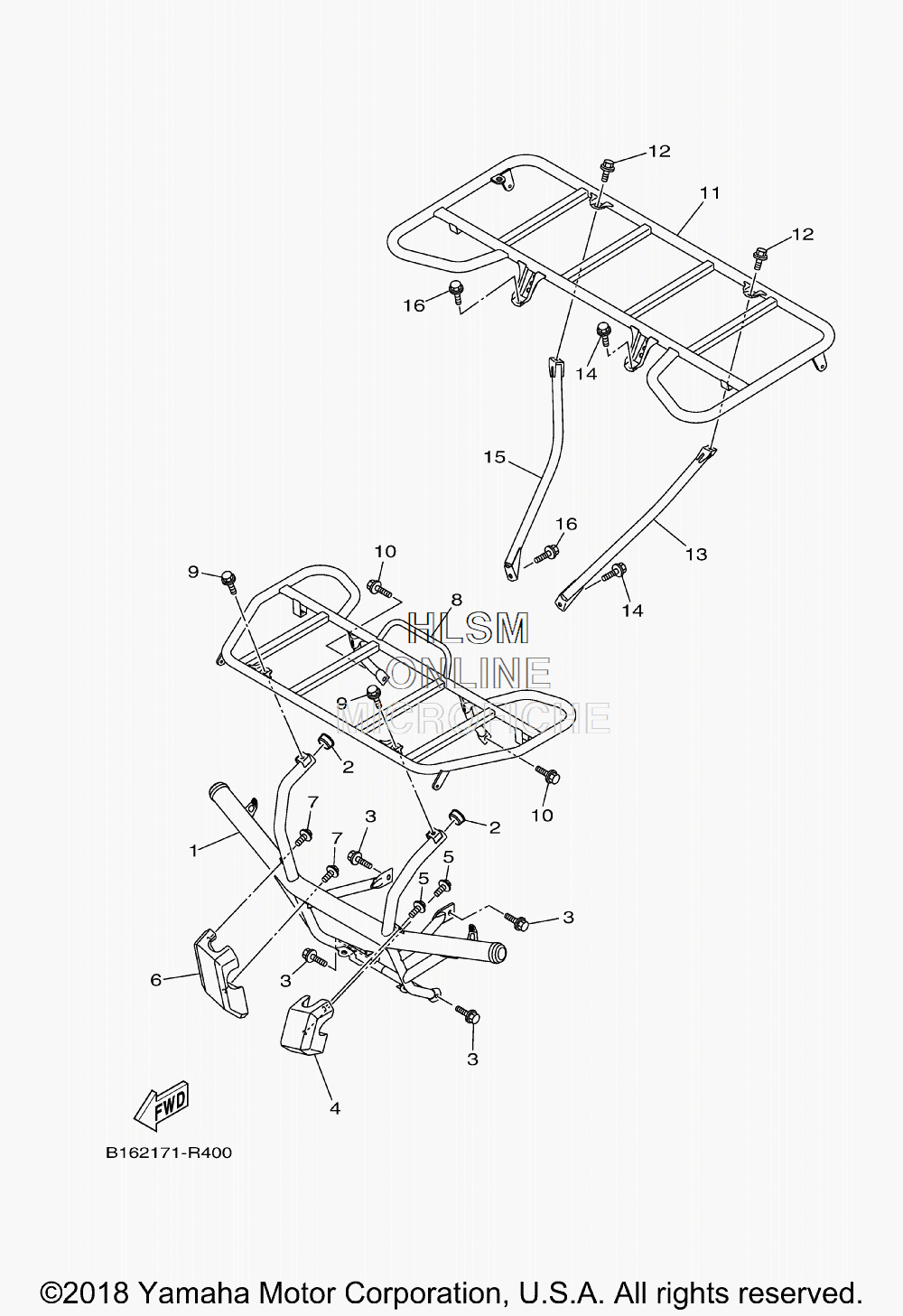

GUARD для Yamaha KODIAK 700 4WD - 2019 года выпуска
-
№АртикулНазвание
-
1B16-F845N-00-00 BAR, CARRY FRONTBAR, CARRY FRONT
-
290338-26004-00 PLUGPLUG
-
395812-08014-00 BOLT, FLANGEBOLT, FLANGE
-
4B16-F842M-00-00 COVER 1COVER 1
-
595812-06010-00 BOLT, FLANGEBOLT, FLANGE
-
6B16-F842N-00-00 COVER 2COVER 2
-
795812-06010-00 BOLT, FLANGEBOLT, FLANGE
-
8B16-F4841-10-00 CARRIER, FRONTCARRIER, FRONT
-
995812-08012-00 BOLT, FLANGEBOLT, FLANGE
-
1090119-08118-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
11B16-F4842-10-00 CARRIER, REARCARRIER, REAR
-
1295812-08014-00 BOLT, FLANGEBOLT, FLANGE
-
13B16-F482J-00-00 FRAME, CARRIER 1FRAME, CARRIER 1
-
1490119-10044-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
15B16-F482K-00-00 FRAME, CARRIER 2FRAME, CARRIER 2
-
1690119-10044-00 BOLT, WITH WASHERBOLT, WITH WASHER
