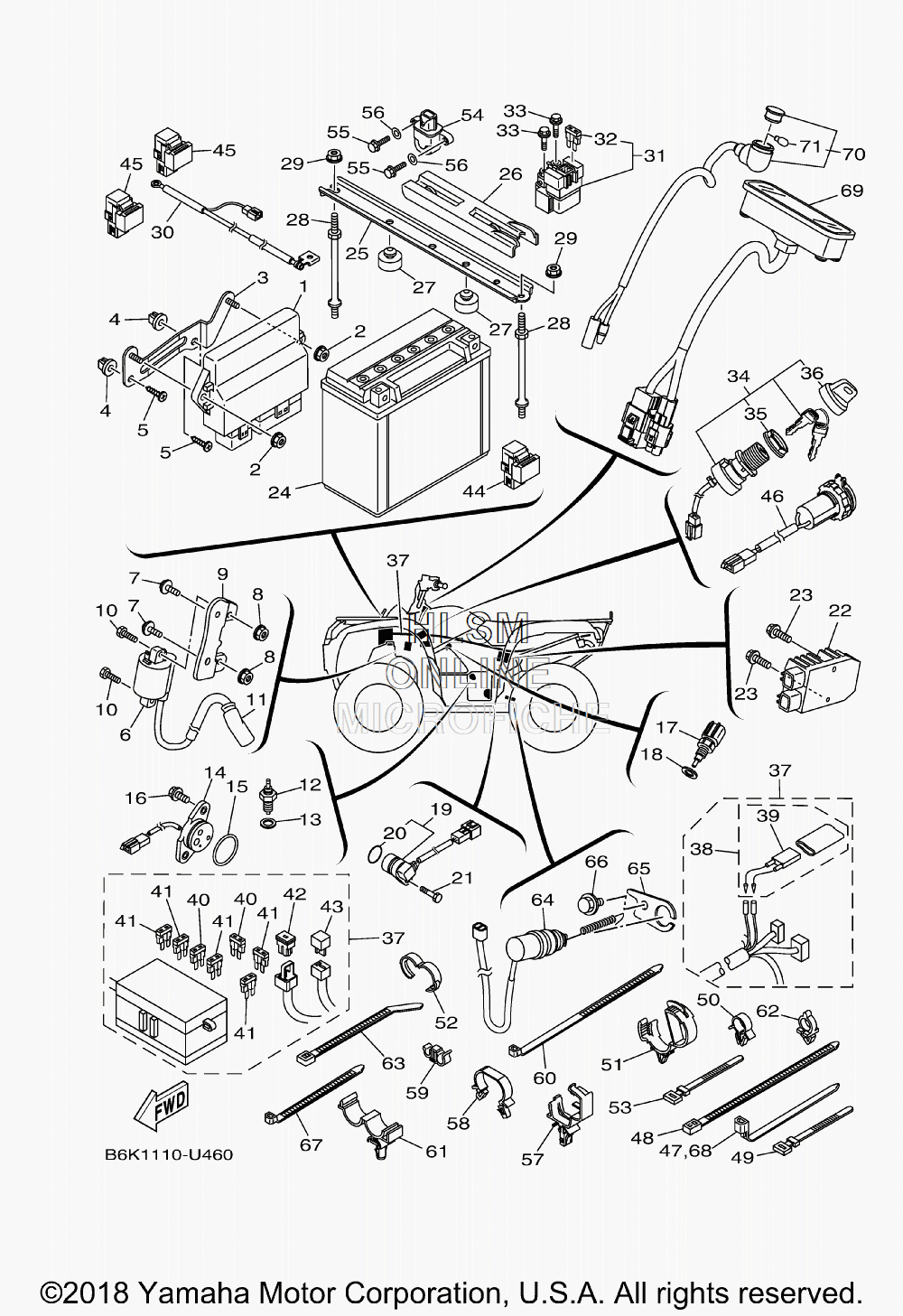

ELECTRICAL для Yamaha KODIAK 700 4WD - 2019 года выпуска
-
№АртикулНазвание
-
1B6K-8591A-00-00 ENGINE CONTROL UNIT ASSYENGINE CONTROL UNIT ASSY
-
295702-06500-00 NUT, FLANGENUT, FLANGE
-
3B4F-H5991-00-00 BRACKET, UNITBRACKET, UNIT
-
490338-08226-00 PLUGPLUG
-
597702-60520-00 SCREW, TAPPINGSCREW, TAPPING
-
61D7-82310-01-00 IGNITION COIL ASSYIGNITION COIL ASSY
-
797012-06020-00 BOLTBOLT
-
895602-06200-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
9B4F-82316-00-00 BRACKET, IGNITION COILBRACKET, IGNITION COIL
-
1090119-06209-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
115VK-82370-00-00 PLUG CAP ASSYPLUG CAP ASSY
-
123GB-82540-01-00 NEUTRAL SWITCH ASSYNEUTRAL SWITCH ASSY
-
1390430-10148-00 GASKETGASKET
-
143B4-82540-01-00 NEUTRAL SWITCH ASSYNEUTRAL SWITCH ASSY
-
1593210-29196-00 O-RINGO-RING
-
1690119-06137-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
175YP-85790-00-00 THERMOSENSOR ASSYTHERMOSENSOR ASSY
-
1890430-12202-00 GASKETGASKET
-
193B4-83755-00-00 SENSOR, SPEEDSENSOR, SPEED
-
204D9-81168-00-00 ...O-RING...O-RING
-
2191312-06020-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
221D7-81960-10-00 RECTIFIER & REGULATOR ASSYRECTIFIER & REGULATOR ASSY
-
2395812-06020-00 BOLT, FLANGEBOLT, FLANGE
-
245FU-H2100-20-00 BATTERY ASSY (YUASA YTX20L-BS)BATTERY ASSY (YUASA YTX20L-BS)
-
251HP-H2128-00-00 BRACKET, BATTERYBRACKET, BATTERY
-
263B4-82129-00-00 COVER, BATTERYCOVER, BATTERY
-
27B4F-F4741-00-00 PAD, SEATPAD, SEAT
-
283B4-82133-20-00 SCREW, FITTINGSCREW, FITTING
-
2995702-06500-00 NUT, FLANGENUT, FLANGE
-
3028P-82116-00-00 WIRE, MINUS LEADWIRE, MINUS LEAD
-
313B4-81940-00-00 STARTER RELAY ASSY (2768113-A)STARTER RELAY ASSY (2768113-A)
-
3236Y-82151-00-00 ...FUSE (15A-BLUE)...FUSE (15A-BLUE)
-
3395022-06008-00 BOLT, FLANGEBOLT, FLANGE
-
3428P-82510-01-00 MAIN SWITCH ASSYMAIN SWITCH ASSY
-
353HN-82569-00-00 ...NUT, MAIN SWITCH...NUT, MAIN SWITCH
-
363HN-82579-00-00 ...CAP, KEY...CAP, KEY
-
37B6K-82590-00-00 WIRE HARNESS ASSYWIRE HARNESS ASSY
-
384GB-82180-00-00 ...CIRCUIT BREAKER ASSY...CIRCUIT BREAKER ASSY
-
394GB-82560-00-00 ......THERMO SWITCH ASSY......THERMO SWITCH ASSY
-
405JJ-82151-20-00 ...FUSE (20A-BL)...FUSE (20A-BL)
-
415JJ-82151-30-00 ...FUSE (10A-BL)...FUSE (10A-BL)
-
425PS-82151-00-00 ...FUSE (40A)...FUSE (40A)
-
433WP-81980-00-00 ...DIODE ASSY...DIODE ASSY
-
445DM-81950-00-00 RELAY ASSY (G8HN-1C4T-DJ-Y52)RELAY ASSY (G8HN-1C4T-DJ-Y52)
-
458DM-81950-11-00 RELAY ASSY (8DM-11)RELAY ASSY (8DM-11)
-
461HP-H254B-10-00 TERMINAL COMP.TERMINAL COMP.
-
4790464-15195-00 CLAMPCLAMP
-
4890464-40825-00 CLAMPCLAMP
-
49437-83936-01-00 BAND, SWITCH CORDBAND, SWITCH CORD
-
5090464-15157-00 CLAMPCLAMP
-
5190464-20181-00 CLAMPCLAMP
-
5290464-16001-00 CLAMPCLAMP
-
53437-83936-11-00 BAND, SWITCH CORDBAND, SWITCH CORD
-
543B4-82576-10-00 SENSOR, LEAN ANGLESENSOR, LEAN ANGLE
-
5597002-05016-00 BOLTBOLT
-
5692902-05600-00 WASHER, PLATEWASHER, PLATE
-
5790464-20237-00 CLAMPCLAMP
-
5890464-24230-00 CLAMPCLAMP
-
5990464-09027-00 CLAMPCLAMP
-
6090464-12045-00 CLAMPCLAMP
-
6190464-16012-00 CLAMPCLAMP
-
6290464-10833-00 CLAMPCLAMP
-
6390465-10098-00 CLAMPCLAMP
-
6418P-82530-00-00 STOP SWITCH ASSYSTOP SWITCH ASSY
-
65B16-21441-00-00 BRACKET, STOP SWITCHBRACKET, STOP SWITCH
-
6695822-06010-00 BOLT, FLANGEBOLT, FLANGE
-
6790465-13M11-00 CLAMPCLAMP
-
6890464-13073-00 CLAMP (125.0X7.0)CLAMP (125.0X7.0)
-
69B16-83530-00-00 PILOT LIGHT ASSYPILOT LIGHT ASSY
-
70B16-83582-00-00 PILOT LIGHT ASSYPILOT LIGHT ASSY
-
715GH-83516-00-00 ...BULB (12V-1.7W T6.5)...BULB (12V-1.7W T6.5)
