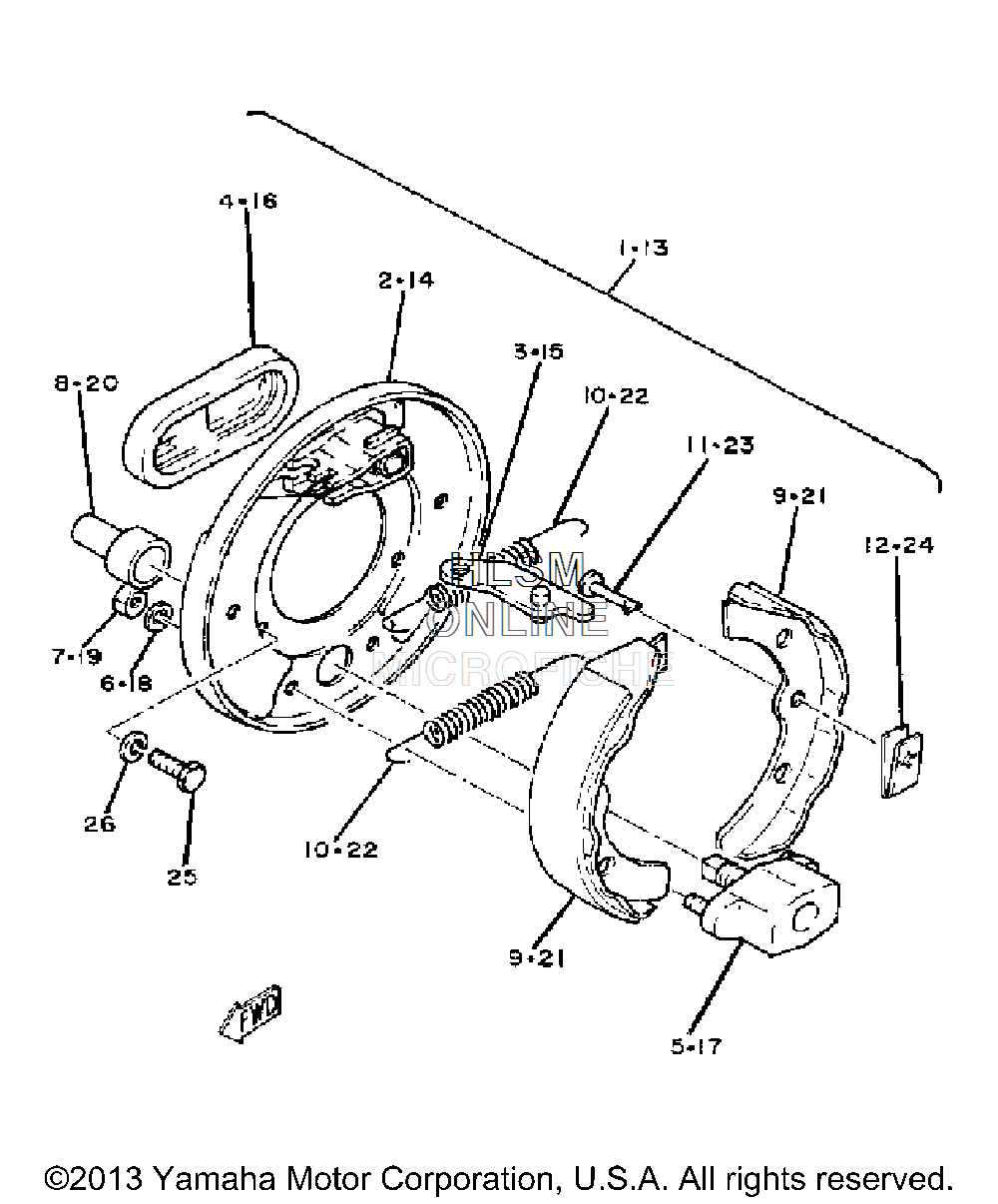

BRAKE - DRUM BRAKE для Yamaha GOLF CAR GAS [G1A] (J10) - 1979 года выпуска
-
№АртикулНазвание
-
1J17-27280-01-00 BACKING PLATE ASSEMBLY 1 (RH SIDE)BACKING PLATE ASSEMBLY 1 (RH SIDE)
-
2J10-27208-01-00 ...BCKG PLT SUB ASSEMBLY 1...BCKG PLT SUB ASSEMBLY 1
-
3J10-27207-00-00 ...BRAKE LEVER...BRAKE LEVER
-
4J10-27286-00-00 ...COVER, DUST...COVER, DUST
-
5J10-27270-00-00 ...ADJUSTER ASSEMBLY...ADJUSTER ASSEMBLY
-
692995-06100-00 ...WASHER, SPRING...WASHER, SPRING
-
795380-06600-00 ...NUT, HEXAGON...NUT, HEXAGON
-
8J10-27285-00-00 ...CAP...CAP
-
9J10-W2536-00-00 ...BRAKE SHOE SET...BRAKE SHOE SET
-
1090506-26191-00 ...SPRING, TENSION...SPRING, TENSION
-
11J10-27282-00-00 ...PIN, SHOE HOLD DOWN...PIN, SHOE HOLD DOWN
-
12J10-27281-00-00 ...SPRING, SHOE CLAMP...SPRING, SHOE CLAMP
-
13J17-27290-01-00 BACKING PLATE ASSEMBLY 2 (LH SIDE)BACKING PLATE ASSEMBLY 2 (LH SIDE)
-
14J10-27209-01-00 ...BCKG PLT SUB ASSEMBLY 2...BCKG PLT SUB ASSEMBLY 2
-
15J10-27207-00-00 ...BRAKE LEVER...BRAKE LEVER
-
16J10-27286-00-00 ...COVER, DUST...COVER, DUST
-
17J10-27270-00-00 ...ADJUSTER ASSEMBLY...ADJUSTER ASSEMBLY
-
1892995-06100-00 ...WASHER, SPRING...WASHER, SPRING
-
1995380-06600-00 ...NUT, HEXAGON...NUT, HEXAGON
-
20J10-27285-00-00 ...CAP...CAP
-
21J10-W2536-00-00 ...BRAKE SHOE SET...BRAKE SHOE SET
-
2290506-26191-00 ...SPRING, TENSION...SPRING, TENSION
-
23J10-27282-00-00 ...PIN, SHOE HOLD DOWN...PIN, SHOE HOLD DOWN
-
24J10-27281-00-00 ...SPRING, SHOE CLAMP...SPRING, SHOE CLAMP
-
2597313-08016-00 BOLT, HEXAGONBOLT, HEXAGON
-
2692990-08100-00 WASHER, SPRINGWASHER, SPRING
