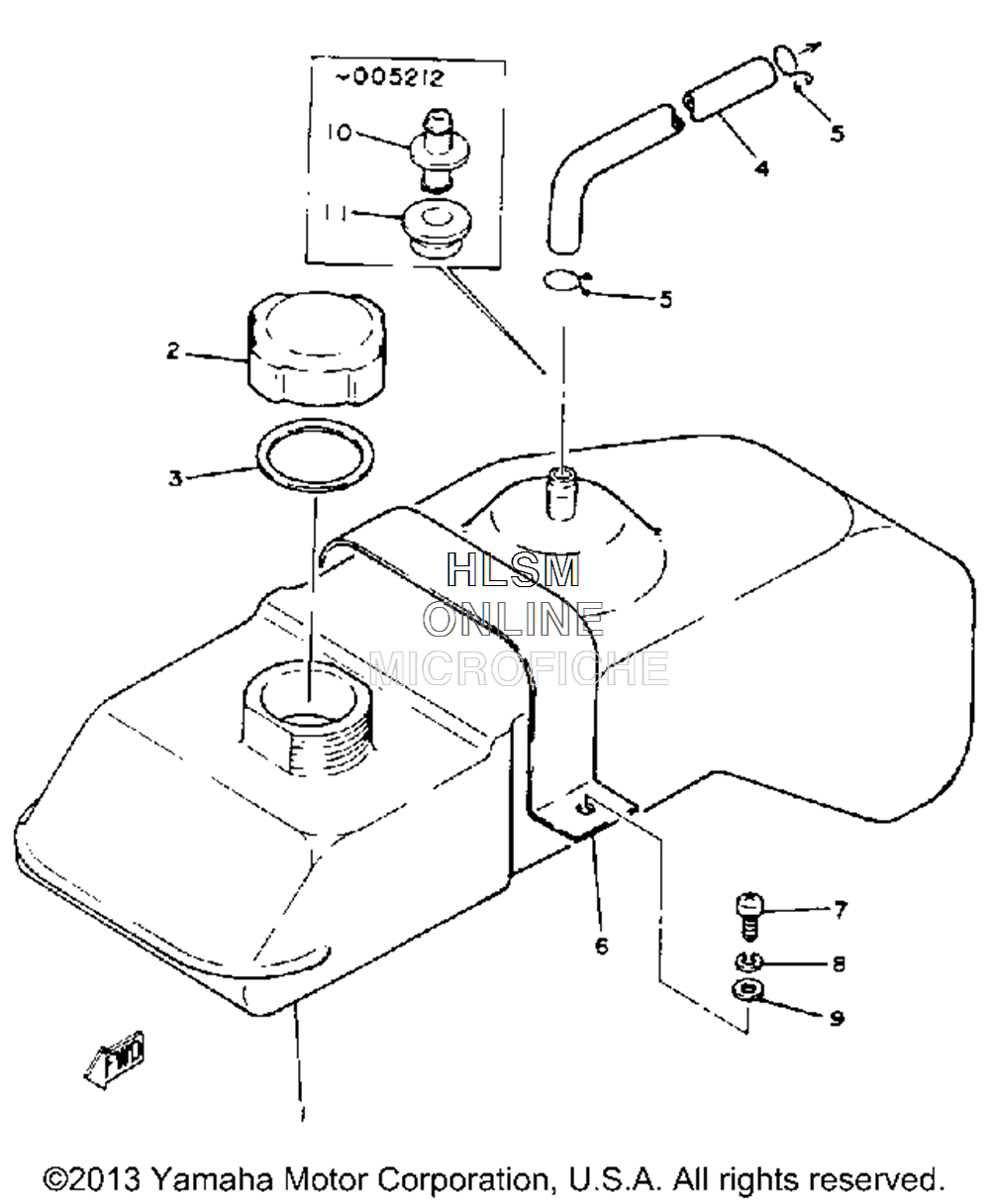

OIL TANK для Yamaha GOLF CAR GAS [G1A] (J10) - 1979 года выпуска
-
№АртикулНазвание
-
1J17-21751-00-00 TANK, OILTANK, OIL
-
2863-21771-00-00 BODY, CAPBODY, CAP
-
390430-31003-00 GASKETGASKET
-
491A20-07100-00 PIPE, OIL TNK BRTHRPIPE, OIL TNK BRTHR
-
590467-11009-00 CLIPCLIP
-
6J10-21776-00-00 BAND, TANK FITTINGBAND, TANK FITTING
-
798580-06012-00 SCREW, PAN HEADSCREW, PAN HEAD
-
892995-06100-00 WASHER, SPRINGWASHER, SPRING
-
992901-06600-00 WASHERWASHER
-
10J10-21753-00-00 BOSS, CONNECTOR (NOT AVAILABLE)BOSS, CONNECTOR (NOT AVAILABLE)
-
11J10-21773-00-00 GROMMETGROMMET
