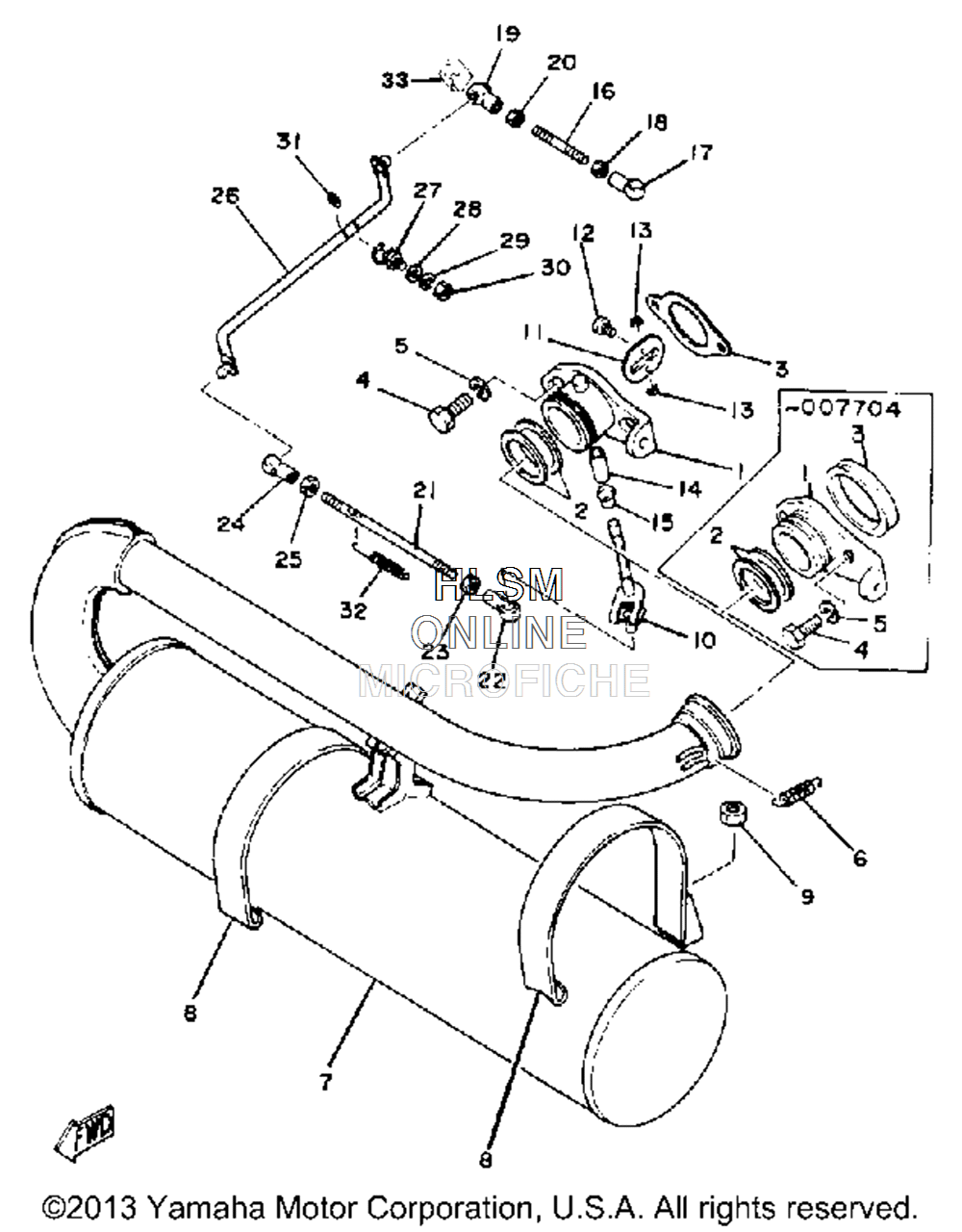

EXHAUST для Yamaha GOLF CAR GAS [G1A] (J10) - 1979 года выпуска
-
№АртикулНазвание
-
1J10-14612-01-00 NUT, RING (NOT AVAILABLE) (J10-007705~)NUT, RING (NOT AVAILABLE) (J10-007705~)
-
1J10-14612-00-00 NUT, RING (NOT AVAILABLE)NUT, RING (NOT AVAILABLE)
-
2888-14633-00-00 RINGRING
-
38F3-14613-00-00 GASKET, EXAUST PIPEGASKET, EXAUST PIPE
-
3J10-14613-00-00 GASKET, EXAUST PIPE (J10-007705~)GASKET, EXAUST PIPE (J10-007705~)
-
497013-08025-00 BOLTBOLT
-
592990-08100-00 WASHER, SPRINGWASHER, SPRING
-
690506-20074-00 SPRING, TENSIONSPRING, TENSION
-
7J24-14610-00-00 ...EXHAUST PIPE ASSEMBLY L (J10-007705~)...EXHAUST PIPE ASSEMBLY L (J10-007705~)
-
8J10-14715-01-00 BAND, MUFFLERBAND, MUFFLER
-
995611-08100-00 NUT, UNUT, U
-
10J10-14813-01-00 SHAFT, BUTTERFLY (J10-007705~)SHAFT, BUTTERFLY (J10-007705~)
-
11J10-14812-02-00 ...VALVE, BUTTERFLY (J10-007705~)...VALVE, BUTTERFLY (J10-007705~)
-
1298580-03008-00 SCREW, PAN HEADSCREW, PAN HEAD
-
1399080-05600-00 CIRCLIP (J10-007705~)CIRCLIP (J10-007705~)
-
14J10-14815-00-00 GASKET (J10-007705~)GASKET (J10-007705~)
-
15J10-14818-00-00 COVER, GASKET (J10-007705~)COVER, GASKET (J10-007705~)
-
16J10-14836-00-00 ROD (J10-007705~)ROD (J10-007705~)
-
17J10-14833-00-00 JOINT 0 1 (J10-007705~)JOINT 0 1 (J10-007705~)
-
1895311-05700-00 NUT (J10-007705~)NUT (J10-007705~)
-
19J10-14864-00-00 JOINT 0 1 (J10-007705~)JOINT 0 1 (J10-007705~)
-
2090170-05190-00 NUT, HEXAGON (J10-007705~)NUT, HEXAGON (J10-007705~)
-
21J10-14837-00-00 CONNECTOR, ROD (J10-007705~)CONNECTOR, ROD (J10-007705~)
-
22J10-14833-00-00 JOINT 0 1 (J10-007705~)JOINT 0 1 (J10-007705~)
-
2395311-05700-00 NUT (J10-007705~)NUT (J10-007705~)
-
24J10-14864-00-00 JOINT 0 1 (J10-007705~)JOINT 0 1 (J10-007705~)
-
2590170-05190-00 NUT, HEXAGON (J10-007705~)NUT, HEXAGON (J10-007705~)
-
26J10-14802-00-00 CONNECTER COMP (J10-007705~)CONNECTER COMP (J10-007705~)
-
2790464-07034-00 CLAMPCLAMP
-
2892901-05600-00 WASHER (J10-007705~)WASHER (J10-007705~)
-
2992990-05100-00 WASHER, SPRING (J10-007705~)WASHER, SPRING (J10-007705~)
-
3095380-05600-00 NUT (J10-007705~)NUT (J10-007705~)
-
3199009-06600-00 CIRCLIP (J10-007705~)CIRCLIP (J10-007705~)
-
3290506-06201-00 SPRING, TENSION (J10-007705~)SPRING, TENSION (J10-007705~)
-
3390468-05112-00 CLIPCLIP
