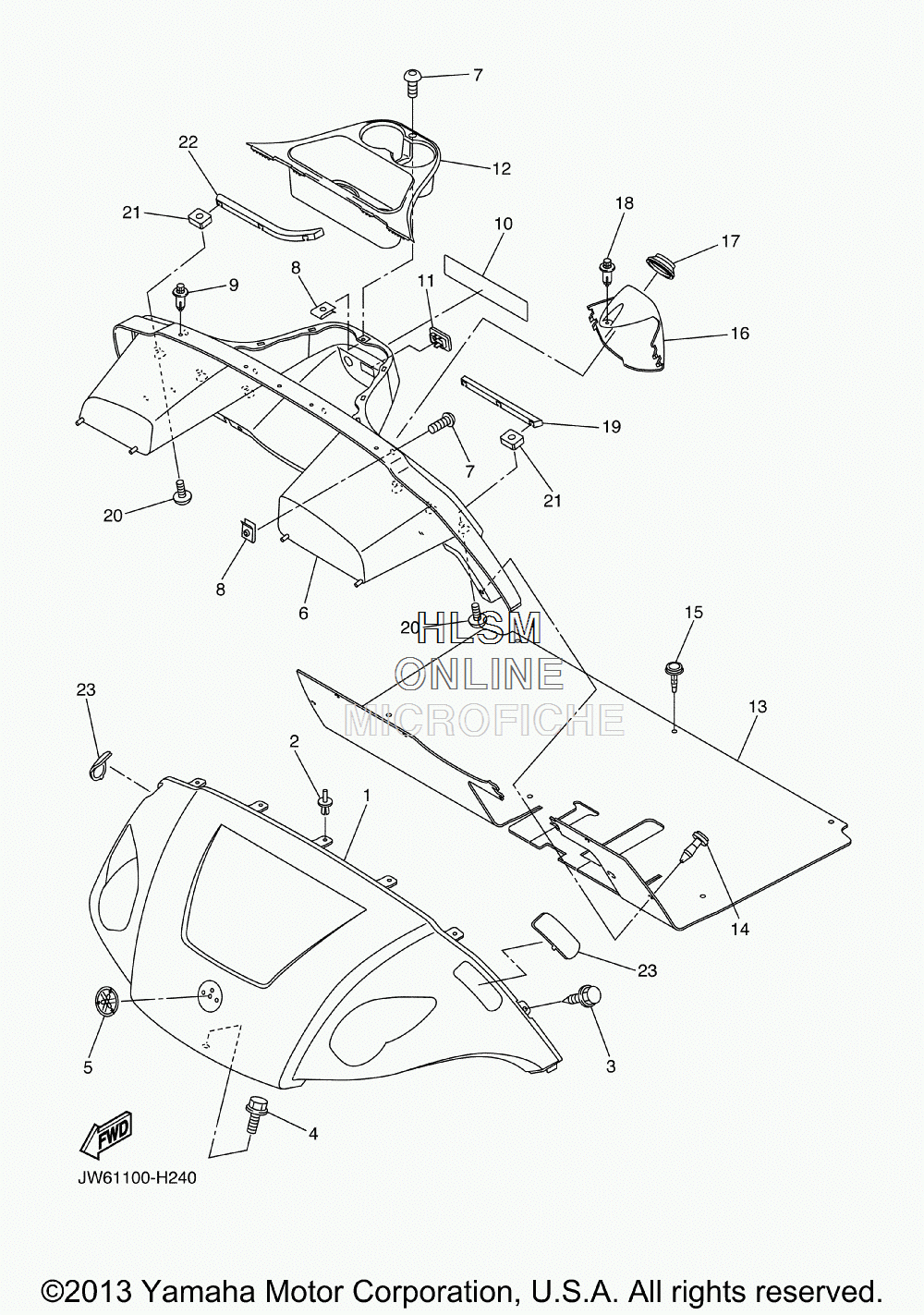

BODY для Yamaha GOLF CAR [YTF1] (JW61) - 2009 года выпуска
-
№АртикулНазвание
-
1JW6-K8115-10-00 COWL, FRONTCOWL, FRONT
-
290267-63047-00 RIVET, BLINDRIVET, BLIND
-
3JW1-F3396-00-00 SCREW, SPECIALSCREW, SPECIAL
-
490105-06870-00 BOLT, FLANGEBOLT, FLANGE
-
5JW1-F4161-00-00 EMBLEM 1EMBLEM 1
-
6JW1-K8114-01-00 PANEL, FRONTPANEL, FRONT
-
790111-05805-00 BOLT,HEX. SOCKET BUTTONBOLT,HEX. SOCKET BUTTON
-
890183-05008-00 NUT, SPRINGNUT, SPRING
-
990269-07001-00 RIVETRIVET
-
10JW6-K7768-01-00 LABEL, WARNINGLABEL, WARNING
-
11JW1-F312G-00-00 PLUGPLUG
-
12JW6-K835E-00-00 HOLDER, BEVERAGEHOLDER, BEVERAGE
-
13JW6-K8233-00-00 MAT, MAIN FLOOR 3MAT, MAIN FLOOR 3
-
14JW1-K7329-00-00 RIVETRIVET
-
15JW1-K7449-00-00 RIVET 1RIVET 1
-
16JW1-K8273-00-00 COVER, HOLECOVER, HOLE
-
17JW1-K8245-00-00 SEAL 1SEAL 1
-
1890269-06804-00 RIVETRIVET
-
19JW1-K8261-00-00 PLATE, BODY PROTECT 1PLATE, BODY PROTECT 1
-
2090110-06102-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
2190173-06001-00 NUT, SQUARENUT, SQUARE
-
22JW1-K8262-00-00 PLATE, BODY PROTECT 2PLATE, BODY PROTECT 2
-
23JW1-K832H-00-00 GROMMET, ROOF SUPPORT 3GROMMET, ROOF SUPPORT 3
