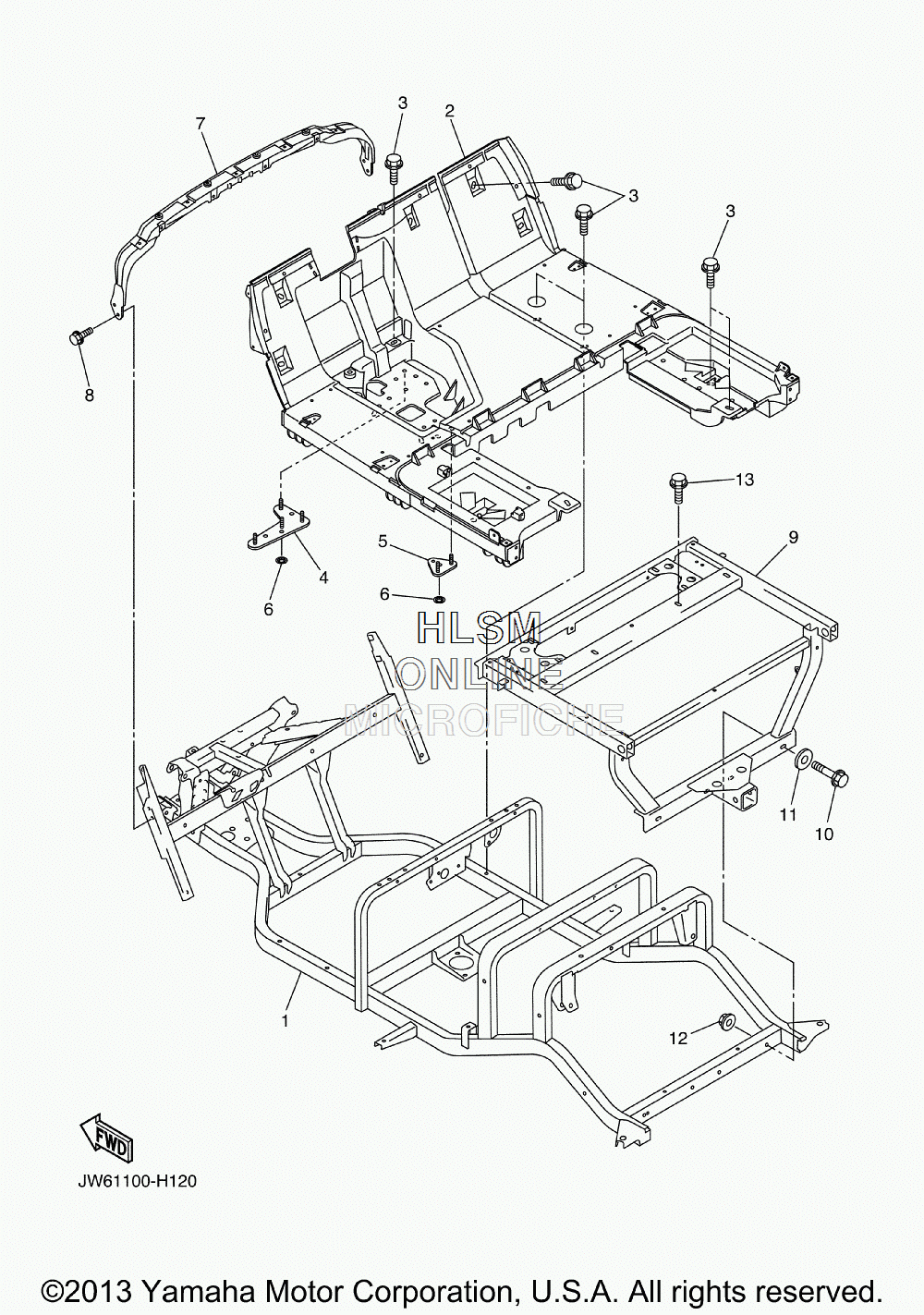

FRAME для Yamaha GOLF CAR [YTF1] (JW61) - 2009 года выпуска
-
№АртикулНазвание
-
1JW6-F2501-00-00 FRAME COMP.FRAME COMP.
-
2JW7-F7411-00-00 FOOTREST 1FOOTREST 1
-
3JW1-F1738-00-00 BOLTBOLT
-
4JW1-F2545-01-00 SUPPORT, PEDAL BRACKETSUPPORT, PEDAL BRACKET
-
5JW1-F2588-01-00 BRACKET, BRAKE PEDALBRACKET, BRAKE PEDAL
-
690183-08800-00 NUT, SPRINGNUT, SPRING
-
7JW1-F258G-02-00 BRACKET, DASH UPPER 1BRACKET, DASH UPPER 1
-
890105-06831-00 BOLT, FLANGEBOLT, FLANGE
-
9JW6-F2504-00-00 RR. SUB-FRAME COMP.RR. SUB-FRAME COMP.
-
1090105-088A7-00 BOLT, FLANGEBOLT, FLANGE
-
1190201-08843-00 WASHER, PLATEWASHER, PLATE
-
1295602-08200-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
13JW1-F1738-00-00 BOLTBOLT
