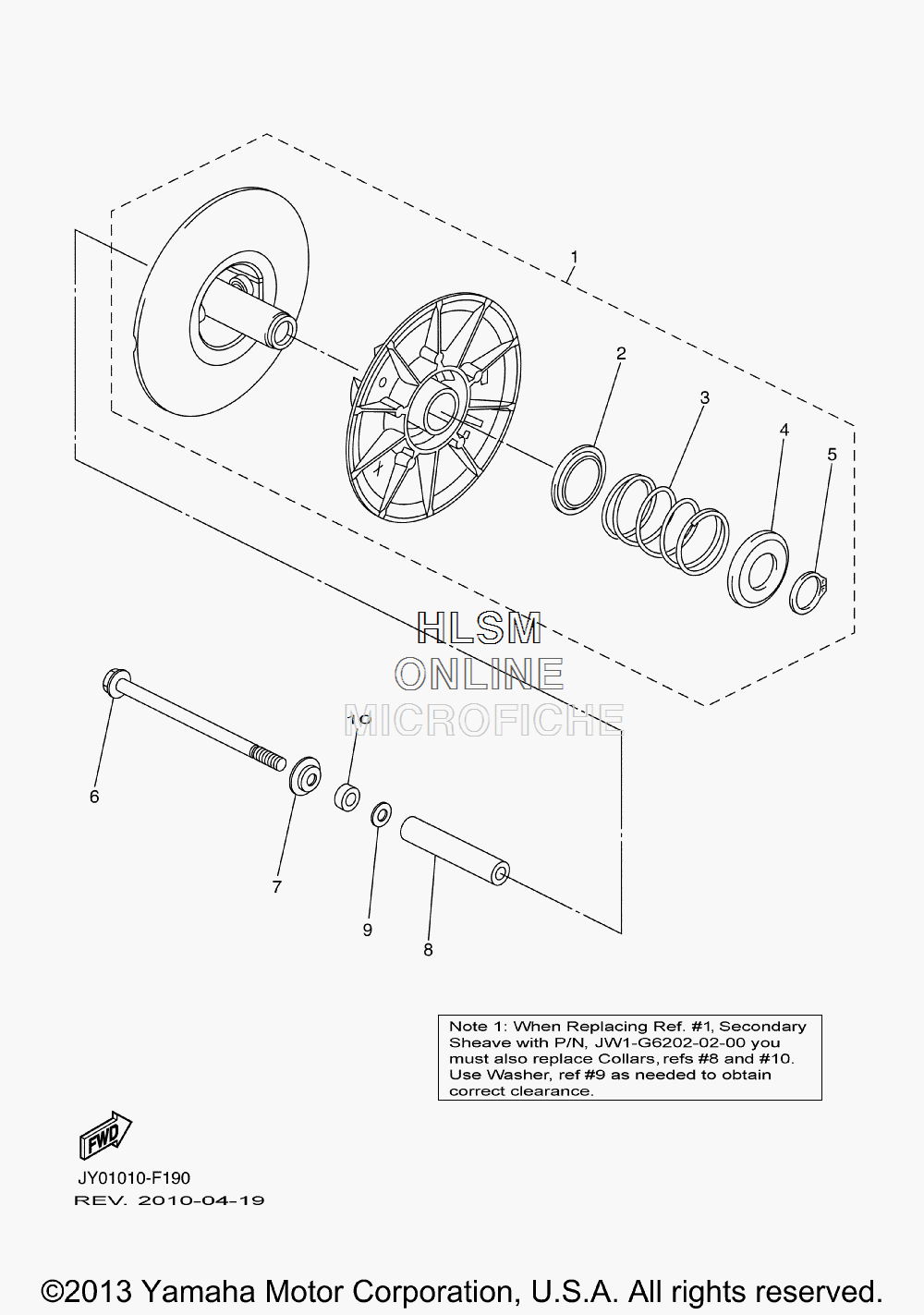

SECONDARY SHEAVE для Yamaha GOLF CAR [YTF1] (JW61) - 2009 года выпуска
-
№АртикулНазвание
-
1JW1-G6202-02-00 SECONDARY SHEAVE ASSY (SEE NOTE 1)SECONDARY SHEAVE ASSY (SEE NOTE 1)
-
2JW1-G6244-00-00 ...SEAT, SPRING...SEAT, SPRING
-
3JW1-G6276-00-00 ...SPRING, CLUTCH 2...SPRING, CLUTCH 2
-
4JW1-G6280-00-00 ...SECONDARY SPRING SEAT COMP....SECONDARY SPRING SEAT COMP.
-
5JW1-F5415-00-00 ...CIRCLIP...CIRCLIP
-
690105-08007-00 BOLT, FLANGEBOLT, FLANGE
-
790209-08018-00 WASHERWASHER
-
8JW1-G2758-01-00 COLLARCOLLAR
-
992902-08200-00 WASHER (OPT)WASHER (OPT)
-
10JW1-G2834-00-00 COLLARCOLLAR
