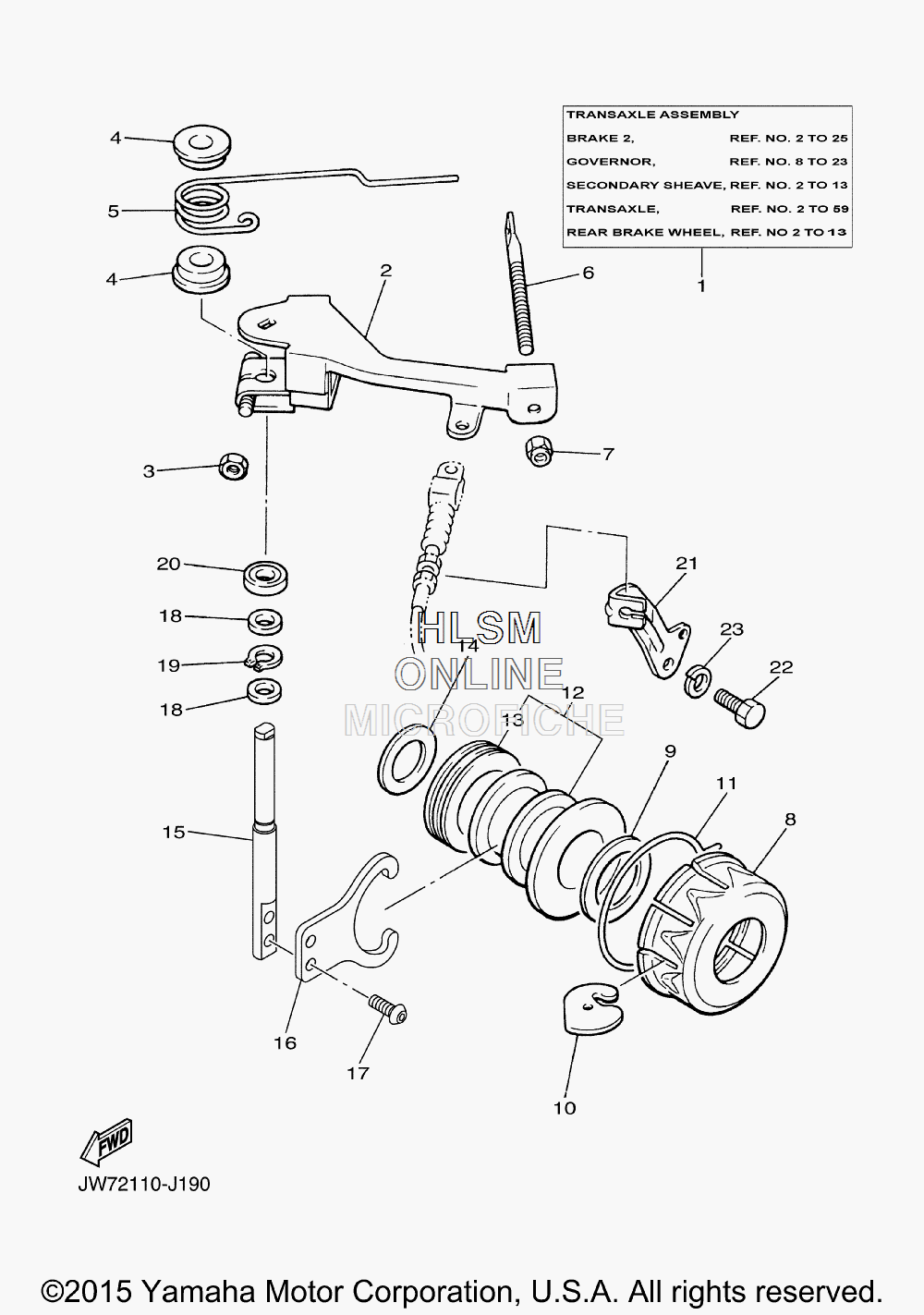

GOVERNOR для Yamaha SPECIALTY VEHICLE FAIRWAY LOUNGE [YTF2XPSVB] (JD64) - 2011 года выпуска
-
№АртикулНазвание
-
1JW7-46300-02-00 TRANS AXLE ASSYTRANS AXLE ASSY
-
2J38-27951-00-00 LEVER, SPEED LIMITERLEVER, SPEED LIMITER
-
395302-06600-00 NUT, HEXAGONNUT, HEXAGON
-
490386-08141-00 BUSHBUSH
-
590508-40678-00 SPRING, TORSIONSPRING, TORSION
-
6J38-27959-00-00 SCREW, ADJUSTINGSCREW, ADJUSTING
-
795602-06200-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
8J10-27912-01-00 RETAINERRETAINER
-
990387-21690-00 COLLARCOLLAR
-
10J10-27913-00-00 WEIGHTWEIGHT
-
11J10-27911-00-00 HOLDERHOLDER
-
12JN7-27927-01-00 LIFTERLIFTER
-
1393342-22518-00 ...BEARING...BEARING
-
1490201-20275-00 WASHER, PLATEWASHER, PLATE
-
15JW7-27921-00-00 SHAFT, GOVERNORSHAFT, GOVERNOR
-
16JW7-27922-00-00 FORK, GOVERNORFORK, GOVERNOR
-
1792012-06010-00 BOLT, BUTTON HEADBOLT, BUTTON HEAD
-
1890202-08110-00 WASHER, PLATEWASHER, PLATE
-
1999001-06600-00 CIRCLIPCIRCLIP
-
2093104-08058-00 OIL SEALOIL SEAL
-
21JN7-27982-00-00 BRACKET, WIREBRACKET, WIRE
-
2297002-08016-00 BOLTBOLT
-
2392902-08100-00 WASHER, SPRINGWASHER, SPRING
