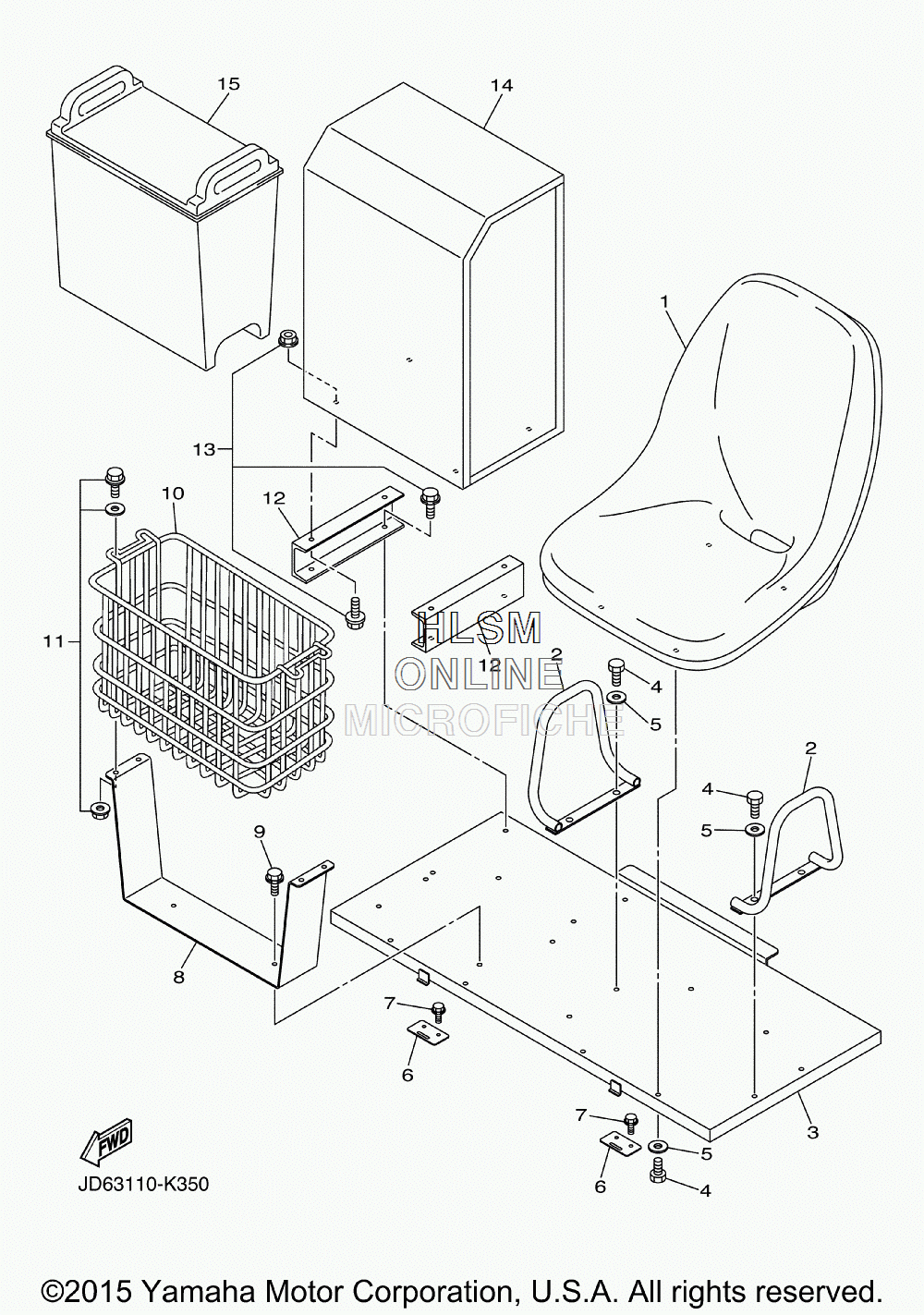

SEAT W/ LUGGAGE RACK для Yamaha SPECIALTY VEHICLE FAIRWAY LOUNGE [YTF2XPSVB] (JD64) - 2011 года выпуска
-
№АртикулНазвание
-
1JD6-F4710-00-00 SINGLE SEAT ASSYSINGLE SEAT ASSY
-
2JD6-F474W-00-00 ASSIST,GRIP 2ASSIST,GRIP 2
-
3JD6-F475B-00-00 SEAT BASE, UNDERSEAT BASE, UNDER
-
4JD6-F4717-00-00 BOLT, SEAT FITTINGBOLT, SEAT FITTING
-
5JD6-F4746-00-00 WASHER, SEATWASHER, SEAT
-
6JW1-K8427-00-00 HINGE, SEAT 2HINGE, SEAT 2
-
790163-06802-00 SCREW, TAPPINGSCREW, TAPPING
-
8JD6-F4868-00-00 STAY, BASKETSTAY, BASKET
-
995812-08016-00 BOLT, FLANGEBOLT, FLANGE
-
10JN6-K8340-00-00 LUGGAGE RACK ASSY., REARLUGGAGE RACK ASSY., REAR
-
11JD6-F48B2-00-00 HARDWARE KIT, LUGGAGE RACKHARDWARE KIT, LUGGAGE RACK
-
12JD6-K8166-00-00 PLATE, RETAINERPLATE, RETAINER
-
13JD6-F84BA-00-00 HARDWARE KIT, SIDE CASEHARDWARE KIT, SIDE CASE
-
14JD6-K838A-00-00 RETAINER 1RETAINER 1
-
15JD6-K835B-00-00 HOLDER, BEVERAGEHOLDER, BEVERAGE
