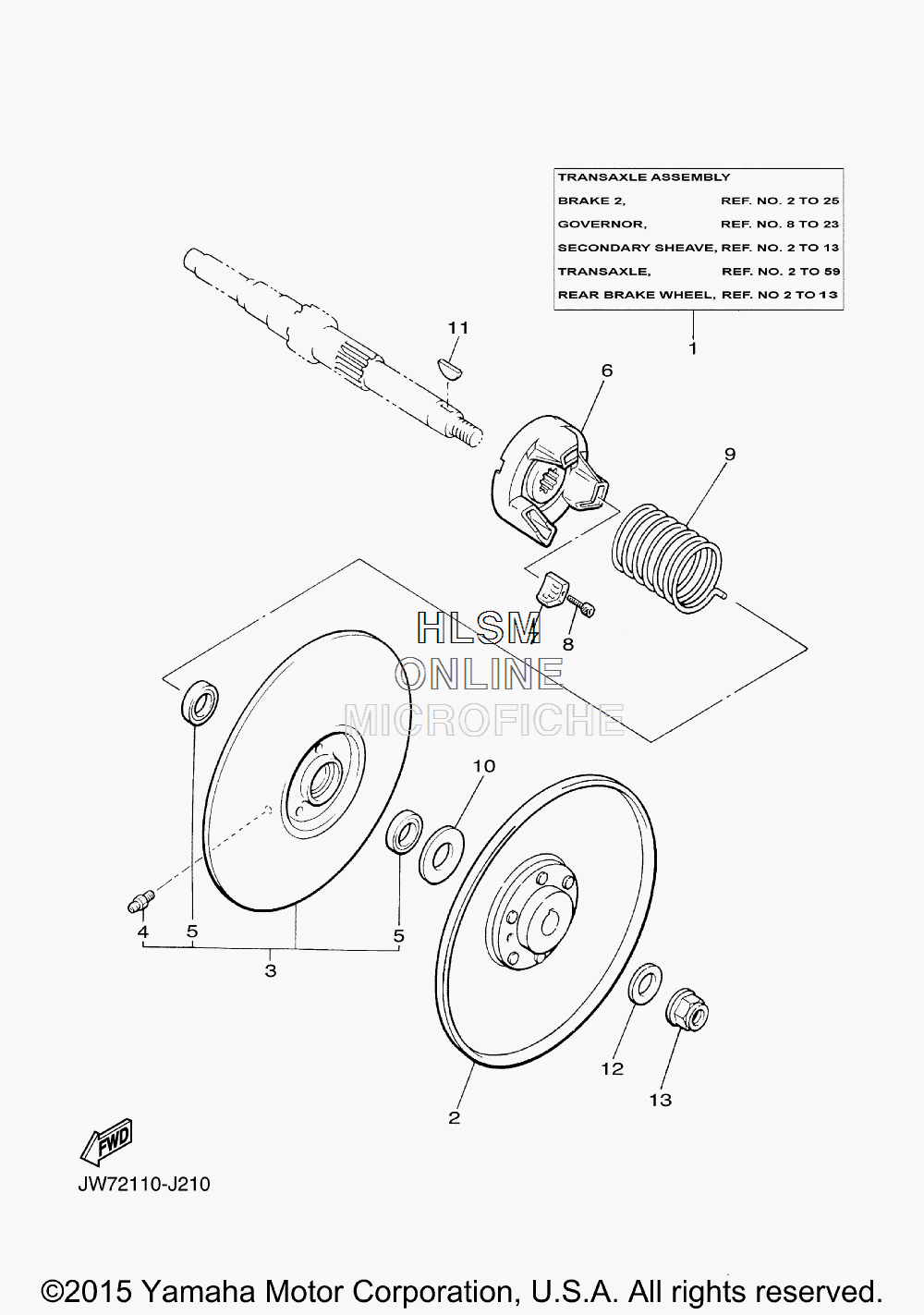

SECONDARY SHEAVE для Yamaha SPECIALTY VEHICLE FAIRWAY LOUNGE [YTF2XPSVB] (JD64) - 2011 года выпуска
-
№АртикулНазвание
-
1JW7-46300-02-00 TRANS AXLE ASSYTRANS AXLE ASSY
-
2J38-46260-00-00 SECONDARY FIXED SHEAVE COMP.SECONDARY FIXED SHEAVE COMP.
-
3JR7-46270-00-00 SECONDARY SLIDING SHEAVE COMP.SECONDARY SLIDING SHEAVE COMP.
-
493700-06004-00 ...NIPPLE, GREASE...NIPPLE, GREASE
-
593109-20069-00 ...OIL SEAL...OIL SEAL
-
6JH2-46284-00-00 SEAT, SECONDARY SPRINGSEAT, SECONDARY SPRING
-
7JF7-17688-00-00 SHOE, RAMPSHOE, RAMP
-
891317-04025-00 BOLTBOLT
-
990508-45679-00 SPRING, TORSIONSPRING, TORSION
-
1090202-20130-00 WASHER, PLATEWASHER, PLATE
-
1190280-05022-00 KEY, WOODRUFFKEY, WOODRUFF
-
1290201-12588-00 WASHER, PLATEWASHER, PLATE
-
1395602-12200-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
