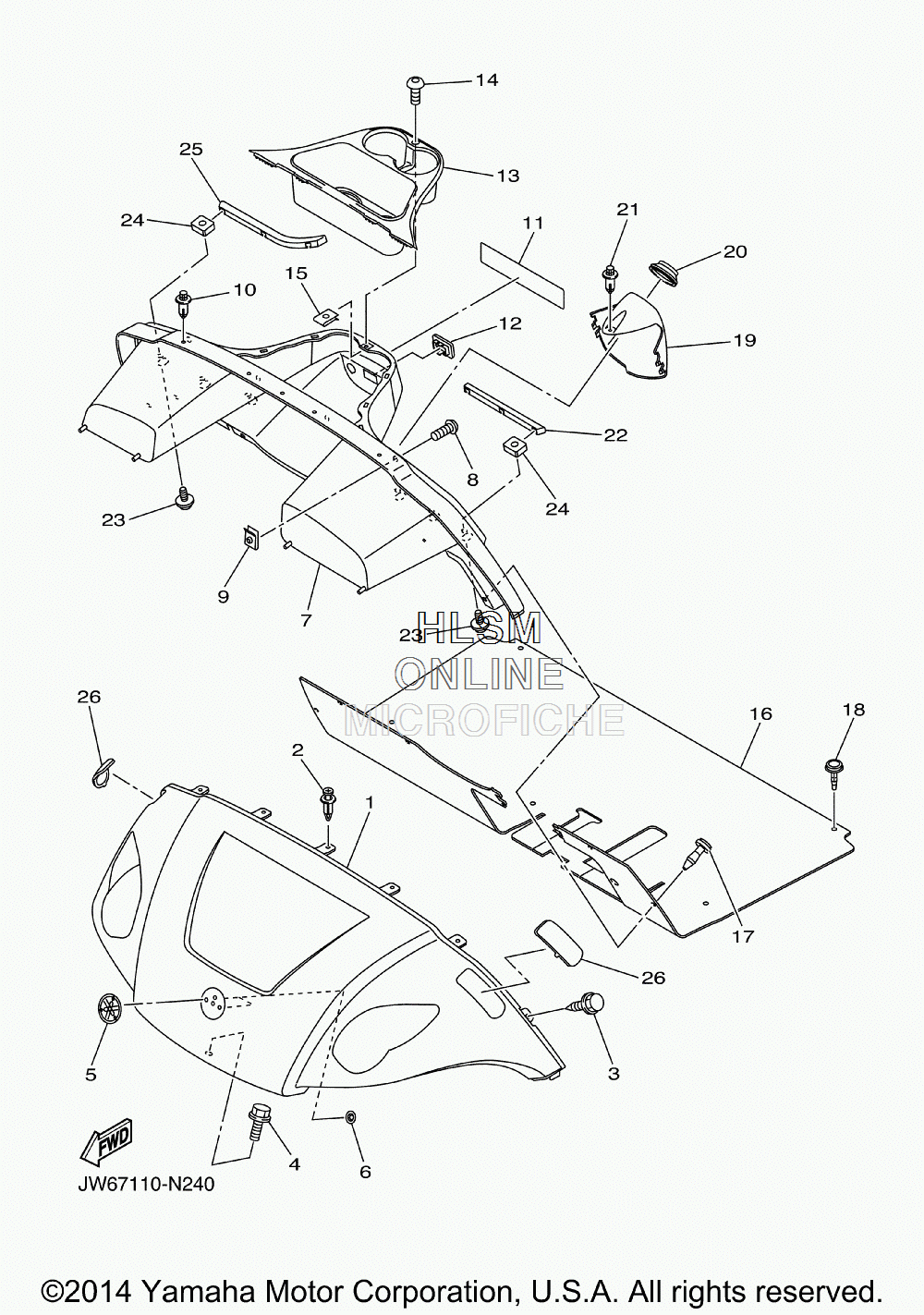

BODY - FRONT для Yamaha ADVENTURER ONE [YTF1AX4F] (JW67) - 2014 года выпуска
-
№АртикулНазвание
-
1JW6-K8115-10-00 COWL, FRONT (VDGS1 - GREEN/EMERALD)COWL, FRONT (VDGS1 - GREEN/EMERALD)
-
290269-06800-00 RIVETRIVET
-
3JW1-F3396-01-00 SCREW, SPECIALSCREW, SPECIAL
-
490105-06870-00 BOLT, FLANGEBOLT, FLANGE
-
5JW1-F4161-10-00 EMBLEM 1EMBLEM 1
-
690183-06071-00 NUT, SPRINGNUT, SPRING
-
7JC0-K8114-00-00 PANEL, FRONTPANEL, FRONT
-
890111-05805-00 BOLT,HEX. SOCKET BUTTONBOLT,HEX. SOCKET BUTTON
-
990183-05008-00 NUT, SPRINGNUT, SPRING
-
1090269-07001-00 RIVETRIVET
-
11JW6-K7768-30-00 LABEL, WARNING 8LABEL, WARNING 8
-
12JW1-F312G-00-00 PLUGPLUG
-
13JW6-K835E-00-00 HOLDER, BEVERAGEHOLDER, BEVERAGE
-
1490111-05805-00 BOLT,HEX. SOCKET BUTTONBOLT,HEX. SOCKET BUTTON
-
1590183-05008-00 NUT, SPRINGNUT, SPRING
-
16JW6-K8233-10-00 MAT, MAIN FLOOR 3MAT, MAIN FLOOR 3
-
1790269-09003-00 RIVETRIVET
-
1890269-09003-00 RIVETRIVET
-
19JW1-K8273-00-00 COVER, HOLECOVER, HOLE
-
20JW1-K8245-00-00 SEAL 1SEAL 1
-
2190269-06804-00 RIVETRIVET
-
22JW1-K8261-00-00 PLATE, BODY PROTECT 1PLATE, BODY PROTECT 1
-
2390119-06244-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
2490173-06010-00 NUT, SQUARENUT, SQUARE
-
25JW1-K8262-00-00 PLATE, BODY PROTECT 2PLATE, BODY PROTECT 2
-
26JW1-K832H-00-00 GROMMET, ROOF SUPPORT 3GROMMET, ROOF SUPPORT 3
