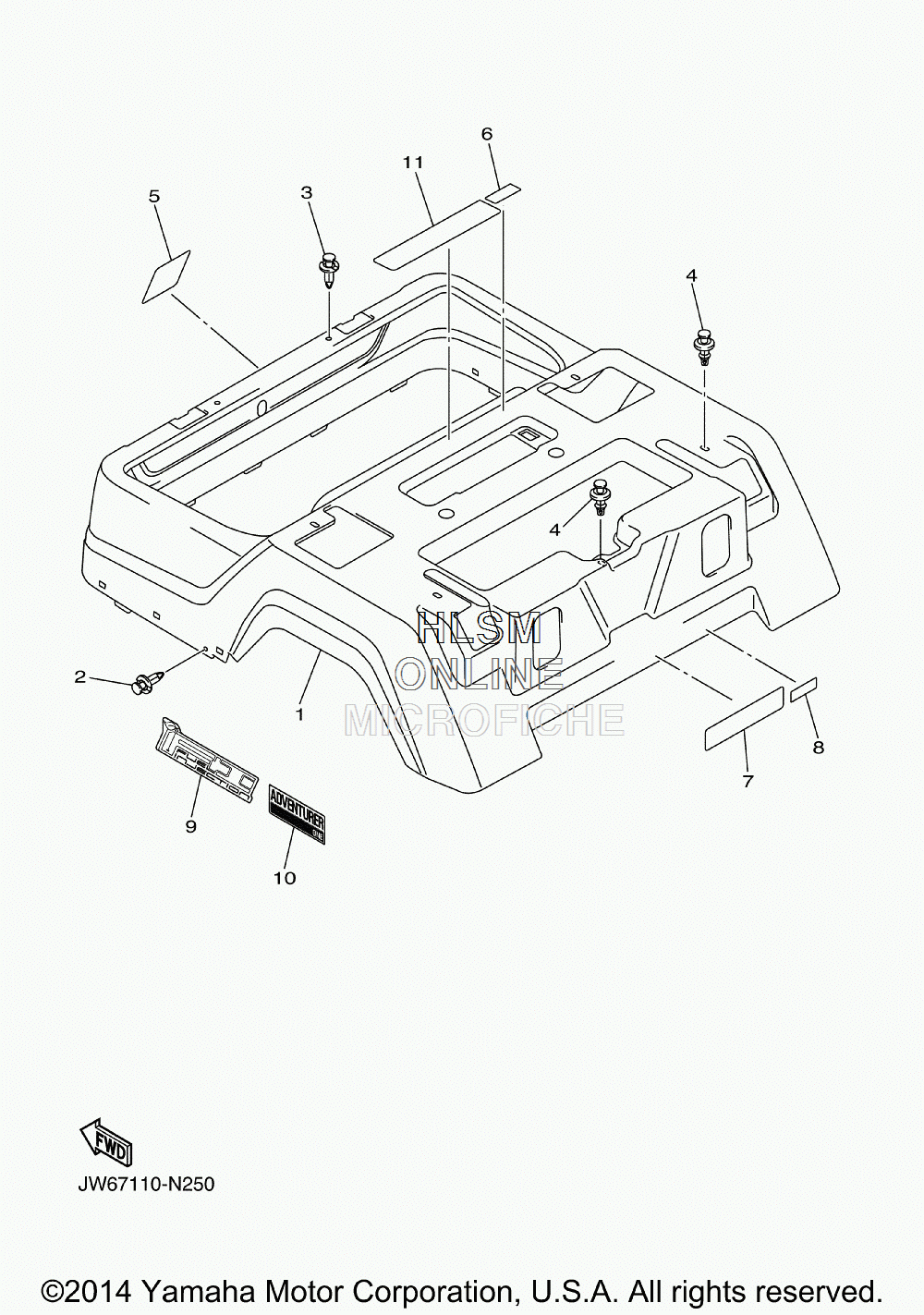

BODY - REAR для Yamaha ADVENTURER ONE [YTF1AX4F] (JW67) - 2014 года выпуска
-
№АртикулНазвание
-
1JW6-K8142-20-00 PANEL, REAR BODY (VDGS1 - GREEN/EMERALD)PANEL, REAR BODY (VDGS1 - GREEN/EMERALD)
-
290269-06804-00 RIVETRIVET
-
390269-08813-00 RIVETRIVET
-
4JW6-K7449-00-00 RIVET 1RIVET 1
-
5JW1-K7741-00-00 INDICATOR 1INDICATOR 1
-
6JN6-H2377-00-00 LABELLABEL
-
7JW6-F1696-30-00 LABEL, CAUTIONLABEL, CAUTION
-
8JW6-K7765-00-00 LABEL, WARNING 5LABEL, WARNING 5
-
9JC2-F1781-00-00 EMBLEM 1 (STD)EMBLEM 1 (STD)
-
10JW6-F1781-00-00 EMBLEM 1 (OPT)EMBLEM 1 (OPT)
-
11JW6-K8297-00-00 PLATE, CAUTION 1PLATE, CAUTION 1
