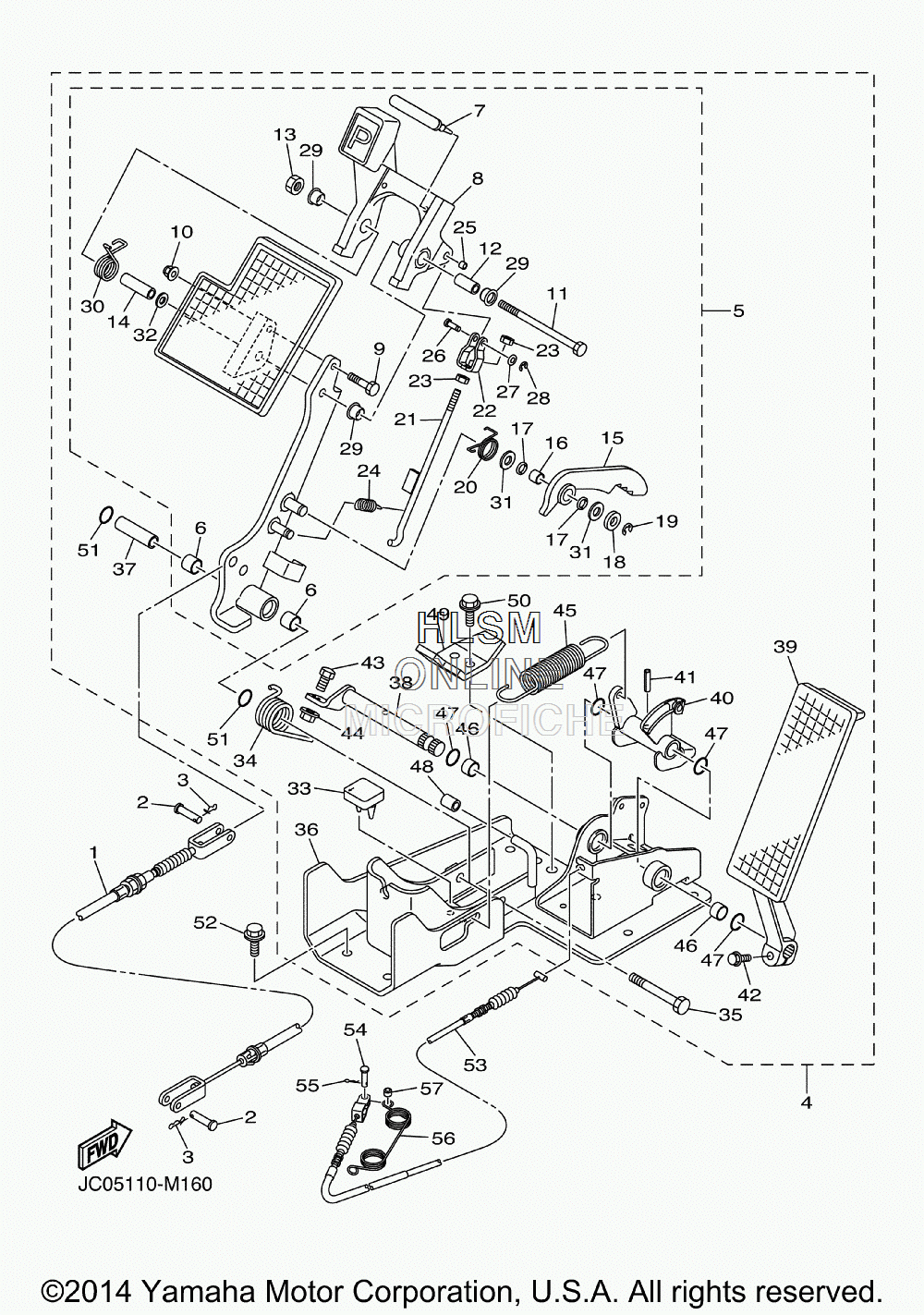

PEDAL ASSEMBLY для Yamaha ADVENTURER ONE [YTF1AX4F] (JW67) - 2014 года выпуска
-
№АртикулНазвание
-
1JW1-F6341-31-00 WIRE, BRAKE 1WIRE, BRAKE 1
-
291702-10028-00 PIN, CLEVISPIN, CLEVIS
-
390468-20196-00 CLIPCLIP
-
4JW8-F7850-21-00 PEDAL ASSY (L.H)PEDAL ASSY (L.H)
-
5JW9-F7200-21-00 ...PEDAL, BRAKE...PEDAL, BRAKE
-
6JW8-F7814-20-00 ...BUSH, PEDAL...BUSH, PEDAL
-
7JW9-F5672-00-00 ......PAD, PARKING PEDAL......PAD, PARKING PEDAL
-
8JW9-F5671-00-00 ......PEDAL, PARKING BRAKE......PEDAL, PARKING BRAKE
-
9JW8-F7117-00-00 ......BOLT, MAIN STAND......BOLT, MAIN STAND
-
10JW8-F8363-00-00 ......NUT......NUT
-
11JW8-F7416-00-00 ......BOLT, FOOTREST......BOLT, FOOTREST
-
12JW8-F639N-00-00 ......COLLAR......COLLAR
-
13JW8-F7218-00-00 ......NUT......NUT
-
14JW8-F7113-00-00 ......COLLAR, MAIN STAND......COLLAR, MAIN STAND
-
15JW9-F5666-00-00 ......SECTOR, PARKING BRAKE......SECTOR, PARKING BRAKE
-
16JW8-F7121-00-00 ......BUSH......BUSH
-
17JW9-F7221-00-00 ......SEAL, SHAFT......SEAL, SHAFT
-
18JW8-F7322-00-00 ......WASHER......WASHER
-
19JW8-F3183-00-00 ......CIRCLIP......CIRCLIP
-
20JW8-F7426-01-00 ......SPRING, RETURN......SPRING, RETURN
-
21JW9-F7231-10-00 ......ROD, BRAKE......ROD, BRAKE
-
22JW9-F7232-00-00 ......END, ROD 2......END, ROD 2
-
23JW8-F7318-00-00 ......NUT......NUT
-
24JW8-F6314-00-00 ......SPRING......SPRING
-
25JW8-F639L-00-00 ......BUSH 1......BUSH 1
-
26JW9-F7228-00-00 ......PIN, JOINT......PIN, JOINT
-
27JW8-F8323-00-00 ......WASHER, LEG SHIELD......WASHER, LEG SHIELD
-
28JW8-F5415-00-00 ......CIRCLIP......CIRCLIP
-
2990386-12800-00 ......BUSH......BUSH
-
30JW8-F7825-01-00 ......SPRING, RETURN......SPRING, RETURN
