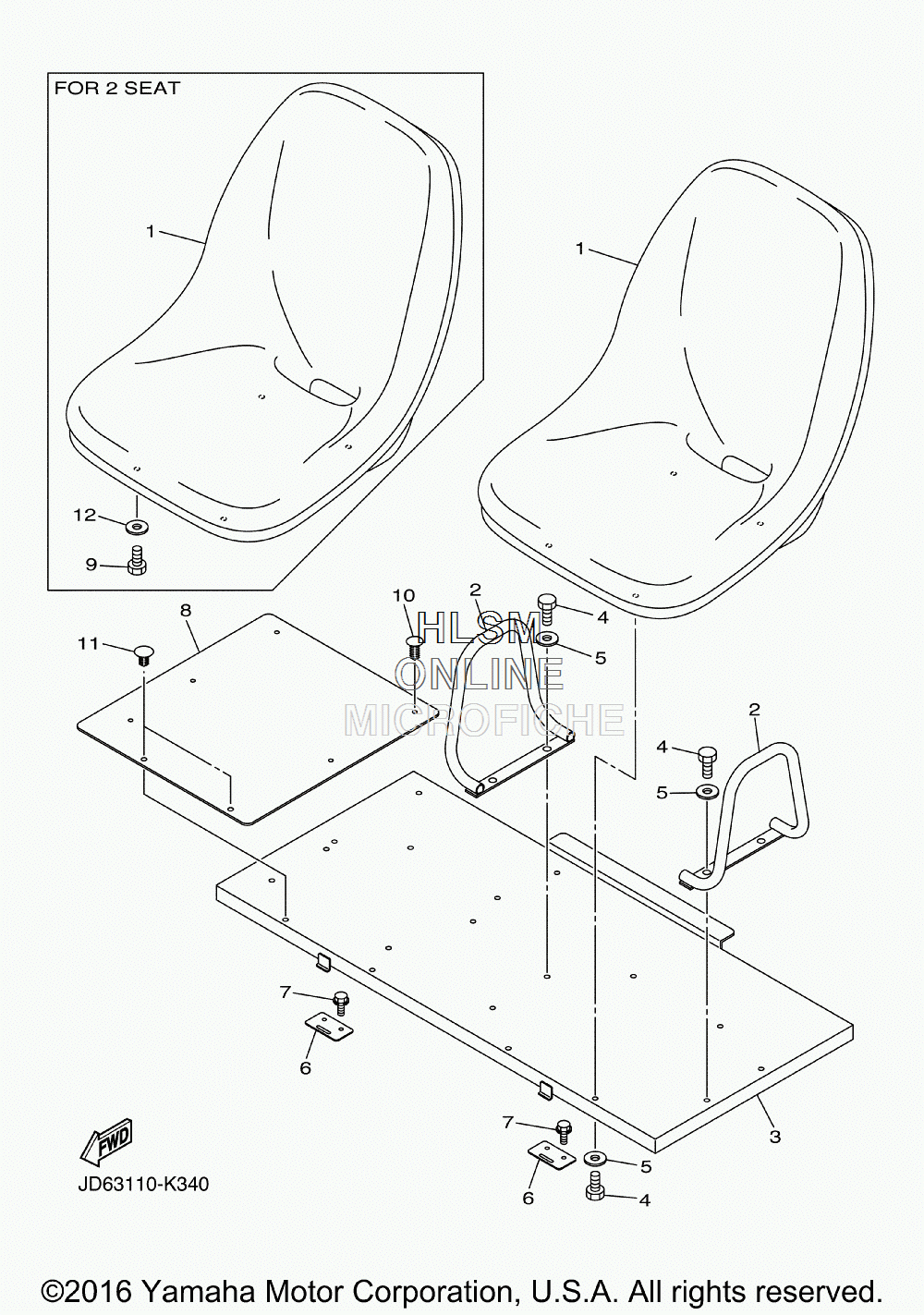

SEAT 1 для Yamaha SPECIALTY VEHICLE FAIRWAY LOUNGE [YTF2AX6 BEVERAGE] (JD67) - 2016 года выпуска
-
№АртикулНазвание
-
1JD6-F4710-00-00 SINGLE SEAT ASSY (1 SEAT)SINGLE SEAT ASSY (1 SEAT)
-
1JD6-F4710-00-00 SINGLE SEAT ASSY (2 SEAT)SINGLE SEAT ASSY (2 SEAT)
-
2JD6-F474W-00-00 ASSIST,GRIP 2ASSIST,GRIP 2
-
3JD6-F475B-00-00 SEAT BASE, UNDERSEAT BASE, UNDER
-
4JD6-F4717-00-00 BOLT, SEAT FITTINGBOLT, SEAT FITTING
-
5JD6-F4746-00-00 WASHER, SEATWASHER, SEAT
-
6JW1-K8427-00-00 HINGE, SEAT 2HINGE, SEAT 2
-
790163-06802-00 SCREW, TAPPINGSCREW, TAPPING
-
8JD6-K8466-00-00 MAT, RUBBER (1 SEAT)MAT, RUBBER (1 SEAT)
-
9JD6-F4717-00-00 BOLT, SEAT FITTING (2 SEAT)BOLT, SEAT FITTING (2 SEAT)
-
10JD6-K7469-00-00 RIVET 3 (1 SEAT)RIVET 3 (1 SEAT)
-
11JD6-K7459-00-00 RIVET 2 (1 SEAT)RIVET 2 (1 SEAT)
-
12JD6-F4746-00-00 WASHER, SEAT (2 SEAT)WASHER, SEAT (2 SEAT)
