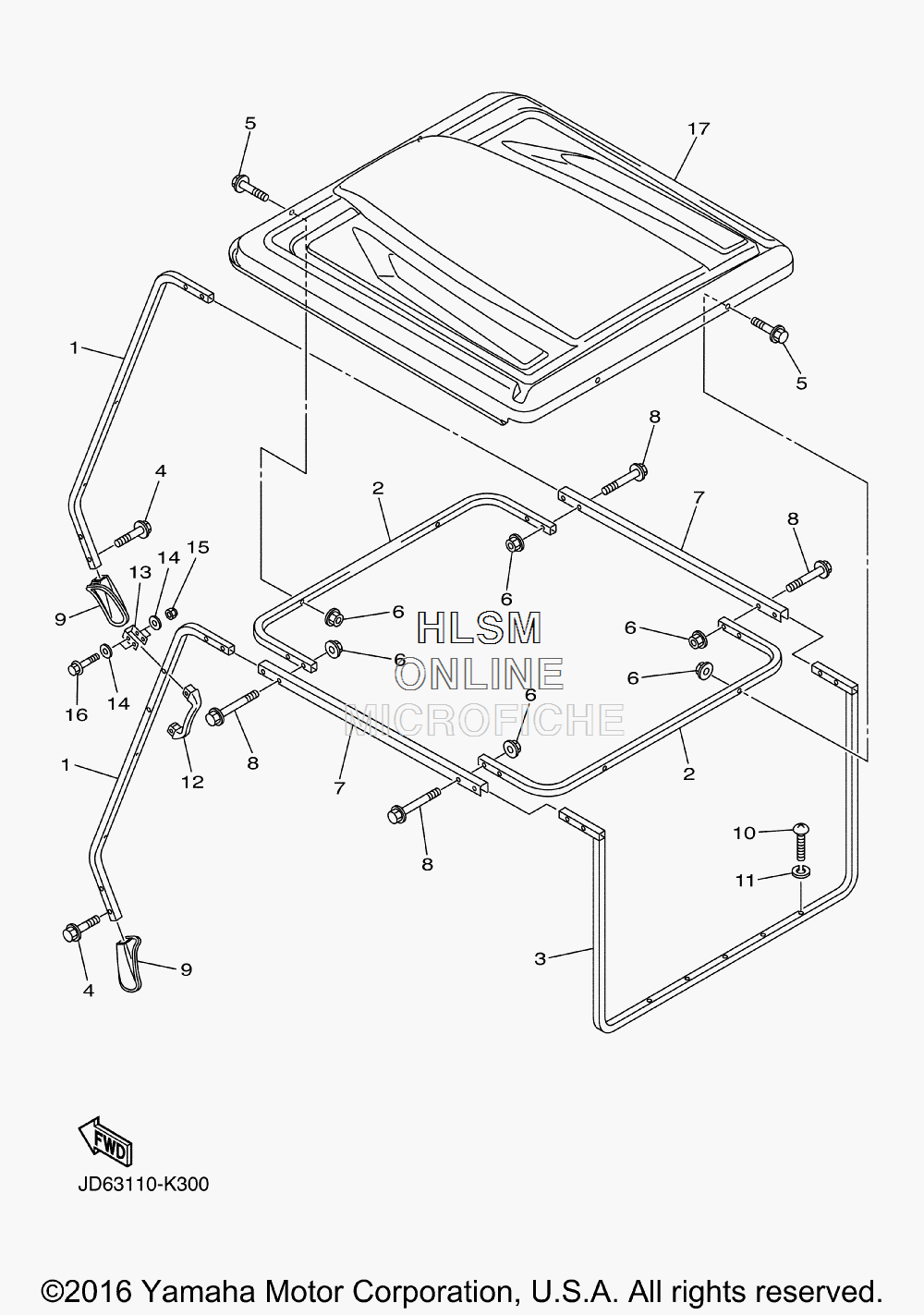

SUN ROOF 1 для Yamaha SPECIALTY VEHICLE FAIRWAY LOUNGE [YTF2AX6 BEVERAGE] (JD67) - 2016 года выпуска
-
№АртикулНазвание
-
1JW6-K8312-00-00 SUPPORT, SUN ROOF 1SUPPORT, SUN ROOF 1
-
2JW6-K8313-00-00 SUPPORT, SUN ROOF 2SUPPORT, SUN ROOF 2
-
3JD6-K831A-00-00 SUPPORT, ROOF 3SUPPORT, ROOF 3
-
4JW1-K8388-00-00 BOLT, ROOF 1BOLT, ROOF 1
-
5JW1-K8388-00-00 BOLT, ROOF 1BOLT, ROOF 1
-
695602-08200-00 NUT, U FLANGENUT, U FLANGE
-
7JW6-K831F-00-00 SUPPORT, ROOF 5SUPPORT, ROOF 5
-
890105-088A8-00 BOLT, FLANGEBOLT, FLANGE
-
9JW1-K832F-10-00 GROMMET, ROOF SUPPORT 1GROMMET, ROOF SUPPORT 1
-
10JD6-K7387-00-00 SCREWSCREW
-
11JD6-F5412-00-00 WASHERWASHER
-
12JW1-K8214-00-00 GRIP, HANDGRIP, HAND
-
13JD6-F3461-00-00 BRACKET, HANDLE (INCLUDE 2 BRKTS)BRACKET, HANDLE (INCLUDE 2 BRKTS)
-
14JD1-F2244-00-00 WASHER 2WASHER 2
-
15JD1-F2143-00-00 NUTNUT
-
16JD6-F6225-00-00 BOLT, HANDLEBOLT, HANDLE
-
17JW6-K8314-00-00 COVER, SUN ROOFCOVER, SUN ROOF
