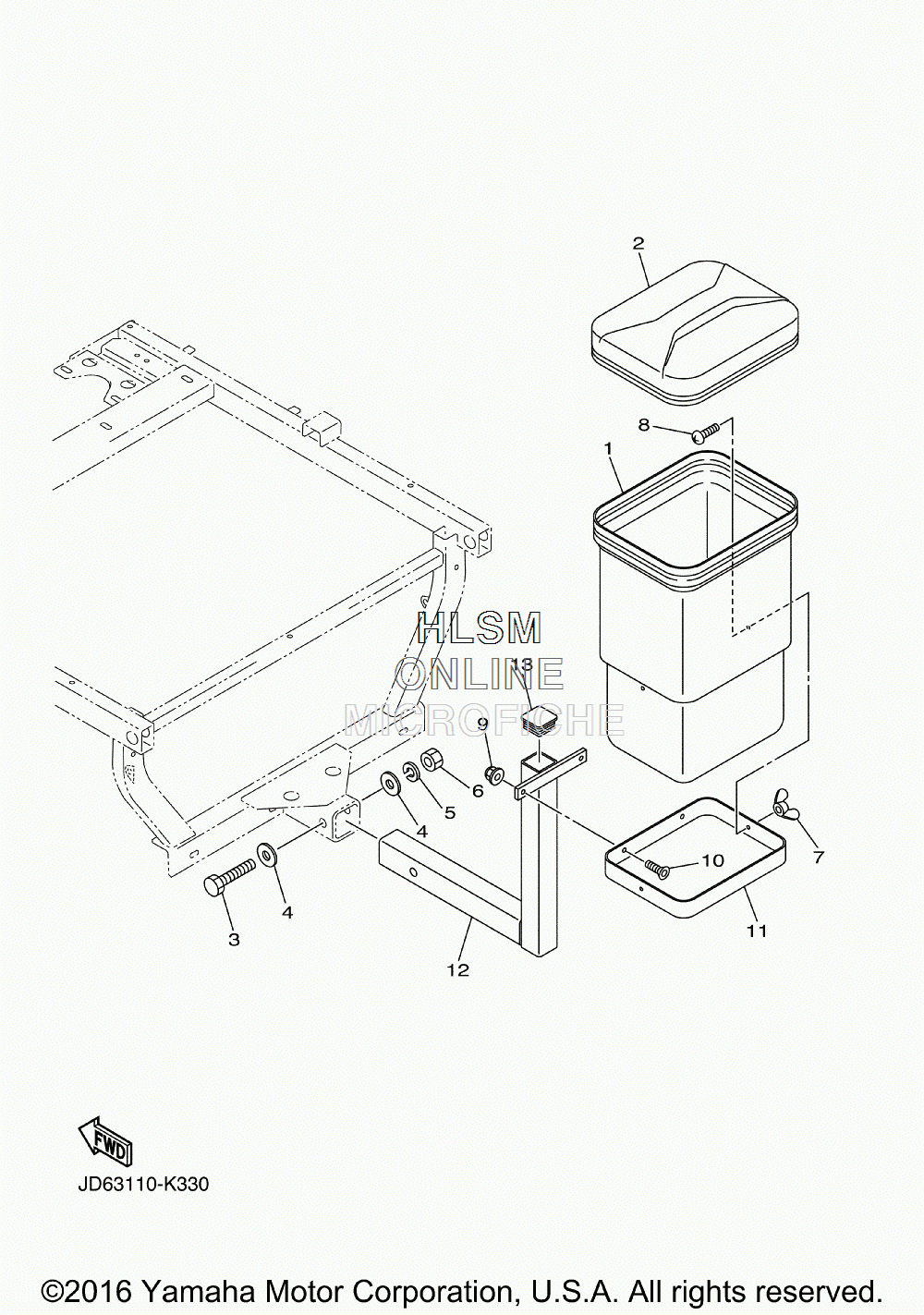

STORAGE BOX для Yamaha SPECIALTY VEHICLE FAIRWAY LOUNGE [YTF2AX6 BEVERAGE] (JD67) - 2016 года выпуска
-
№АртикулНазвание
-
1JD6-F841P-00-00 BOX, STRAGEBOX, STRAGE
-
2JD6-F8185-00-00 LIDLID
-
3JD6-K7212-00-00 BOLT, WIND SHIELDBOLT, WIND SHIELD
-
4JD6-K7389-00-00 WASHERWASHER
-
5JD6-F5714-00-00 WASHER, LOCKWASHER, LOCK
-
6JD6-K6132-00-00 NUTNUT
-
7JD6-K6142-00-00 NUT,WINGNUT,WING
-
8JD1-K7387-00-00 SCREWSCREW
-
9JD6-F5413-00-00 NUT, LOCKNUT, LOCK
-
10JD6-K8385-00-00 BOLT 2BOLT 2
-
11JD6-F811G-00-00 BANDBAND
-
12JD6-F2954-00-00 ADAPTERADAPTER
-
13JD6-F4481-00-00 PLUGPLUG
