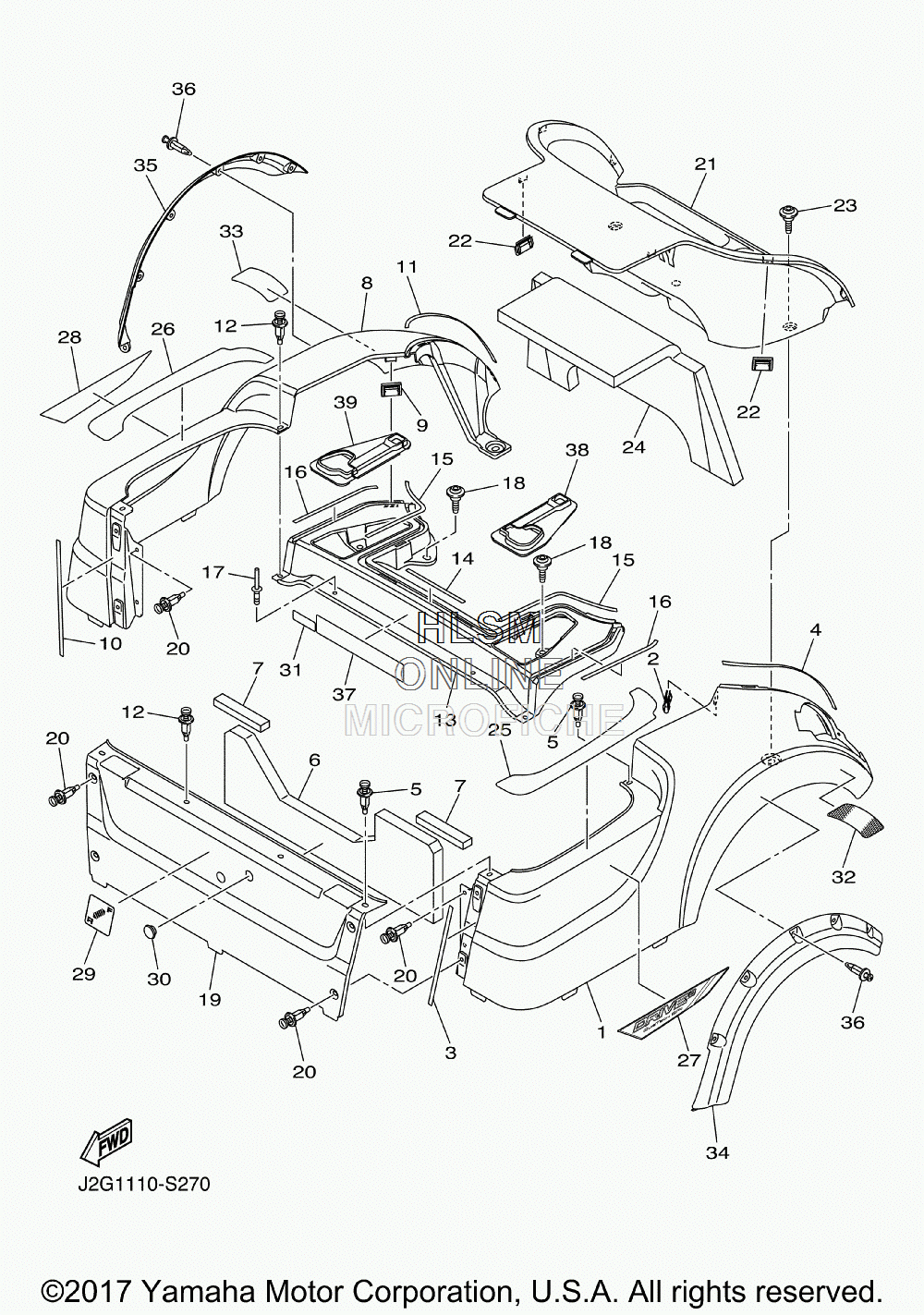

BODY 2 для Yamaha ADVENTURER SPORT 2 + 2 CAMP (DR2A17CAMP SERIAL: J0D-000101) - 2017 года выпуска
-
№АртикулНазвание
-
1J0D-K8111-A0-00 PANEL, BODY SHELL (FOR BW1 - BLUISH WHITE)PANEL, BODY SHELL (FOR BW1 - BLUISH WHITE)
-
1J0D-K8111-00-00 PANEL, BODY SHELL (FOR DNBME - GRAYISH BLUE)PANEL, BODY SHELL (FOR DNBME - GRAYISH BLUE)
-
1J0D-K8111-20-00 PANEL, BODY SHELL (FOR LNYM8 - CHAMPAGNE METALLIC)PANEL, BODY SHELL (FOR LNYM8 - CHAMPAGNE METALLIC)
-
1J0D-K8111-30-00 PANEL, BODY SHELL (FOR LNMP - SILVER METALLIC)PANEL, BODY SHELL (FOR LNMP - SILVER METALLIC)
-
1J0D-K8111-40-00 PANEL, BODY SHELL (FOR DYNM2 - DARK YELLOWISH GRAY)PANEL, BODY SHELL (FOR DYNM2 - DARK YELLOWISH GRAY)
-
1J0D-K8111-70-00 PANEL, BODY SHELL (FOR DRMV - DEEP RED METALLIC)PANEL, BODY SHELL (FOR DRMV - DEEP RED METALLIC)
-
1J0D-K8111-80-00 PANEL, BODY SHELL (FOR BMG - BLACK METALLIC)PANEL, BODY SHELL (FOR BMG - BLACK METALLIC)
-
1J0D-K8111-90-00 PANEL, BODY SHELL (FOR VPBM6 - PURPLISH BLUE METALLIC)PANEL, BODY SHELL (FOR VPBM6 - PURPLISH BLUE METALLIC)
-
2J0B-F3447-00-00 CLIPCLIP
-
3J0B-K814E-00-00 SEAL, BODY SIDE 1SEAL, BODY SIDE 1
-
4J0B-K814F-00-00 SEAL, BODY SIDE 2SEAL, BODY SIDE 2
-
590269-07805-00 RIVETRIVET
-
6J0B-K8251-00-00 PAD, SILENCER 1PAD, SILENCER 1
-
7J0D-K825G-00-00 PAD, SILENCER 13PAD, SILENCER 13
-
8J0D-K8112-90-00 PANEL, BODY SHELL (FOR VPBM6 - PURPLISH BLUE METALLIC)PANEL, BODY SHELL (FOR VPBM6 - PURPLISH BLUE METALLIC)
-
8J0D-K8112-80-00 PANEL, BODY SHELL (FOR BMG - BLACK METALLIC)PANEL, BODY SHELL (FOR BMG - BLACK METALLIC)
-
8J0D-K8112-70-00 PANEL, BODY SHELL (FOR DRMV - DEEP RED METALLIC)PANEL, BODY SHELL (FOR DRMV - DEEP RED METALLIC)
-
8J0D-K8112-40-00 PANEL, BODY SHELL (FOR DYNM2 - DARK YELLOWISH GRAY)PANEL, BODY SHELL (FOR DYNM2 - DARK YELLOWISH GRAY)
-
8J0D-K8112-30-00 PANEL, BODY SHELL (FOR LNMP - SILVER METALLIC)PANEL, BODY SHELL (FOR LNMP - SILVER METALLIC)
-
8J0D-K8112-20-00 PANEL, BODY SHELL (FOR LNYM8 - CHAMPAGNE METALLIC)PANEL, BODY SHELL (FOR LNYM8 - CHAMPAGNE METALLIC)
-
8J0D-K8112-00-00 PANEL, BODY SHELL (FOR DNBME - GRAYISH BLUE)PANEL, BODY SHELL (FOR DNBME - GRAYISH BLUE)
-
8J0D-K8112-A0-00 PANEL, BODY SHELL (FOR BW1 - BLUISH WHITE)PANEL, BODY SHELL (FOR BW1 - BLUISH WHITE)
-
9J0B-F3447-00-00 CLIPCLIP
-
10J0B-K814E-00-00 SEAL, BODY SIDE 1SEAL, BODY SIDE 1
-
11J0B-K814F-00-00 SEAL, BODY SIDE 2SEAL, BODY SIDE 2
-
1290269-07805-00 RIVETRIVET
-
13J0B-K819H-00-00 SHELL, REAR BODYSHELL, REAR BODY
-
14J0B-K814R-00-00 SEAL, BODY SIDE 3SEAL, BODY SIDE 3
-
15J0B-K814T-00-00 SEAL, BODY SIDE 4SEAL, BODY SIDE 4
-
16J0B-K814U-00-00 SEAL, BODY SIDESEAL, BODY SIDE
-
17JW7-K7329-00-00 RIVETRIVET
-
18J0B-F1738-00-00 BOLTBOLT
-
19J0B-K8141-90-00 PANEL, INTERMEDIATE BODY (FOR VPBM6 - PURPLISH BLUE METALLIC)PANEL, INTERMEDIATE BODY (FOR VPBM6 - PURPLISH BLUE METALLIC)
-
19J0B-K8141-70-00 PANEL, INTERMEDIATE BODY (FOR DRMV - DEEP RED METALLIC)PANEL, INTERMEDIATE BODY (FOR DRMV - DEEP RED METALLIC)
-
19J0B-K8141-80-00 PANEL, INTERMEDIATE BODY (FOR BMG - BLACK METALLIC)PANEL, INTERMEDIATE BODY (FOR BMG - BLACK METALLIC)
-
19J0B-K8141-A0-00 PANEL, INTERMEDIATE BODY (FOR BW1 - BLUISH WHITE)PANEL, INTERMEDIATE BODY (FOR BW1 - BLUISH WHITE)
-
19J0B-K8141-00-00 PANEL, INTERMEDIATE BODY (FOR DNBME - GRAYISH BLUE)PANEL, INTERMEDIATE BODY (FOR DNBME - GRAYISH BLUE)
-
19J0B-K8141-20-00 PANEL, INTERMEDIATE BODY (FOR LNYM8 - CHAMPAGNE METALLIC)PANEL, INTERMEDIATE BODY (FOR LNYM8 - CHAMPAGNE METALLIC)
-
19J0B-K8141-30-00 PANEL, INTERMEDIATE BODY (FOR LNMP - SILVER METALLIC)PANEL, INTERMEDIATE BODY (FOR LNMP - SILVER METALLIC)
-
19J0B-K8141-40-00 PANEL, INTERMEDIATE BODY (FOR DYNM2 - DARK YELLOWISH GRAY)PANEL, INTERMEDIATE BODY (FOR DYNM2 - DARK YELLOWISH GRAY)
-
2090269-07805-00 RIVETRIVET
-
21J0B-K8237-02-00 COVER, REAR FLOORCOVER, REAR FLOOR
-
22J0B-F3447-00-00 CLIPCLIP
-
23J0B-F1738-00-00 BOLTBOLT
-
24J0B-K8255-01-00 PAD, SILENCER 5PAD, SILENCER 5
-
25J0B-F2873-01-00 SEAL 1SEAL 1
-
26J0B-F2874-01-00 SEAL 2SEAL 2
-
27J0D-F1781-10-00 EMBLEM 1EMBLEM 1
-
27J0D-F1781-00-00 EMBLEM 1 (FOR BMG - BLACK METALLIC)EMBLEM 1 (FOR BMG - BLACK METALLIC)
-
27J0D-F1781-00-00 EMBLEM 1 (FOR DYNM2 - DARK YELLOWISH GRAY)EMBLEM 1 (FOR DYNM2 - DARK YELLOWISH GRAY)
-
28J0D-F1782-00-00 EMBLEM 2 (FOR BMG - BLACK METALLIC)EMBLEM 2 (FOR BMG - BLACK METALLIC)
-
28J0D-F1782-00-00 EMBLEM 2 (FOR DYNM2 - DARK YELLOWISH GRAY)EMBLEM 2 (FOR DYNM2 - DARK YELLOWISH GRAY)
-
28J0D-F1782-10-00 EMBLEM 2EMBLEM 2
-
29JW1-K7741-00-00 INDICATOR 1INDICATOR 1
-
30JR1-K8139-00-00 CAP, ENDCAP, END
-
31JN6-H2377-00-00 LABELLABEL
-
32J0D-H360G-00-00 REFLECTOR 3REFLECTOR 3
-
33J0D-H360H-00-00 REFLECTOR 4REFLECTOR 4
-
34J2G-F1559-00-00 FENDER, OVER 3FENDER, OVER 3
-
35J2G-F1560-00-00 FENDER, OVER 4FENDER, OVER 4
-
3690269-06800-00 RIVETRIVET
-
37JW1-K8297-02-00 PLATE, CAUTION 1PLATE, CAUTION 1
-
38J0B-K817H-10-00 TRIM, SIDE PANEL 1TRIM, SIDE PANEL 1
-
39J0B-K817J-10-00 TRIM, SIDE PANEL 2TRIM, SIDE PANEL 2
