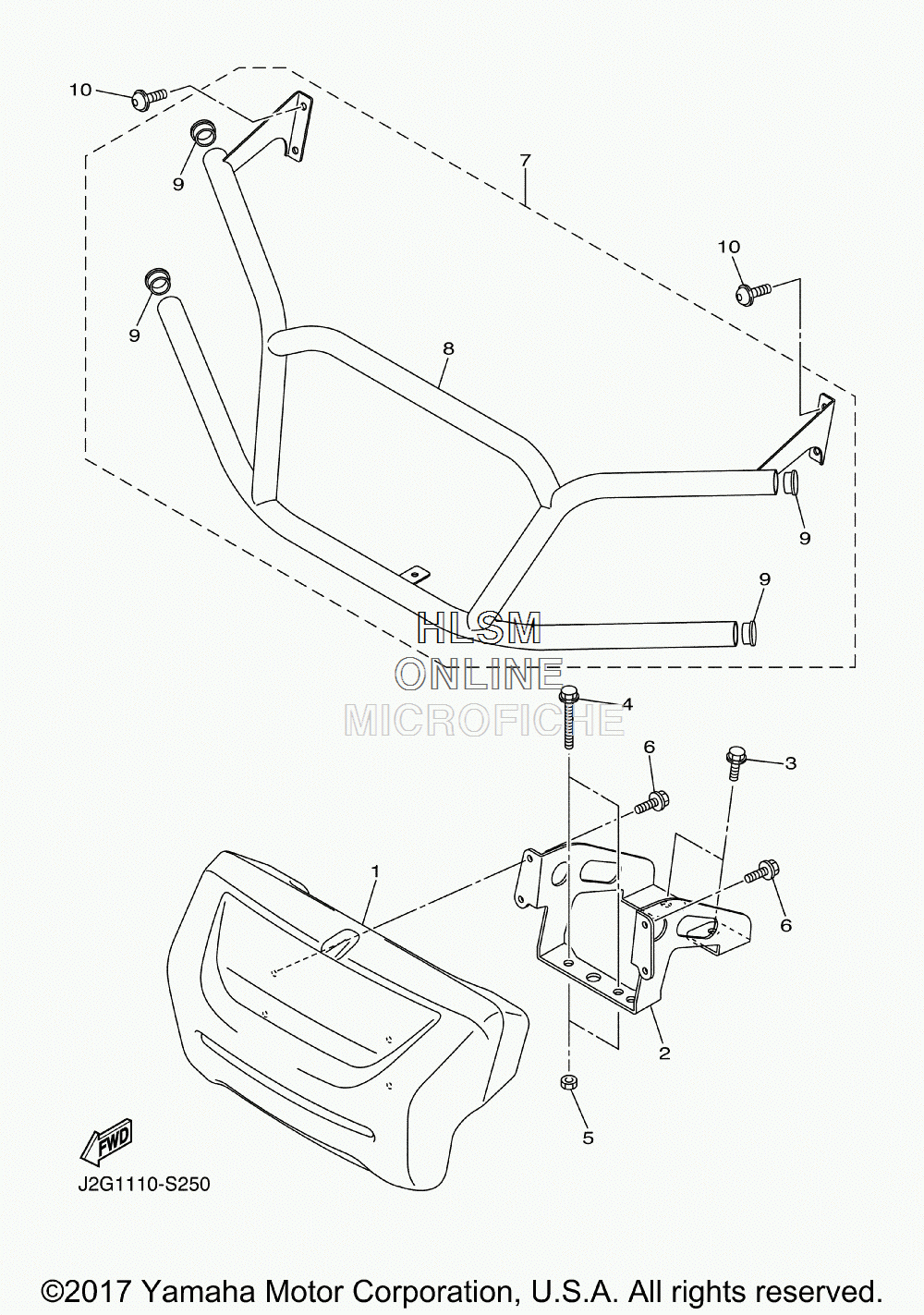

BUMPER для Yamaha ADVENTURER SPORT 2 + 2 CAMP (DR2A17CAMP SERIAL: J0D-000101) - 2017 года выпуска
-
№АртикулНазвание
-
1J0B-K7510-00-00 FRONT BUMPER COMP.FRONT BUMPER COMP.
-
2J0B-K8164-00-00 STAY, FRONT BUMPER (LEFT)STAY, FRONT BUMPER (LEFT)
-
395812-08016-00 BOLT, FLANGEBOLT, FLANGE
-
495812-08050-00 BOLT, FLANGEBOLT, FLANGE
-
595302-08700-00 NUT, HEXAGONNUT, HEXAGON
-
695822-06012-00 BOLT, FLANGEBOLT, FLANGE
-
7J2G-F61D0-00-00 BRUSH GUARD ASSY. ,1BRUSH GUARD ASSY. ,1
-
8J2G-F6141-00-00 ...GUARD, BRUSH 1...GUARD, BRUSH 1
-
9J2G-F6133-00-00 ...CAP...CAP
-
10J0B-K8388-00-00 BOLT, ROOF 1BOLT, ROOF 1
