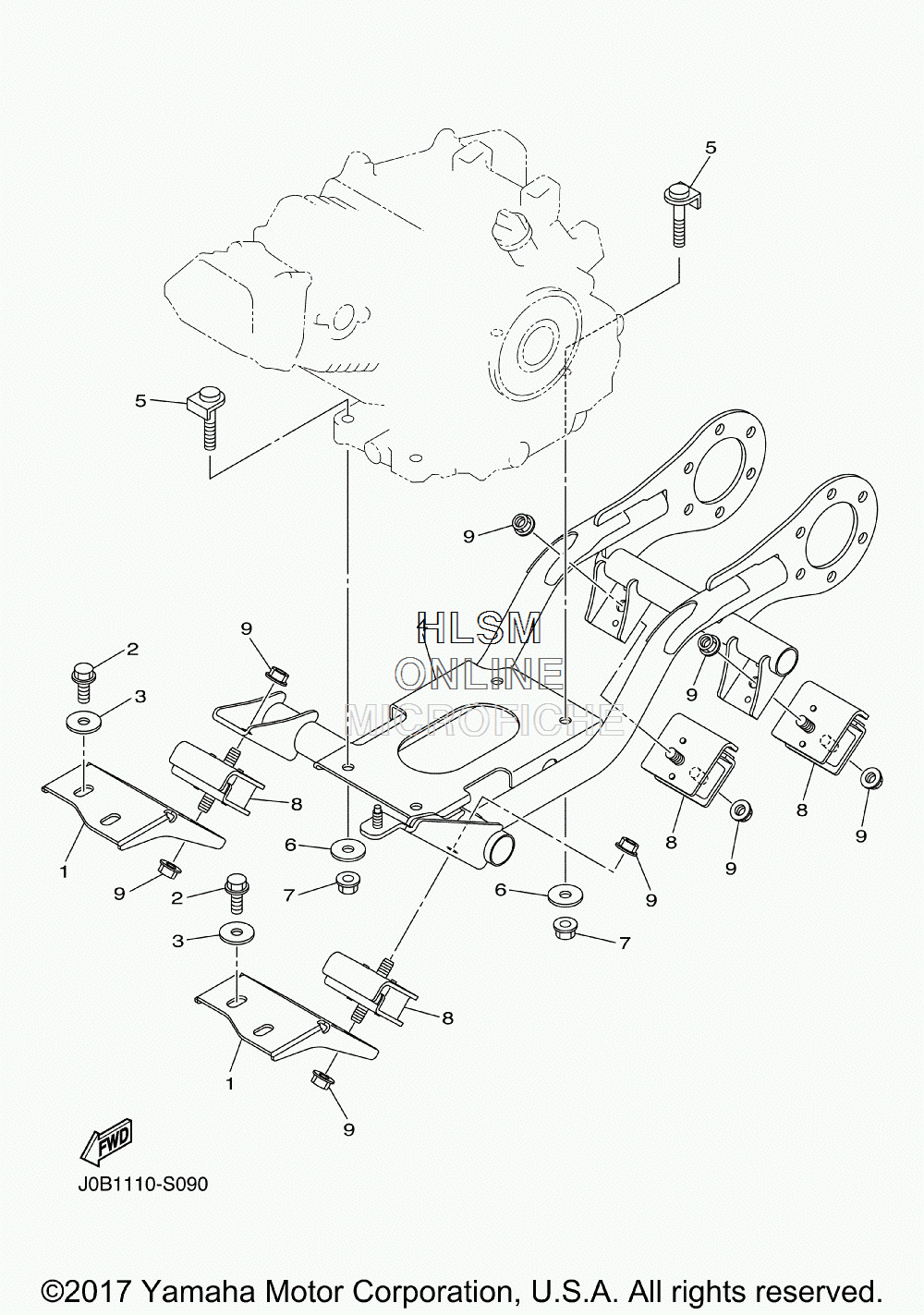

ENGINE BRACKET для Yamaha ADVENTURER SPORT 2 + 2 CAMP (DR2A17CAMP SERIAL: J0D-000101) - 2017 года выпуска
-
№АртикулНазвание
-
1J2G-F1411-00-00 BRACKET, ENGINE 1BRACKET, ENGINE 1
-
295812-10020-00 BOLT, FLANGEBOLT, FLANGE
-
390201-10072-00 WASHER, PLATEWASHER, PLATE
-
4J0B-F1419-01-00 BRACKET, ENGINE 2BRACKET, ENGINE 2
-
5JT0-21481-00-00 BOLT, ENGINE MOUNTING 1BOLT, ENGINE MOUNTING 1
-
692902-10200-00 WASHERWASHER
-
795602-10200-00 NUT, S/L FLANGENUT, S/L FLANGE
-
8J0B-F1485-00-00 DAMPER, RUBBER 1DAMPER, RUBBER 1
-
995602-10200-00 NUT, S/L FLANGENUT, S/L FLANGE
