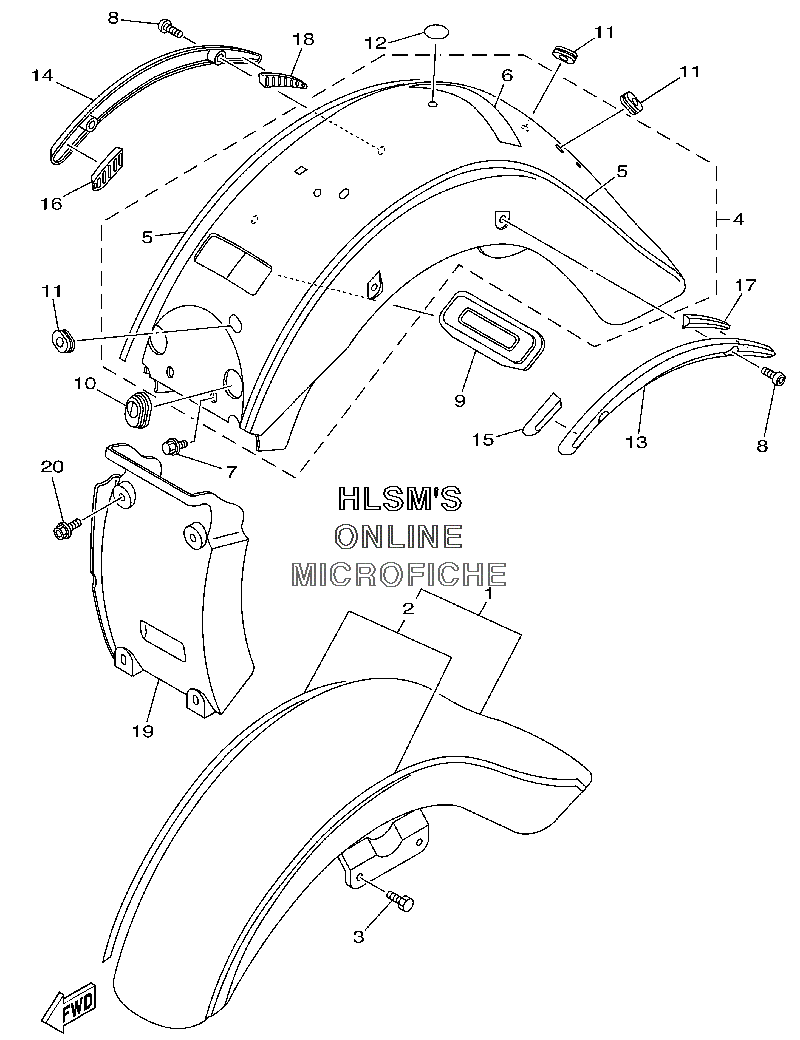

FENDER для Yamaha XV 1600 ROAD STAR CALIFORNIA - 2000 года выпуска
-
№АртикулНазвание
-
14WM-Y2150-50-33 FRONT FENDER ASSY (033) (YAMAHA BLACK)FRONT FENDER ASSY (033) (YAMAHA BLACK)
-
14WM-Y2150-60-5X FRONT FENDER ASSY (0JY) (MIYABI MAROON)FRONT FENDER ASSY (0JY) (MIYABI MAROON)
-
14WM-Y2150-90-P0 FRONT FENDER ASSY (740) (DARK GRAYISH PURPLE METALLIC 1)FRONT FENDER ASSY (740) (DARK GRAYISH PURPLE METALLIC 1)
-
24WM-21570-60-00 ...GRAPHIC SET, FRONT FENDER (033) (YAMAHA BLACK)...GRAPHIC SET, FRONT FENDER (033) (YAMAHA BLACK)
-
24WM-21570-50-00 ...GRAPHIC SET, FRONT FENDER (0JY) (MIYABI MAROON)...GRAPHIC SET, FRONT FENDER (0JY) (MIYABI MAROON)
-
24WM-21570-70-00 ...GRAPHIC SET, FRONT FENDER (740) (DARK GRAYISH PURPLE METALLIC 1)...GRAPHIC SET, FRONT FENDER (740) (DARK GRAYISH PURPLE METALLIC 1)
-
391314-08025-00 BOLTBOLT
-
44WM-Y2161-51-33 REAR FENDER COMP. (033) (YAMAHA BLACK)REAR FENDER COMP. (033) (YAMAHA BLACK)
-
44WM-Y2161-61-5X REAR FENDER COMP. (0JY) (MIYABI MAROON)REAR FENDER COMP. (0JY) (MIYABI MAROON)
-
44WM-Y2161-91-P0 REAR FENDER COMP. (740) (DARK GRAYISH PURPLE METALLIC 1)REAR FENDER COMP. (740) (DARK GRAYISH PURPLE METALLIC 1)
-
54WM-2165A-60-00 ...GRAPHIC SET, REAR FENDER (033) (YAMAHA BLACK)...GRAPHIC SET, REAR FENDER (033) (YAMAHA BLACK)
-
54WM-2165A-50-00 ...GRAPHIC SET, REAR FENDER (0JY) (MIYABI MAROON)...GRAPHIC SET, REAR FENDER (0JY) (MIYABI MAROON)
-
54WM-2165A-70-00 ...GRAPHIC SET, REAR FENDER (740) (DARK GRAYISH PURPLE METALLIC 1)...GRAPHIC SET, REAR FENDER (740) (DARK GRAYISH PURPLE METALLIC 1)
-
699247-00080-00 ...EMBLEM, YAMAHA...EMBLEM, YAMAHA
-
790119-06056-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
892014-08025-00 BOLT, BUTTON HEADBOLT, BUTTON HEAD
-
94WM-21649-00-00 DAMPERDAMPER
-
104WM-21638-00-00 DAMPER 1DAMPER 1
-
1190480-15061-00 GROMMETGROMMET
-
124NK-21735-00-00 SEAL 2SEAL 2
-
134WM-2164F-00-00 STAY 1STAY 1
-
144WM-2164G-00-00 STAY 2STAY 2
-
154WM-21541-00-00 DAMPER 1DAMPER 1
-
164WM-21542-00-00 DAMPER 2DAMPER 2
-
174WM-2174X-00-00 DAMPERDAMPER
-
184WM-2174Y-00-00 DAMPERDAMPER
-
194WM-21629-00-33 GUARD, MUD (033) (YAMAHA BLACK)GUARD, MUD (033) (YAMAHA BLACK)
-
194WM-21629-00-FW GUARD, MUD (0JY) (MIYABI MAROON)GUARD, MUD (0JY) (MIYABI MAROON)
-
194WM-21629-00-P1 GUARD, MUD (740) (DARK GRAYISH PURPLE METALLIC 1)GUARD, MUD (740) (DARK GRAYISH PURPLE METALLIC 1)
-
2090119-06060-00 BOLT, WITH WASHERBOLT, WITH WASHER
