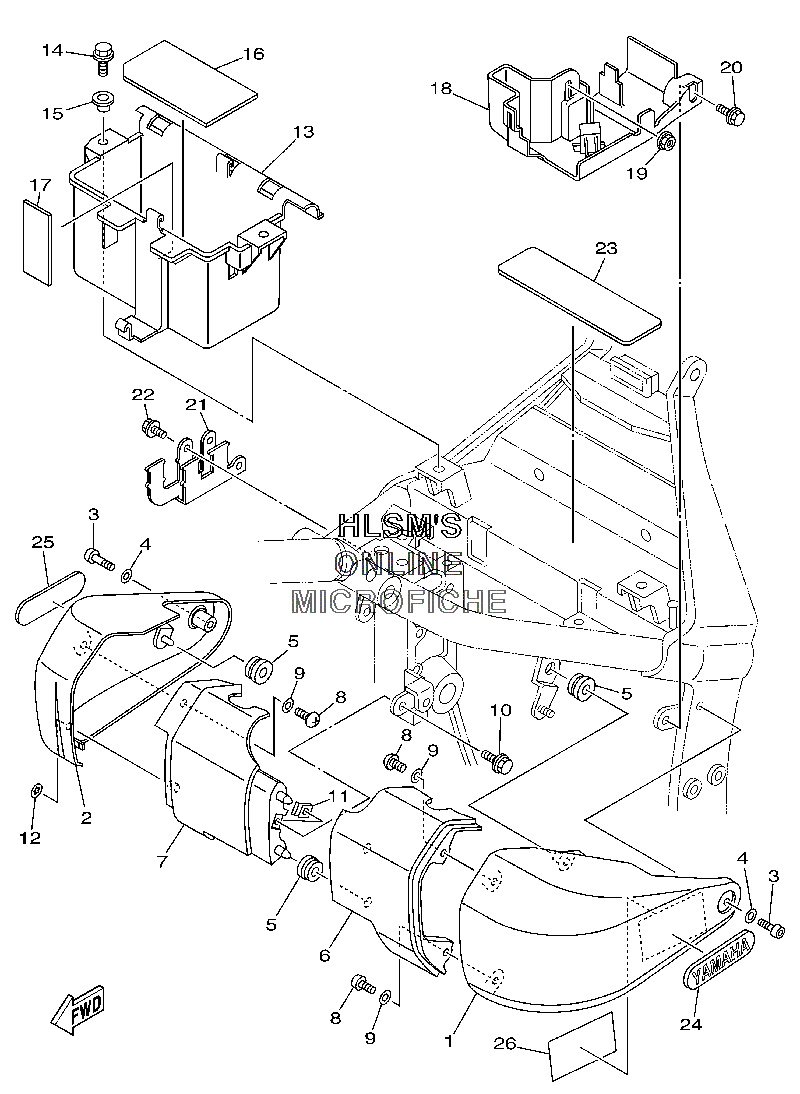

SIDE COVER для Yamaha XV 1600 ROAD STAR CALIFORNIA - 2000 года выпуска
-
№АртикулНазвание
-
14WM-21711-00-33 COVER, SIDE 1 (033) (YAMAHA BLACK)COVER, SIDE 1 (033) (YAMAHA BLACK)
-
14WM-21711-00-JY COVER, SIDE 1 (0JY) (MIYABI MAROON)COVER, SIDE 1 (0JY) (MIYABI MAROON)
-
14WM-21711-00-P2 COVER, SIDE 1 (740) (DARK GRAYISH PURPLE METALLIC 1)COVER, SIDE 1 (740) (DARK GRAYISH PURPLE METALLIC 1)
-
24WM-21721-00-33 COVER, SIDE 2 (033) (YAMAHA BLACK)COVER, SIDE 2 (033) (YAMAHA BLACK)
-
24WM-21721-00-JY COVER, SIDE 2 (0JY) (MIYABI MAROON)COVER, SIDE 2 (0JY) (MIYABI MAROON)
-
24WM-21721-00-P2 COVER, SIDE 2 (740) (DARK GRAYISH PURPLE METALLIC 1)COVER, SIDE 2 (740) (DARK GRAYISH PURPLE METALLIC 1)
-
390149-06328-00 SCREWSCREW
-
490202-06172-00 WASHER, PLATEWASHER, PLATE
-
590480-13567-00 GROMMETGROMMET
-
64WM-2117X-00-33 COVER 9 (033) (YAMAHA BLACK)COVER 9 (033) (YAMAHA BLACK)
-
64WM-2117X-00-JY COVER 9 (0JY) (MIYABI MAROON)COVER 9 (0JY) (MIYABI MAROON)
-
64WM-2117X-00-P2 COVER 9 (740) (DARK GRAYISH PURPLE METALLIC 1)COVER 9 (740) (DARK GRAYISH PURPLE METALLIC 1)
-
74WM-2117Y-00-33 COVER 10 (033) (YAMAHA BLACK)COVER 10 (033) (YAMAHA BLACK)
-
74WM-2117Y-00-JY COVER 10 (0JY) (MIYABI MAROON)COVER 10 (0JY) (MIYABI MAROON)
-
74WM-2117Y-00-P2 COVER 10 (740) (DARK GRAYISH PURPLE METALLIC 1)COVER 10 (740) (DARK GRAYISH PURPLE METALLIC 1)
-
898507-06014-00 SCREW, PAN HEADSCREW, PAN HEAD
-
992907-06600-00 WASHER, PLATEWASHER, PLATE
-
1095027-06012-00 BOLT, FLANGEBOLT, FLANGE
-
1190183-06053-00 NUT, SPRINGNUT, SPRING
-
1290183-05068-00 NUT, SPRINGNUT, SPRING
-
134WM-2177G-00-00 BOX, BATTERYBOX, BATTERY
-
1495807-06014-00 BOLT, FLANGEBOLT, FLANGE
-
1590387-07717-00 COLLARCOLLAR
-
1651Y-82122-00-00 SEAT, BATTERYSEAT, BATTERY
-
1726H-21746-00-00 DAMPERDAMPER
-
184WM-2172E-00-00 STAY, SIDE COVER 1STAY, SIDE COVER 1
-
1995707-06500-00 NUT, FLANGENUT, FLANGE
-
2090119-06194-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
214WM-2172K-00-00 BRACKET 1BRACKET 1
-
2295807-06010-00 BOLT, FLANGEBOLT, FLANGE
-
234WM-21267-00-00 SHEET 2SHEET 2
-
243LS-21781-00-00 EMBLEM 1EMBLEM 1
-
253LS-21781-00-00 EMBLEM 1EMBLEM 1
-
264WM-2179V-10-00 PLATE, EPA 1 (EXCEPT CALIF.)PLATE, EPA 1 (EXCEPT CALIF.)
-
264WM-2179R-10-00 PLATE, EPA 2 (CALIF. ONLY)PLATE, EPA 2 (CALIF. ONLY)
