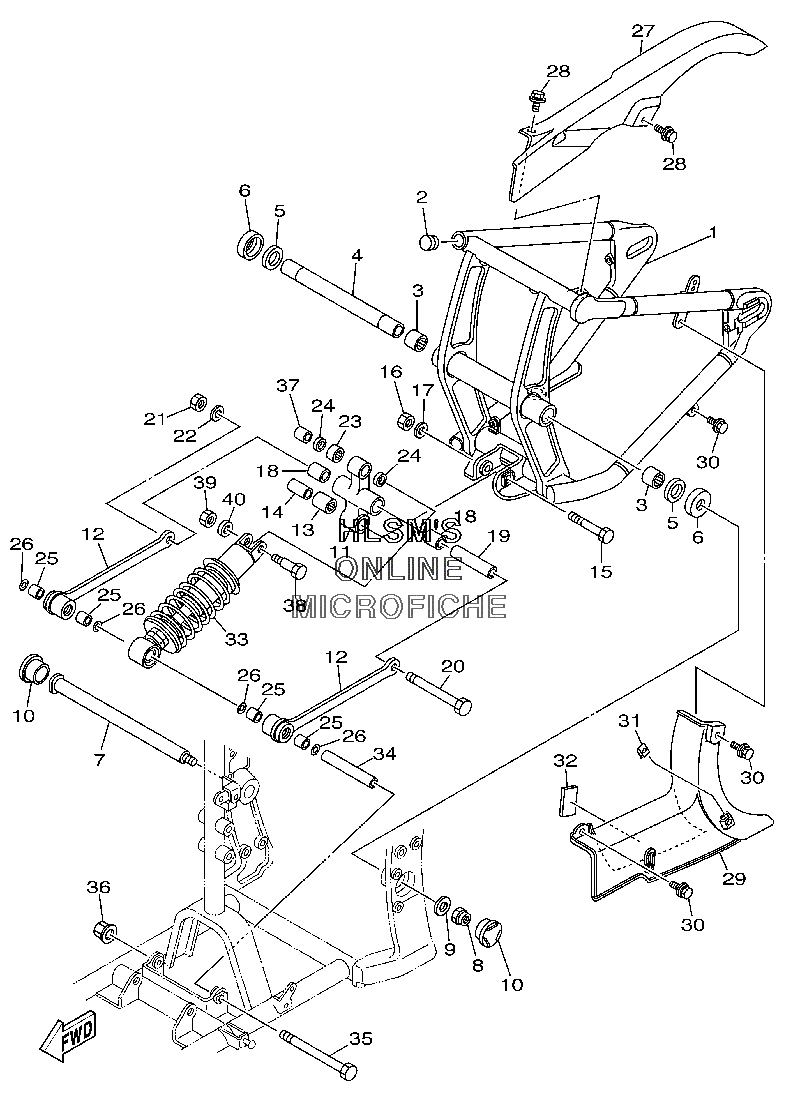

SUSPENSION - REAR ARM для Yamaha XV 1600 ROAD STAR CALIFORNIA - 2000 года выпуска
-
№АртикулНазвание
-
14WM-22110-00-00 REAR ARM COMP.REAR ARM COMP.
-
290336-28053-00 PLUG, TAPERPLUG, TAPER
-
393317-42550-00 BEARINGBEARING
-
44WM-22184-00-00 BUSHBUSH
-
53XV-22127-00-00 SHIMSHIM
-
63FV-22128-00-00 COVER, THRUST 1COVER, THRUST 1
-
73GM-25381-A0-00 AXLE, WHEELAXLE, WHEEL
-
890185-18104-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
990201-186M4-00 WASHER, PLATEWASHER, PLATE
-
104KM-2219X-00-00 COVERCOVER
-
114WM-2217A-00-00 ARM, RELAYARM, RELAY
