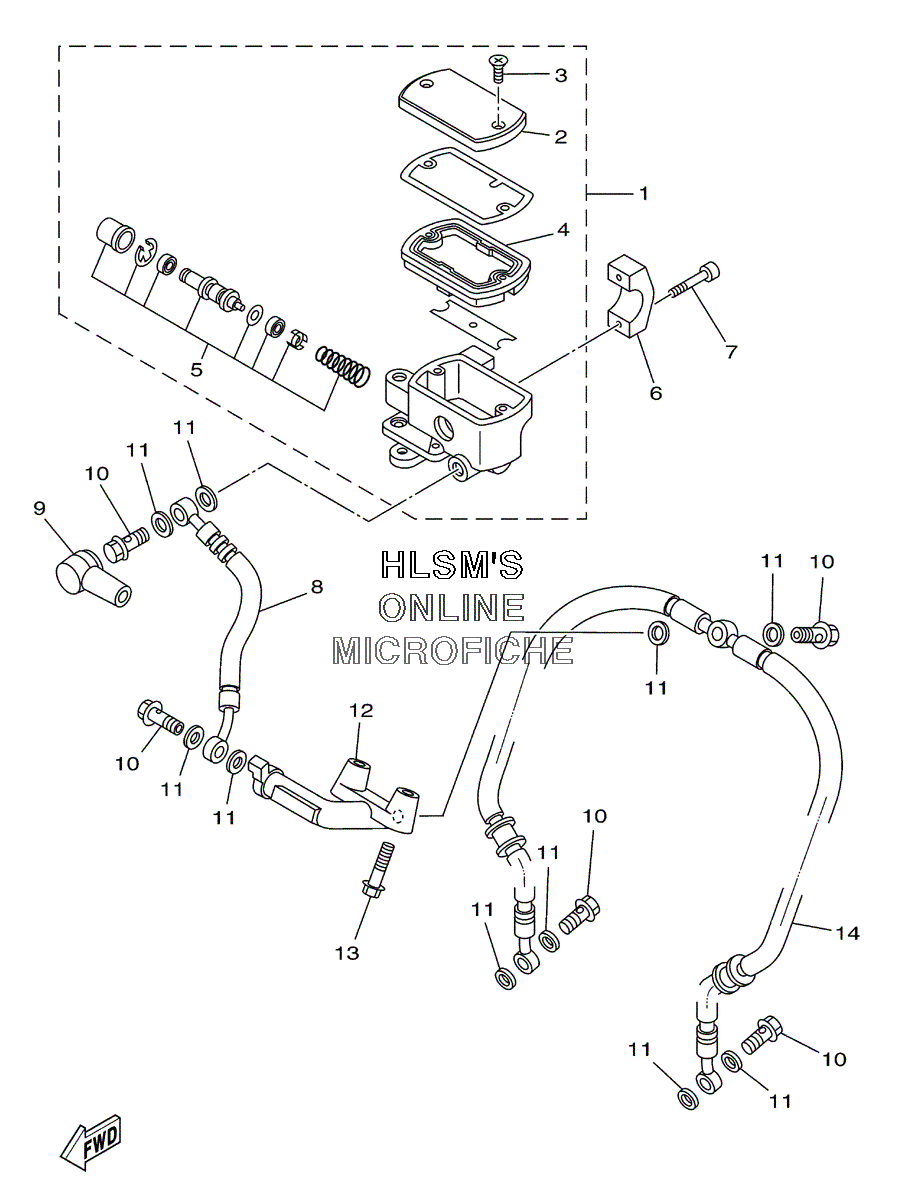

BRAKE - FRONT MASTER CYLINDER для Yamaha XVS 1100 A V-STAR CLASSIC - 2000 года выпуска
-
№АртикулНазвание
-
14TR-2583T-01-00 MASTER CYL ASSYMASTER CYL ASSY
-
24TR-25852-00-00 ...CAP, RESERVOIR...CAP, RESERVOIR
-
398704-04012-00 ...SCREW, FLAT HEAD...SCREW, FLAT HEAD
-
44BH-25854-01-00 ...DIAPHRAGM, RESERVOIR...DIAPHRAGM, RESERVOIR
-
52KR-W0041-00-00 ...CYL KIT, MASTER...CYL KIT, MASTER
-
64TR-25867-00-00 BRACKET, MASTER CYLBRACKET, MASTER CYL
-
791314-06025-00 BOLTBOLT
-
85KS-25872-00-00 HOSE, BRAKE 1HOSE, BRAKE 1
-
94L0-25862-01-00 BOOT, MASTER CYLBOOT, MASTER CYL
-
1090401-10159-00 BOLT, UNIONBOLT, UNION
-
1190201-10118-00 WASHER, PLATEWASHER, PLATE
-
125KS-25885-00-00 JOINTJOINT
-
1395807-06030-00 BOLT, FLANGEBOLT, FLANGE
-
145KS-25873-00-00 HOSE, BRAKE 2HOSE, BRAKE 2
