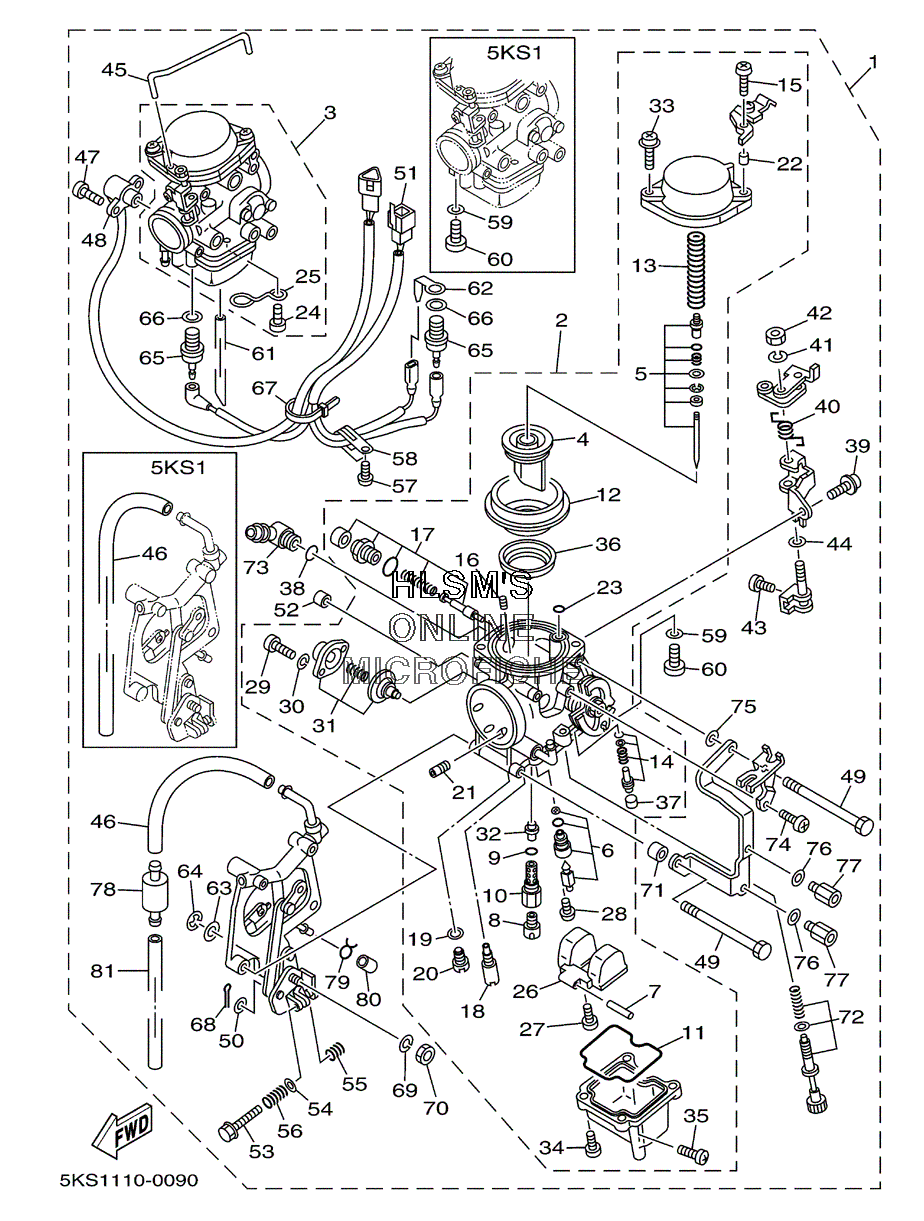

CARBURETOR для Yamaha XVS 1100 A V-STAR CLASSIC - 2000 года выпуска
-
№АртикулНазвание
-
15EL-14900-20-00 CARBURETOR ASSY (EXCEPT CALF)CARBURETOR ASSY (EXCEPT CALF)
-
15EL-14900-30-00 CARBURETOR ASSY (CALF ONLY)CARBURETOR ASSY (CALF ONLY)
-
25EL-14901-20-00 ...CARBURETOR ASSY 1 (EXCEPT CALF)...CARBURETOR ASSY 1 (EXCEPT CALF)
-
25EL-14901-30-00 ...CARBURETOR ASSY 1 (CALF ONLY)...CARBURETOR ASSY 1 (CALF ONLY)
-
35EL-14902-20-00 ...CARBURETOR ASSY 2 (EXCEPT CALF)...CARBURETOR ASSY 2 (EXCEPT CALF)
-
35EL-14902-30-00 ...CARBURETOR ASSY 2 (CALF ONLY)...CARBURETOR ASSY 2 (CALF ONLY)
-
45EL-14112-00-00 ......VALVE, THROTTLE 1......VALVE, THROTTLE 1
-
55EL-1490J-20-00 ......NEEDLE SET......NEEDLE SET
-
65EL-14107-12-00 ......NEEDLE VALVE SET......NEEDLE VALVE SET
-
7127-14186-00-00 ......PIN, FLOAT......PIN, FLOAT
-
83G2-14231-22-00 ......JET, MAIN (110) - CARB ASSY 1......JET, MAIN (110) - CARB ASSY 1
-
83G2-1423A-73-00 ......JET, MAIN (112.5) - CARB ASSY 2......JET, MAIN (112.5) - CARB ASSY 2
-
9583-14561-00-00 ......O-RING......O-RING
-
105EL-14261-00-00 ......HOLDER......HOLDER
-
115DM-14561-00-00 ......O-RING......O-RING
-
125EL-24411-00-00 ......DIAPHRAGM......DIAPHRAGM
-
134KM-14933-00-00 ......SPRING, DIAPHRAGM......SPRING, DIAPHRAGM
-
144SV-14105-00-00 ......PILOT SCREW SET......PILOT SCREW SET
-
1598502-05016-00 ......SCREW, PAN HEAD......SCREW, PAN HEAD
-
161HX-14231-29-00 ......JET, MAIN (145)......JET, MAIN (145)
-
175EL-1410A-00-00 ......STARTER SET......STARTER SET
-
184KM-14142-17-00 ......JET, PILOT ( 17.5)......JET, PILOT ( 17.5)
-
195EL-14918-00-00 ......RING......RING
-
203G2-1423A-59-00 ......JET, MAIN ( 42.5)......JET, MAIN ( 42.5)
-
211HX-1423E-25-00 ......JET, MAIN......JET, MAIN
-
224KM-14194-00-00 ......RING - CARB ASSY 1......RING - CARB ASSY 1
-
23354-14147-00-00 ......O-RING......O-RING
-
2498507-04012-00 ......SCREW, PAN HEAD - CARB ASSY 2......SCREW, PAN HEAD - CARB ASSY 2
-
255EL-14919-00-00 ......CLIP - CARB ASSY 2......CLIP - CARB ASSY 2
-
265DM-14985-00-00 ......FLOAT......FLOAT
-
2798507-04008-00 ......SCREW, PAN HEAD......SCREW, PAN HEAD
-
281FN-14565-00-00 ......SCREW......SCREW
-
2998507-04014-00 ......SCREW, PAN HEAD......SCREW, PAN HEAD
-
3092907-04100-00 ......WASHER, SPRING......WASHER, SPRING
-
315EL-1490H-00-00 ......DIAPHRAGM SET 5......DIAPHRAGM SET 5
-
325DM-14141-40-00 ......NOZZLE, MAIN......NOZZLE, MAIN
-
334KM-14216-00-00 ......SCREW - CARB ASSY 1......SCREW - CARB ASSY 1
-
334KM-14216-00-00 ......SCREW - CARB ASSY 2......SCREW - CARB ASSY 2
-
3498507-04010-00 ......SCREW, PAN HEAD - CARB ASSY 2......SCREW, PAN HEAD - CARB ASSY 2
-
3498507-04010-00 ......SCREW, PAN HEAD - CARB ASSY 1......SCREW, PAN HEAD - CARB ASSY 1
-
3512R-14191-00-00 ......PLUG, DRAIN......PLUG, DRAIN
-
365EL-14561-00-00 ......O-RING......O-RING
-
373F9-14118-00-00 ......CAP......CAP
-
383LN-1416A-00-00 ...O-RING...O-RING
-
394SV-24453-00-00 ...SCREW...SCREW
-
405EL-14935-00-00 ...SPRING...SPRING
-
4192902-05100-00 ...WASHER, SPRING...WASHER, SPRING
-
4295302-05700-00 ...NUT...NUT
-
4311H-14991-00-00 ...SCREW...SCREW
-
4431H-14194-00-00 ...RING...RING
-
455EL-14577-00-00 ...ROD...ROD
-
464YW-14987-00-00 ...HOSE (EXCEPT CALF)...HOSE (EXCEPT CALF)
-
465EL-14987-10-00 ...HOSE (CALF ONLY)...HOSE (CALF ONLY)
-
474WM-14565-00-00 ...SCREW...SCREW
-
485EL-85885-00-00 ...THROTTLE SENSOR ASSY...THROTTLE SENSOR ASSY
-
495EL-14592-00-00 ...SCREW...SCREW
-
504NK-14285-00-00 ...WASHER...WASHER
-
515EL-81517-00-00 ...WIRE, SUB LEAD...WIRE, SUB LEAD
-
525EL-14987-00-00 ...HOSE...HOSE
-
535EL-14991-00-00 ...SCREW...SCREW
-
5422F-14117-00-00 ...WASHER, PLUG SCREW...WASHER, PLUG SCREW
-
555EL-14212-00-00 ...SPRING, PILOT ADJ...SPRING, PILOT ADJ
-
563F7-14133-00-00 ...SPRING, THROTTLE STOP...SPRING, THROTTLE STOP
-
5798507-04006-00 ...SCREW, PAN HEAD...SCREW, PAN HEAD
-
5890461-06087-00 ...CLAMP...CLAMP
-
59127-14198-00-00 ...GASKET (CALF ONLY)...GASKET (CALF ONLY)
-
59127-14198-00-00 ...GASKET (EXCEPT CALF)...GASKET (EXCEPT CALF)
-
603DM-14216-00-00 ...SCREW (CALF ONLY)...SCREW (CALF ONLY)
-
603DM-14216-00-00 ...SCREW (EXCEPT CALF)...SCREW (EXCEPT CALF)
-
615EL-14197-00-00 ...PIPE...PIPE
-
624DH-82103-00-00 ...TERMINAL 1...TERMINAL 1
-
631A8-14953-00-00 ...WASHER...WASHER
-
64812-14137-00-00 ...CLIP...CLIP
-
653BT-83790-00-00 ...HEATER ASSY (30W)...HEATER ASSY (30W)
-
665CY-14951-00-00 ...WASHER...WASHER
-
6735H-14139-00-00 ...CLIP, PIPE...CLIP, PIPE
-
6891492-10008-00 ...PIN, COTTER...PIN, COTTER
-
6992906-06100-00 ...WASHER, SPRING...WASHER, SPRING
-
7095382-06700-00 ...NUT...NUT
-
715EL-14149-00-00 ...PIPE...PIPE
-
725EL-14103-00-00 ...THROTTLE SCREW SET...THROTTLE SCREW SET
-
735EL-14251-00-00 ...NIPPLE...NIPPLE
-
7498507-04010-00 ...SCREW, PAN HEAD...SCREW, PAN HEAD
-
7592902-06600-00 ...WASHER, PLATE...WASHER, PLATE
-
761FK-14179-00-00 ...WASHER, STARTER LEVER (CALF ONLY)...WASHER, STARTER LEVER (CALF ONLY)
-
775EL-14592-10-00 ...SCREW (CALF ONLY)...SCREW (CALF ONLY)
-
784X7-2149Y-00-00 ...FILTER ASSY (CALF ONLY)...FILTER ASSY (CALF ONLY)
-
798A7-14139-00-00 ...CLIP, PIPE (CALF ONLY)...CLIP, PIPE (CALF ONLY)
-
80895-14169-00-00 ...CAP (CALF ONLY)...CAP (CALF ONLY)
-
815EL-14987-20-00 ...HOSE (CALF ONLY)...HOSE (CALF ONLY)
