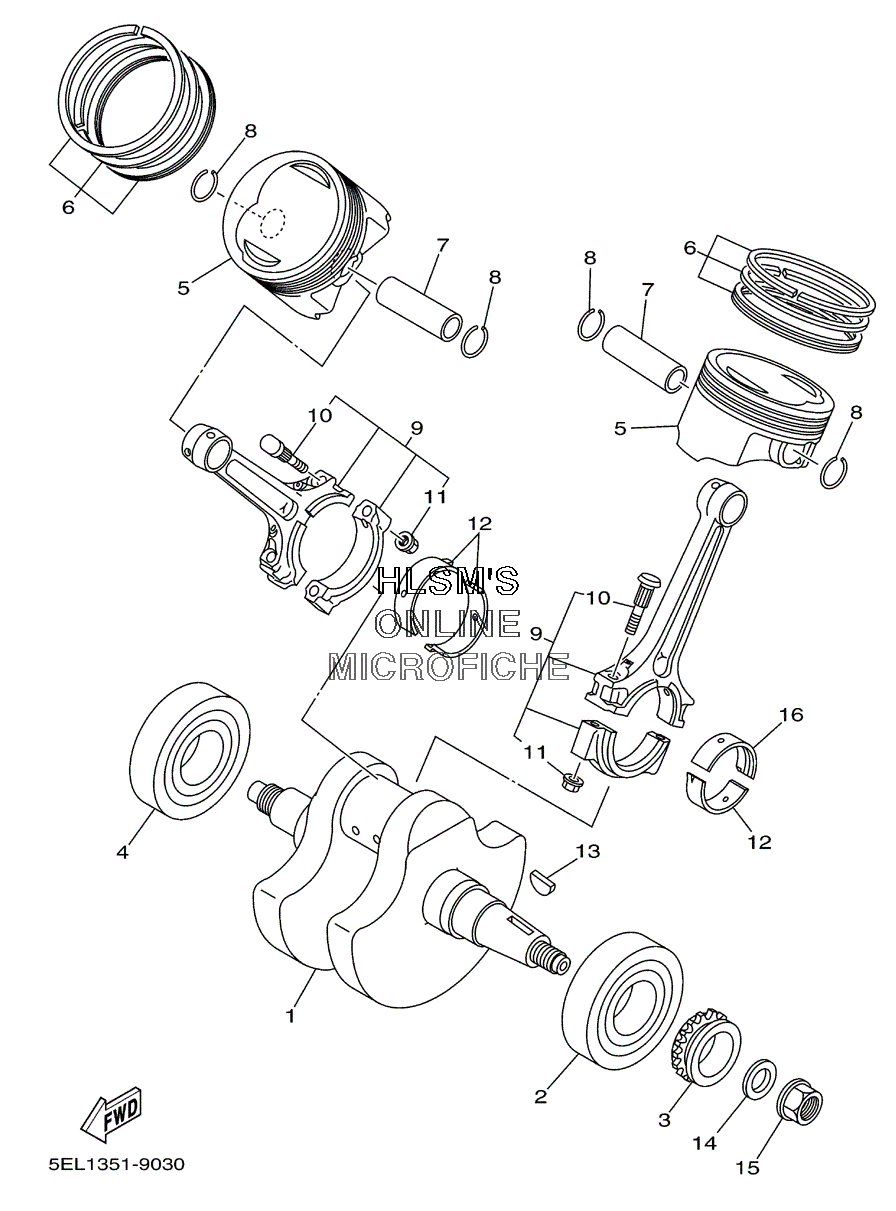

CRANKSHAFT - PISTON для Yamaha XVS 1100 A V-STAR CLASSIC - 2000 года выпуска
-
№АртикулНазвание
-
15EL-11411-10-00 CRANKSHAFTCRANKSHAFT
-
293306-30808-00 BEARINGBEARING
-
34X7-13354-00-00 SPROCKET, DRIVESPROCKET, DRIVE
-
493306-30808-00 BEARINGBEARING
-
55EL-11631-00-00 PISTON (STD)PISTON (STD)
-
61TA-11610-00-00 PISTON RING SET (STD)PISTON RING SET (STD)
-
74WM-11633-00-00 PIN, PISTONPIN, PISTON
-
893450-24028-00 CIRCLIPCIRCLIP
-
95EL-11650-10-00 CONNECTING ROD ASSYCONNECTING ROD ASSY
-
104X7-11654-01-00 ...BOLT, CONNECTING ROD...BOLT, CONNECTING ROD
-
1190179-09379-00 ...NUT...NUT
-
124X7-11656-00-00 PLANE BEARING, CONNECTING ROD (BLUE)PLANE BEARING, CONNECTING ROD (BLUE)
