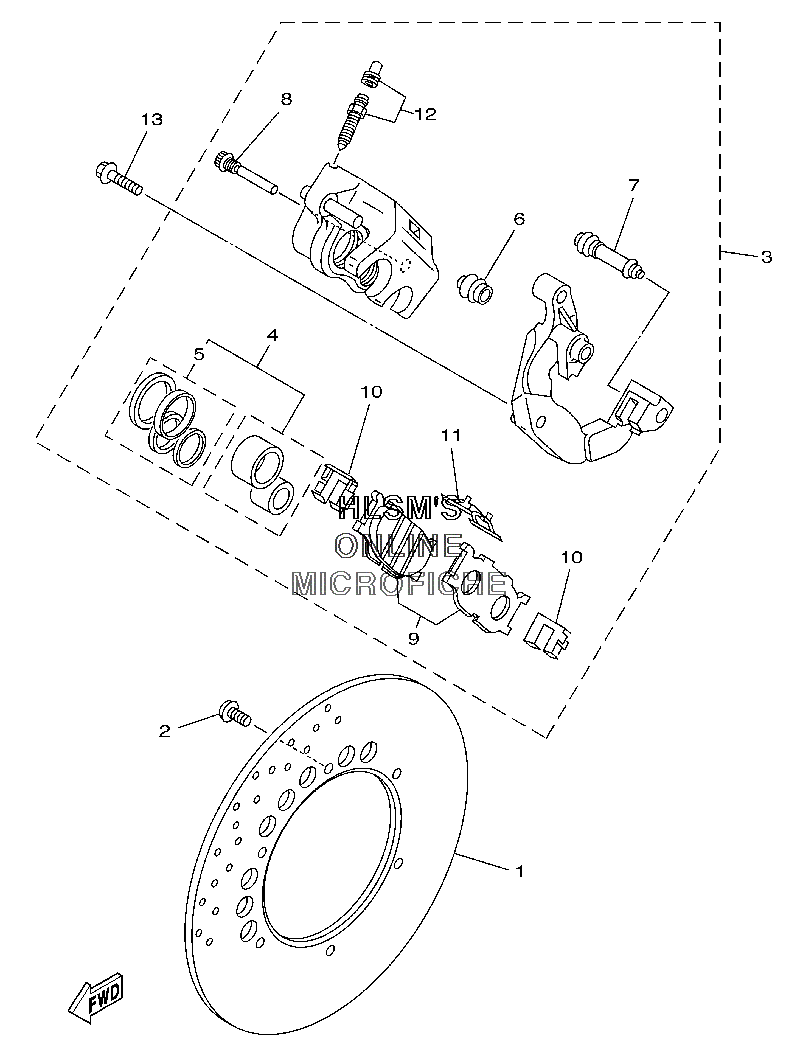

BRAKE CALIPER - FRONT для Yamaha XVS 650 V-STAR CUSTOM CALIFORNIA - 2000 года выпуска
-
№АртикулНазвание
-
13JB-2582U-01-00 DISC, BRAKE (RIGHT)DISC, BRAKE (RIGHT)
-
290109-083G4-00 BOLTBOLT
-
34TR-2580U-00-00 CALIPER ASSY (RIGHT)CALIPER ASSY (RIGHT)
-
43JB-W0057-00-00 ...PISTON ASSY, CALIPER...PISTON ASSY, CALIPER
-
53JB-W0047-00-00 ......CALIPER SEAL KIT......CALIPER SEAL KIT
-
65R2-25937-00-00 ...BOOT 2...BOOT 2
-
73YX-25937-00-00 ...BOOT 2...BOOT 2
-
83YX-25926-00-00 ...BOLT...BOLT
-
94TR-W0045-00-00 ...BRAKE PAD KIT...BRAKE PAD KIT
-
103YX-25919-00-00 ...SUPPORT, PAD...SUPPORT, PAD
-
113YX-25929-00-00 ...SPRING, ANTI RATTLE...SPRING, ANTI RATTLE
-
1251L-W0048-00-00 ...BLEED SCREW KIT...BLEED SCREW KIT
-
1390105-10638-00 BOLT, WASHER BASEDBOLT, WASHER BASED
