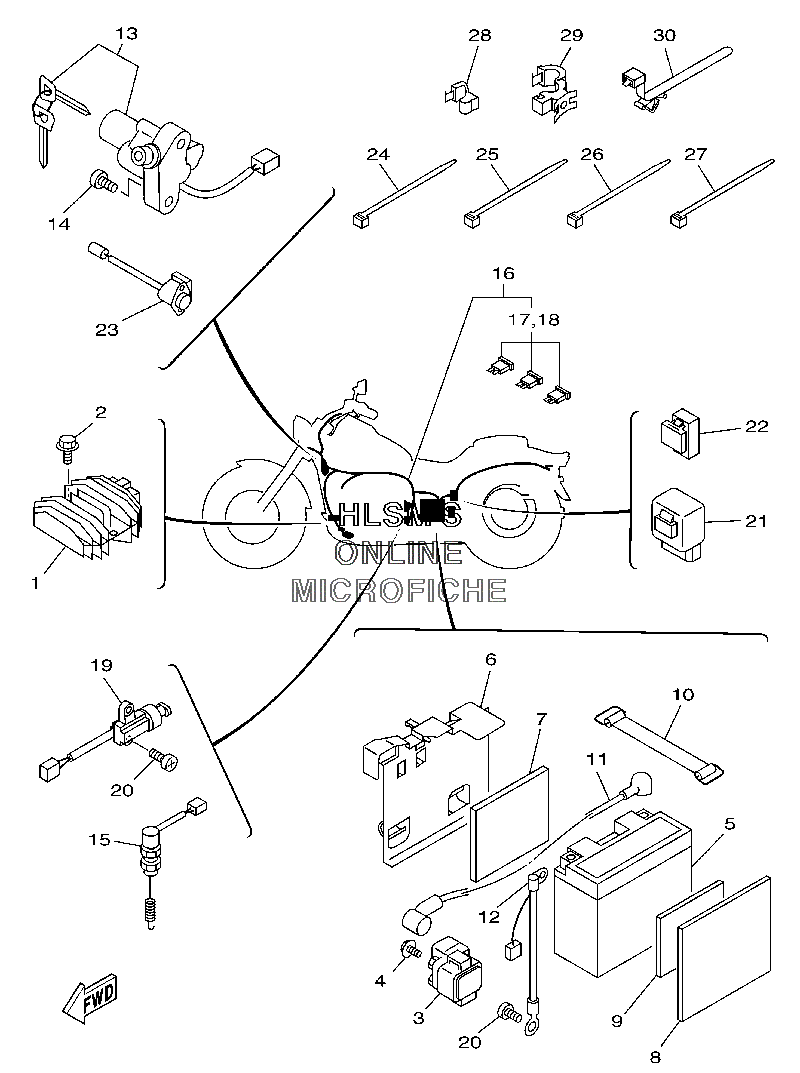

ELECTRICAL 1 для Yamaha XVS 650 V-STAR CUSTOM CALIFORNIA - 2000 года выпуска
-
№АртикулНазвание
-
15BN-81960-00-00 RECTIFIER & REGULATOR ASSYRECTIFIER & REGULATOR ASSY
-
295804-06020-00 BOLT, FLANGEBOLT, FLANGE
-
34BH-81940-00-00 STARTER RELAY ASSYSTARTER RELAY ASSY
-
495027-06008-00 BOLT, FLANGEBOLT, FLANGE
-
54TX-82100-01-00 BATTERY ASSY (GT12B-4)BATTERY ASSY (GT12B-4)
-
65BN-82129-00-00 COVER, BATTERYCOVER, BATTERY
-
729N-14425-00-00 DAMPER 1DAMPER 1
-
84VR-2176E-00-00 PLATEPLATE
-
929N-14425-00-00 DAMPER 1DAMPER 1
-
1013382-13100-00 BAND, BATTERYBAND, BATTERY
-
115BN-82115-00-00 WIRE, PLUS LEADWIRE, PLUS LEAD
-
125BN-82116-00-00 WIRE, MINUS LEADWIRE, MINUS LEAD
-
134TR-82501-00-00 MAIN SWITCH STEERING LOCKMAIN SWITCH STEERING LOCK
-
1492017-08020-00 BOLT, BUTTON HEADBOLT, BUTTON HEAD
-
153HN-82530-11-00 STOP SWITCH ASSYSTOP SWITCH ASSY
-
165BN-82590-00-00 WIRE HARNESS ASSYWIRE HARNESS ASSY
-
1736Y-82151-00-00 ...FUSE (15A-BL)...FUSE (15A-BL)
-
1842X-82151-00-00 ...FUSE (10A-BL)...FUSE (10A-BL)
-
193LD-82566-80-00 SWITCH, SIDE STANDSWITCH, SIDE STAND
-
2090157-05079-00 SCREW, PAN HEADSCREW, PAN HEAD
-
213EN-81950-00-00 RELAY ASSYRELAY ASSY
-
221UY-81950-92-00 RELAY ASSYRELAY ASSY
-
234TR-82560-00-00 THERMO SWITCH ASSYTHERMO SWITCH ASSY
-
241UA-82591-00-00 BANDBAND
-
251UA-82591-00-00 BANDBAND
-
261UA-82591-00-00 BANDBAND
-
271UA-82591-00-00 BANDBAND
-
2890464-05188-00 CLAMPCLAMP
-
2990464-20191-00 CLAMPCLAMP
-
3090464-20213-00 CLAMPCLAMP
