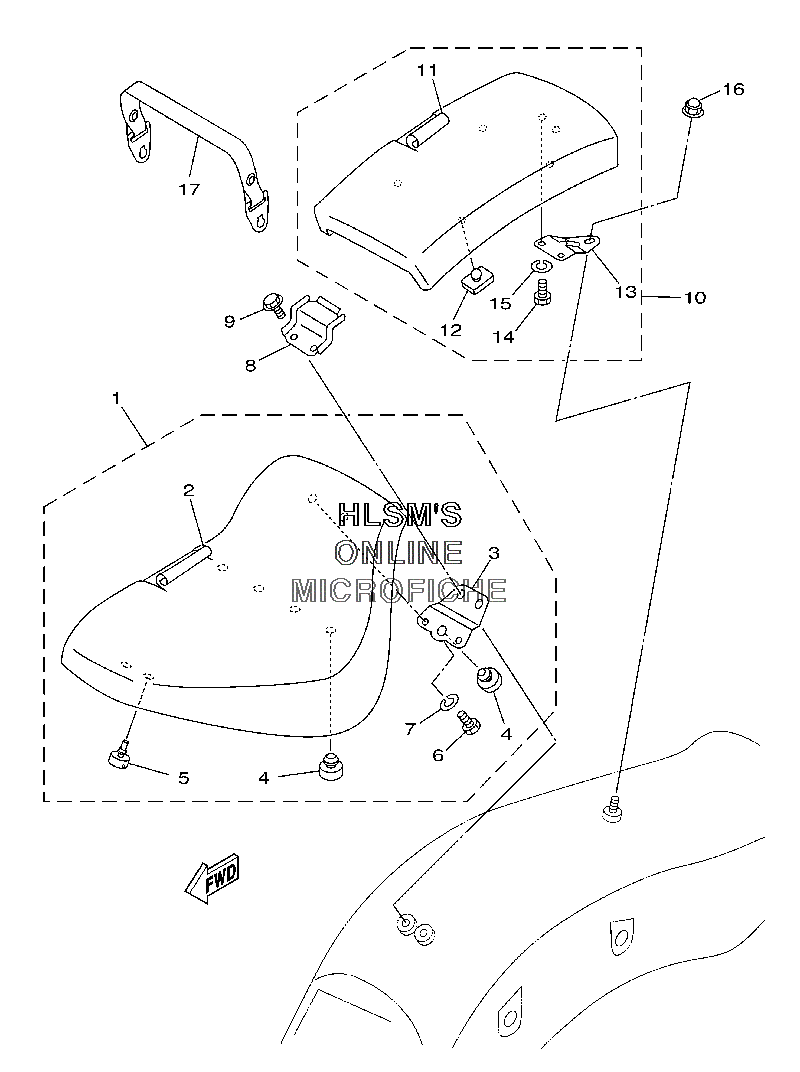

SEAT для Yamaha XVS 650 V-STAR CUSTOM CALIFORNIA - 2000 года выпуска
-
№АртикулНазвание
-
14VR-24710-10-00 SINGLE SEAT ASSYSINGLE SEAT ASSY
-
24VR-24711-00-00 ...COVER, SINGLE SEAT...COVER, SINGLE SEAT
-
34TR-2475H-00-00 ...BRACKET, SEAT LEVER 1...BRACKET, SEAT LEVER 1
-
422W-24741-00-00 ...PAD, SEAT...PAD, SEAT
-
535T-24724-00-00 ...DAMPER, SEAT...DAMPER, SEAT
-
697007-06012-00 ...BOLT...BOLT
-
792907-06100-00 ...WASHER, SPRING...WASHER, SPRING
-
84TR-2475K-00-00 BRACKET 3BRACKET 3
-
991317-06025-00 BOLTBOLT
-
104TR-24750-00-00 TANDEM SEAT ASSYTANDEM SEAT ASSY
-
114TR-24751-00-00 ...COVER, TANDEM SEAT...COVER, TANDEM SEAT
-
1250924-72400-00 ...DAMPER, SEAT...DAMPER, SEAT
-
134TR-2475J-00-00 ...BRACKET, SEAT LEVER 2...BRACKET, SEAT LEVER 2
-
1497007-06012-00 ...BOLT...BOLT
-
1592907-06100-00 ...WASHER, SPRING...WASHER, SPRING
-
1690176-06047-00 NUT, CROWNNUT, CROWN
-
174TR-24720-00-00 SEAT BAND ASSYSEAT BAND ASSY
