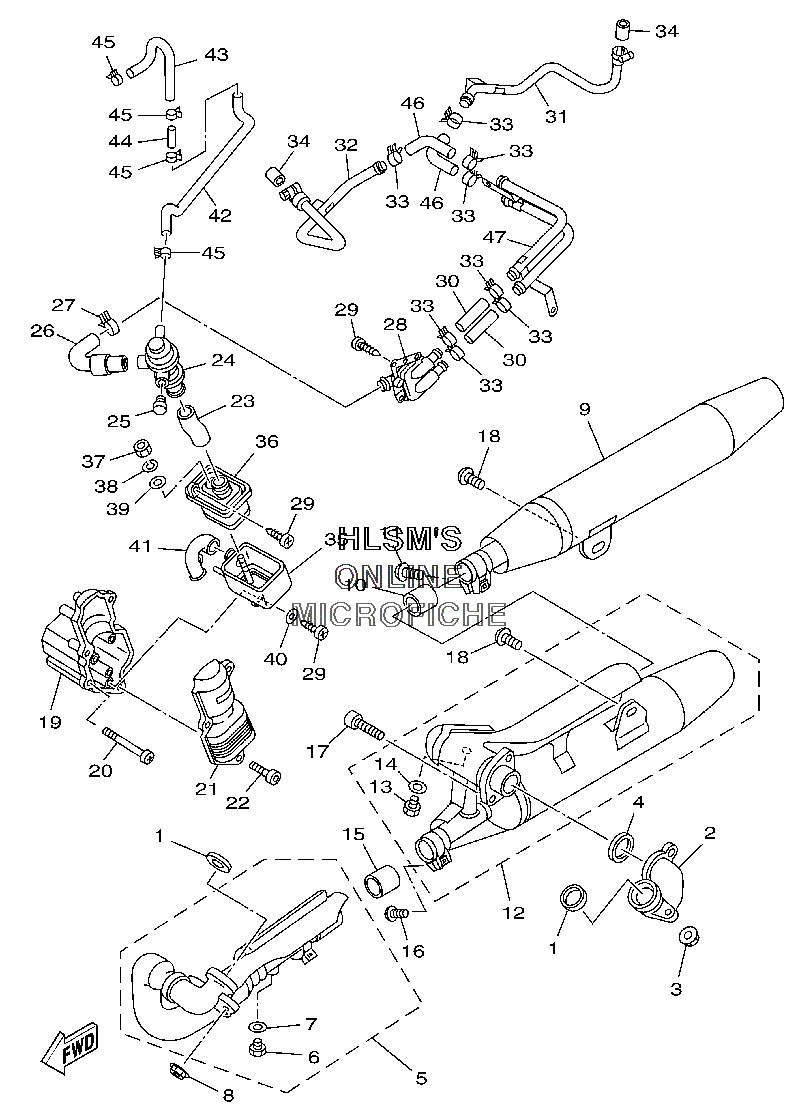

EXHAUST для Yamaha XVS 650 V-STAR CUSTOM - 2000 года выпуска
-
№АртикулНазвание
-
14TR-14613-00-00 GASKET, EXHAUST PIPEGASKET, EXHAUST PIPE
-
24TR-14615-00-00 JOINT, EXHAUST 1JOINT, EXHAUST 1
-
390185-08097-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
44BR-14613-00-00 GASKET, EXHAUST PIPEGASKET, EXHAUST PIPE
-
54XP-14620-00-00 EXHAUST PIPE ASSY 2EXHAUST PIPE ASSY 2
-
690101-06576-00 ...BOLT...BOLT
-
792990-06600-00 ...WASHER, PLATE...WASHER, PLATE
-
890185-08097-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
95BN-14703-00-00 MUFFLER COMP 1MUFFLER COMP 1
-
104BH-14714-00-00 GASKET, MUFFLERGASKET, MUFFLER
-
1192017-08025-00 BOLT, BUTTON HEADBOLT, BUTTON HEAD
-
125BN-14704-00-00 MUFFLER COMP 2MUFFLER COMP 2
-
1390101-06576-00 ...BOLT...BOLT
-
1492990-06600-00 ...WASHER, PLATE...WASHER, PLATE
-
154BH-14714-00-00 GASKET, MUFFLERGASKET, MUFFLER
-
1692017-08025-00 BOLT, BUTTON HEADBOLT, BUTTON HEAD
-
1791314-08035-00 BOLTBOLT
-
1892017-10020-00 BOLT, BUTTON HEADBOLT, BUTTON HEAD
-
195BN-14604-00-00 COVER, AIR 1COVER, AIR 1
-
2090159-06200-00 SCREW, WITH WASHERSCREW, WITH WASHER
-
215BN-14603-00-00 COVER 1COVER 1
-
2291314-06020-00 BOLTBOLT
-
235BN-14882-00-00 HOSE, BEND 2HOSE, BEND 2
-
245BN-14840-00-00 AIR CUT VALVE ASS'YAIR CUT VALVE ASS'Y
-
2590338-10132-00 PLUGPLUG
-
265BN-14883-00-00 HOSE, BEND 3HOSE, BEND 3
-
2790467-19065-00 CLIPCLIP
-
285BN-14808-00-00 REED VALVE ASSYREED VALVE ASSY
-
2997707-60114-00 SCREW, TAPPINGSCREW, TAPPING
-
305BN-14884-00-00 HOSE, BEND 4HOSE, BEND 4
-
315BN-14871-00-00 PIPE 1PIPE 1
-
325BN-14872-00-00 PIPE 2PIPE 2
-
3390468-08104-00 CLIPCLIP
-
3442H-14714-10-00 GASKET, MUFFLERGASKET, MUFFLER
-
355BN-14857-00-00 CASE, AIR CLEANERCASE, AIR CLEANER
-
365BN-14858-00-00 CAP, CASECAP, CASE
-
3795607-05100-00 NUT, UNUT, U
-
3892907-05200-00 WASHERWASHER
-
3990202-05057-00 WASHER, PLATEWASHER, PLATE
-
4090201-061H1-00 WASHER, PLATE (THICKNESS=0.5)WASHER, PLATE (THICKNESS=0.5)
-
415BN-14885-00-00 HOSE, BEND 5HOSE, BEND 5
-
425BN-13542-00-00 HOSE, VACUUM SENSING 1HOSE, VACUUM SENSING 1
-
435BN-13544-00-00 HOSE, VACUUM SENSING 2HOSE, VACUUM SENSING 2
-
444MM-13582-00-00 PIPEPIPE
-
4590467-08092-00 CLIPCLIP
-
465BN-14881-00-00 HOSE, BEND 1HOSE, BEND 1
-
475BN-14875-00-00 PIPE 5PIPE 5
