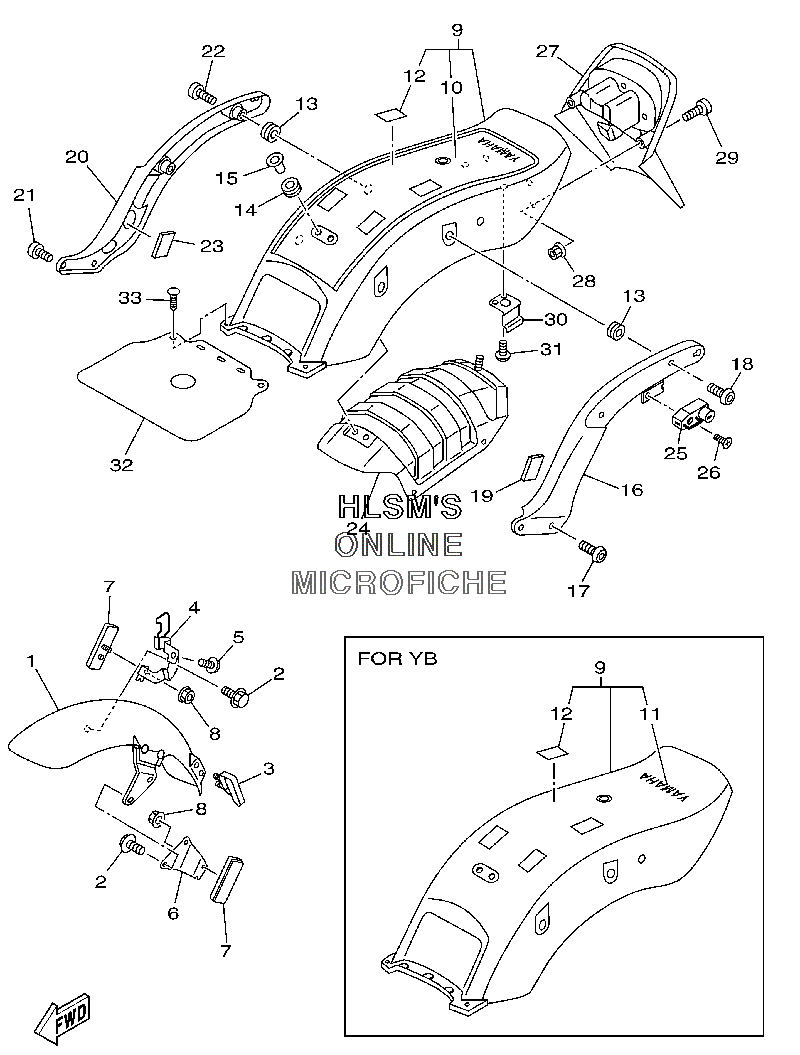

FENDER для Yamaha XVS 650 V-STAR CUSTOM - 2000 года выпуска
-
№АртикулНазвание
-
14TR-21510-01-33 FRONT FENDER COMP. (033) (YAMAHA BLACK)FRONT FENDER COMP. (033) (YAMAHA BLACK)
-
14TR-21510-01-E9 FRONT FENDER COMP. (0E9) (CARMINE RED)FRONT FENDER COMP. (0E9) (CARMINE RED)
-
295027-08012-00 BOLT, FLANGEBOLT, FLANGE
-
34VR-21518-00-00 HOLDER, CABLEHOLDER, CABLE
-
45FB-21598-00-00 HOLDER, WIRE 2HOLDER, WIRE 2
-
595807-06012-00 BOLT, FLANGEBOLT, FLANGE
-
65FB-85112-00-00 BRACKET, REFLECTOR 1BRACKET, REFLECTOR 1
-
711H-85110-01-00 REFLECTOR ASSYREFLECTOR ASSY
-
895707-05500-00 NUT, FLANGENUT, FLANGE
-
94TR-Y2161-J1-33 REAR FENDER COMP. (033) (YAMAHA BLACK)REAR FENDER COMP. (033) (YAMAHA BLACK)
-
94TR-Y2161-K1-FW REAR FENDER COMP. (0FW) (BRIGHT CHEERY RED)REAR FENDER COMP. (0FW) (BRIGHT CHEERY RED)
-
105FB-21675-00-00 ...GRAPHIC, REAR FENDER (0FW) (BRIGHT CHEERY RED)...GRAPHIC, REAR FENDER (0FW) (BRIGHT CHEERY RED)
-
1199247-00080-00 ...EMBLEM, YAMAHA (033) (YAMAHA BLACK)...EMBLEM, YAMAHA (033) (YAMAHA BLACK)
-
123SP-21732-00-00 ...SEAL 1...SEAL 1
-
1390480-18418-00 GROMMETGROMMET
-
1490480-13398-00 GROMMETGROMMET
-
1590387-067N5-00 COLLARCOLLAR
-
164TR-21613-01-00 STAY, FENDER 1STAY, FENDER 1
-
1792014-10025-00 BOLT, BUTTON HEADBOLT, BUTTON HEAD
-
1892014-08040-00 BOLT, BUTTON HEADBOLT, BUTTON HEAD
-
193SX-2139X-00-00 DAMPERDAMPER
-
204TR-21614-01-00 STAY, FENDER 2STAY, FENDER 2
-
2192014-10025-00 BOLT, BUTTON HEADBOLT, BUTTON HEAD
-
2292014-08040-00 BOLT, BUTTON HEADBOLT, BUTTON HEAD
-
233SX-2139X-00-00 DAMPERDAMPER
-
244TR-21643-00-00 STAY, REARSTAY, REAR
-
254R8-21308-00-00 HELMET HANGER ASSYHELMET HANGER ASSY
-
2690149-06154-00 SCREWSCREW
-
275FB-2162R-00-00 FENDER 2FENDER 2
-
2890179-05523-00 NUTNUT
-
2990154-05011-00 SCREW, BINDINGSCREW, BINDING
-
304TR-21679-00-00 HOLDER, HARNESSHOLDER, HARNESS
-
3190167-05025-00 SCREW, TAPPINGSCREW, TAPPING
-
324TR-21629-00-00 GUARD, MUDGUARD, MUD
-
3390269-05039-00 RIVETRIVET
