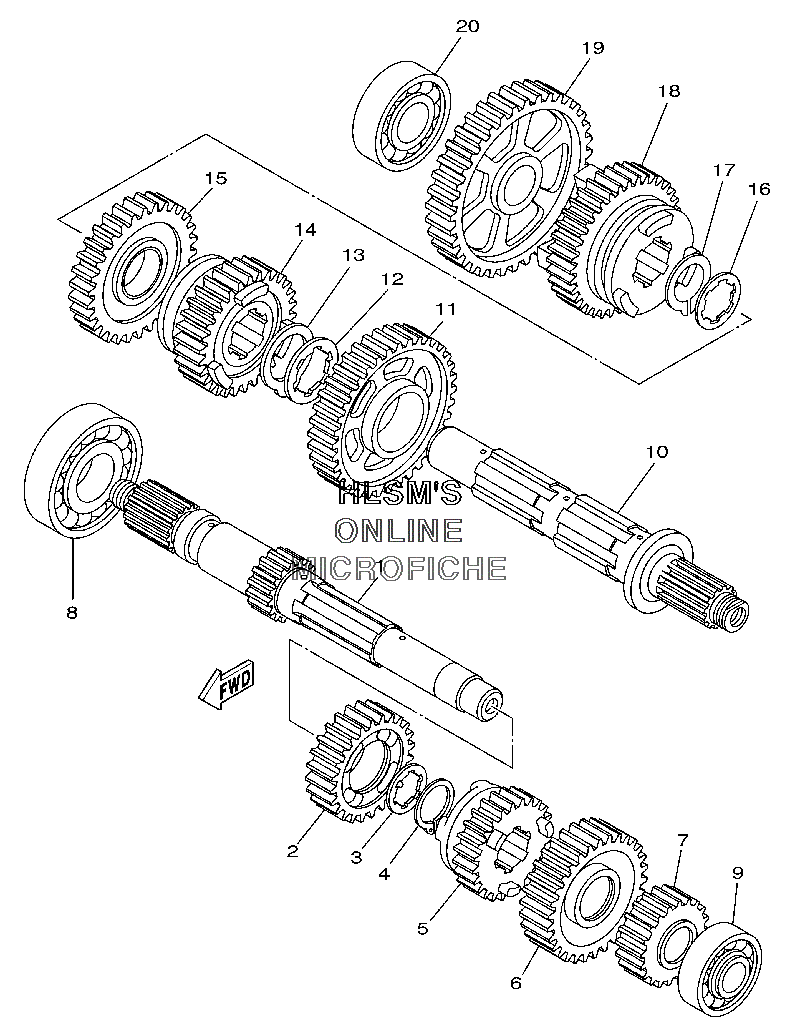

TRANSMISSION для Yamaha XVS 650 V-STAR CUSTOM - 2000 года выпуска
-
№АртикулНазвание
-
14VR-17411-00-00 AXLE, MAINAXLE, MAIN
-
23JB-17141-00-00 GEAR, 4TH PINION (24 TEETH)GEAR, 4TH PINION (24 TEETH)
-
390209-22191-00 WASHERWASHER
-
493440-25084-00 CIRCLIPCIRCLIP
-
54VR-17131-00-00 GEAR, 3RD PINIONGEAR, 3RD PINION
-
64VR-17151-00-00 GEAR, 5TH PINIONGEAR, 5TH PINION
-
74KU-17121-00-00 GEAR, 2ND PINION (20 TEETH)GEAR, 2ND PINION (20 TEETH)
-
893306-30525-00 BEARINGBEARING
-
993306-00401-00 BEARINGBEARING
-
1022U-17402-00-00 DRIVE AXLE ASSYDRIVE AXLE ASSY
-
114KU-17221-00-00 GEAR, 2ND WHEEL (38 TEETH)GEAR, 2ND WHEEL (38 TEETH)
-
1290209-27192-00 WASHERWASHER
-
1393440-30077-00 CIRCLIPCIRCLIP
-
144VR-17251-00-00 GEAR, 5TH WHEELGEAR, 5TH WHEEL
-
154VR-17231-00-00 GEAR, 3RD WHEELGEAR, 3RD WHEEL
-
1690209-22191-00 WASHERWASHER
-
1793440-25084-00 CIRCLIPCIRCLIP
-
184TR-17241-00-00 GEAR, 4TH WHEELGEAR, 4TH WHEEL
-
1922U-17211-00-00 GEAR, 1ST WHEEL (38 TEETH)GEAR, 1ST WHEEL (38 TEETH)
-
2093306-00428-00 BEARINGBEARING
