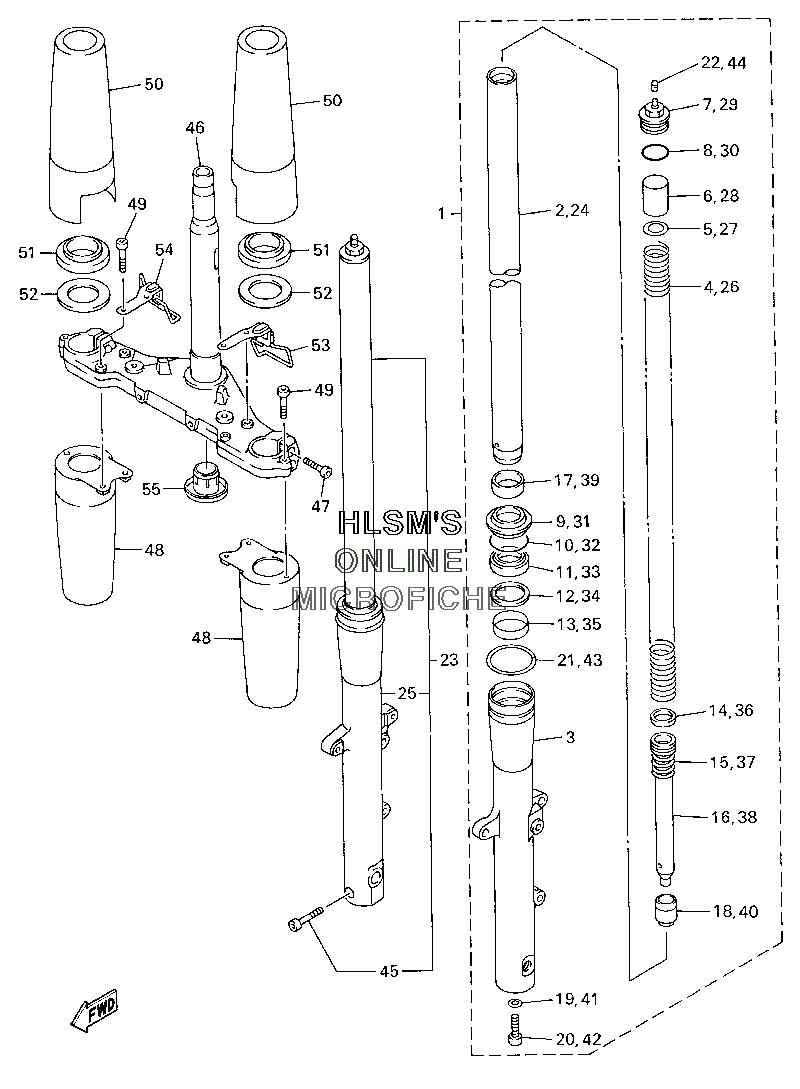

FORK - FRONT для Yamaha XVZ 1300 A ROYAL STAR - 2000 года выпуска
-
№АртикулНазвание
-
14YP-23102-00-00 FRONT FORK ASSY (LEFT HAND)FRONT FORK ASSY (LEFT HAND)
-
24NK-23110-00-00 ...INNER TUBE COMP.1...INNER TUBE COMP.1
-
34NK-23126-00-00 ...TUBE, OUTER (LEFT)...TUBE, OUTER (LEFT)
-
44NK-23141-01-00 ...SPRING, FRONT FORK...SPRING, FRONT FORK
-
54NK-23142-00-00 ...SEAT, SPRING UPPER...SEAT, SPRING UPPER
-
64NK-23118-01-00 ...SPACER...SPACER
-
74YP-23111-00-00 ...BOLT, CAP...BOLT, CAP
-
84NK-23147-00-00 ...O-RING...O-RING
-
94NK-23144-00-00 ...SEAL, DUST...SEAL, DUST
-
1034L-23153-00-00 ...RING, SNAP...RING, SNAP
-
114NK-23145-00-00 ...OIL SEAL...OIL SEAL
-
124NK-23146-00-00 ...WASHER, OIL SEAL...WASHER, OIL SEAL
-
134NK-23125-00-00 ...METAL, SLIDE 1...METAL, SLIDE 1
-
144NK-23157-00-00 ...RING, PISTON...RING, PISTON
-
154NK-23151-00-00 ...SPRING, REBOUND...SPRING, REBOUND
-
164NK-23171-00-00 ...PISTON, FRONT FORK...PISTON, FRONT FORK
-
174NK-23135-00-00 ...METAL, SLIDE 2...METAL, SLIDE 2
-
184NK-23166-00-00 ...SPACER, OIL LOCK...SPACER, OIL LOCK
-
193MA-23129-10-00 ...GASKET, DRAIN PLUG...GASKET, DRAIN PLUG
-
204NK-23181-00-00 ...BOLT, HEXAGON SOCKET HEAD...BOLT, HEXAGON SOCKET HEAD
-
214NK-23193-00-00 ...GUIDE, BOOT...GUIDE, BOOT
-
224V1-23184-L0-00 ...CAP, AIR VALVE...CAP, AIR VALVE
-
234YP-23103-00-00 FRONT FORK ASSY (RIGHT HAND)FRONT FORK ASSY (RIGHT HAND)
-
244NK-23110-00-00 ...INNER TUBE COMP.1...INNER TUBE COMP.1
-
254NK-23136-00-00 ...TUBE, OUTER (RIGHT)...TUBE, OUTER (RIGHT)
-
264NK-23141-01-00 ...SPRING, FRONT FORK...SPRING, FRONT FORK
-
274NK-23142-00-00 ...SEAT, SPRING UPPER...SEAT, SPRING UPPER
-
284NK-23118-01-00 ...SPACER...SPACER
-
294YP-23111-00-00 ...BOLT, CAP...BOLT, CAP
-
304NK-23147-00-00 ...O-RING...O-RING
-
314NK-23144-00-00 ...SEAL, DUST...SEAL, DUST
-
3234L-23153-00-00 ...RING, SNAP...RING, SNAP
-
334NK-23145-00-00 ...OIL SEAL...OIL SEAL
-
344NK-23146-00-00 ...WASHER, OIL SEAL...WASHER, OIL SEAL
-
354NK-23125-00-00 ...METAL, SLIDE 1...METAL, SLIDE 1
-
364NK-23157-00-00 ...RING, PISTON...RING, PISTON
-
374NK-23151-00-00 ...SPRING, REBOUND...SPRING, REBOUND
-
384NK-23171-00-00 ...PISTON, FRONT FORK...PISTON, FRONT FORK
-
394NK-23135-00-00 ...METAL, SLIDE 2...METAL, SLIDE 2
-
404NK-23166-00-00 ...SPACER, OIL LOCK...SPACER, OIL LOCK
-
413MA-23129-10-00 ...GASKET, DRAIN PLUG...GASKET, DRAIN PLUG
-
424NK-23181-00-00 ...BOLT, HEXAGON SOCKET HEAD...BOLT, HEXAGON SOCKET HEAD
-
434NK-23193-00-00 ...GUIDE, BOOT...GUIDE, BOOT
-
444V1-23184-L0-00 ...CAP, AIR VALVE...CAP, AIR VALVE
-
451KT-23181-00-00 ...BOLT, HEXAGON SOCKET HEAD...BOLT, HEXAGON SOCKET HEAD
-
464YP-23340-00-00 UNDER BRACKET COMP.UNDER BRACKET COMP.
-
4738W-23181-00-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
484NK-23123-00-00 COVER, LOWER 1COVER, LOWER 1
-
494NK-23181-10-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
504NK-23121-00-00 COVER, UPPER 1COVER, UPPER 1
-
514NK-23163-00-00 GASKETGASKET
-
524NK-23165-00-00 WASHER, FELTWASHER, FELT
-
534NK-2331E-00-00 GUIDE, CABLEGUIDE, CABLE
-
544NK-23389-00-00 GUIDE, CABLEGUIDE, CABLE
-
554KM-23123-01-00 COVER, LOWER 1COVER, LOWER 1
