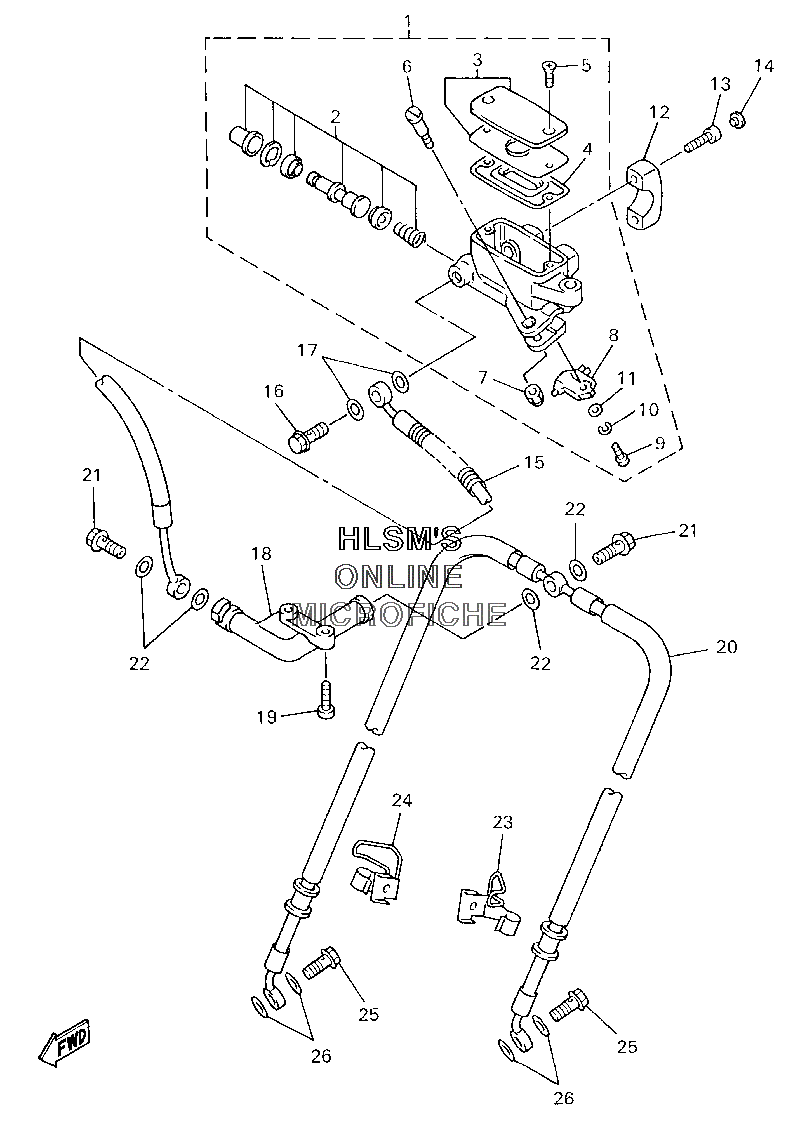

MASTER CYLINDER - FRONT для Yamaha XVZ 1300 A ROYAL STAR - 2000 года выпуска
-
№АртикулНазвание
-
14NK-25870-00-00 MASTER CYLINDER SUB ASSYMASTER CYLINDER SUB ASSY
-
24K0-W0041-50-00 ...CYLINDER KIT, MASTER...CYLINDER KIT, MASTER
-
34NK-W2585-00-00 ...RESERVOIR CAP SET...RESERVOIR CAP SET
-
44NK-25854-00-00 ...DIAPHRAGM, RESERVOIR...DIAPHRAGM, RESERVOIR
-
54NK-2589H-00-00 ...SCREW...SCREW
-
64NK-2589F-00-00 ...BOLT, LEVER...BOLT, LEVER
-
795604-06100-00 ...NUT, U...NUT, U
-
83FV-83980-00-00 ...FRONT STOP SWITCH ASSY...FRONT STOP SWITCH ASSY
-
998507-04012-00 ...SCREW, PAN HEAD...SCREW, PAN HEAD
-
1092907-04100-00 ...WASHER, SPRING...WASHER, SPRING
-
1192907-04600-00 ...WASHER...WASHER
-
124NK-25867-00-00 BRACKET, MASTER CYLINDERBRACKET, MASTER CYLINDER
-
1391314-06025-00 BOLTBOLT
-
1490338-06162-00 PLUGPLUG
-
154NK-25872-01-00 HOSE, BRAKE 1HOSE, BRAKE 1
-
1690401-10159-00 BOLT, UNIONBOLT, UNION
-
1790201-10118-00 WASHER, PLATEWASHER, PLATE
-
184NK-25885-00-00 JOINTJOINT
-
1991317-06020-00 BOLTBOLT
-
204NK-25873-01-00 HOSE, BRAKE 2HOSE, BRAKE 2
-
2190401-10159-00 BOLT, UNIONBOLT, UNION
-
2290201-10118-00 WASHER, PLATEWASHER, PLATE
-
234NK-25875-00-00 HOLDER, BRAKE HOSE 1HOLDER, BRAKE HOSE 1
-
244NK-25886-00-00 HOLDER, BRAKE HOSEHOLDER, BRAKE HOSE
-
2590401-10159-00 BOLT, UNIONBOLT, UNION
-
2690201-10118-00 WASHER, PLATEWASHER, PLATE
