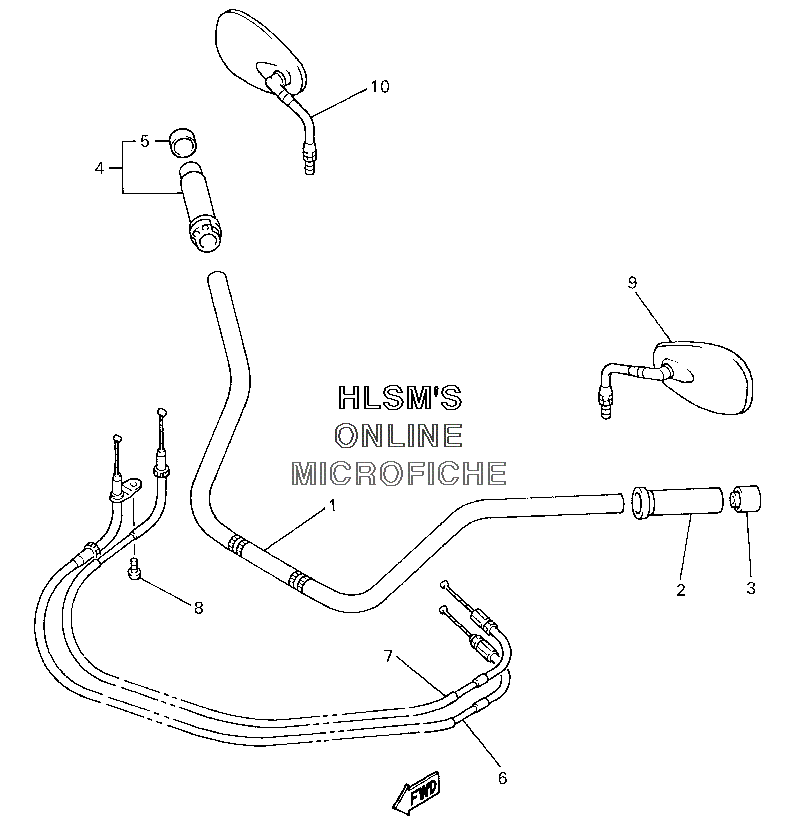

STEERING HANDLEBAR - LEVER для Yamaha XVZ 1300 A ROYAL STAR - 2000 года выпуска
-
№АртикулНазвание
-
15EY-26111-00-00 HANDLEBARHANDLEBAR
-
24NK-26241-00-00 GRIP (LEFT)GRIP (LEFT)
-
34NK-2628J-00-00 CAP, GRIPCAP, GRIP
-
44NK-26240-00-00 GRIP ASSYGRIP ASSY
-
54NK-2635J-00-00 ...CAP 2...CAP 2
-
64NK-26311-00-00 CABLE, THROTTLE 1CABLE, THROTTLE 1
-
74NK-26312-00-00 CABLE, THROTTLE 2CABLE, THROTTLE 2
-
898507-05008-00 SCREW, PAN HEADSCREW, PAN HEAD
-
94NK-26280-00-00 REAR VIEW MIRROR ASSY (LEFT)REAR VIEW MIRROR ASSY (LEFT)
-
104NK-26290-00-00 REAR VIEW MIRROR ASSY (RIGHT)REAR VIEW MIRROR ASSY (RIGHT)
