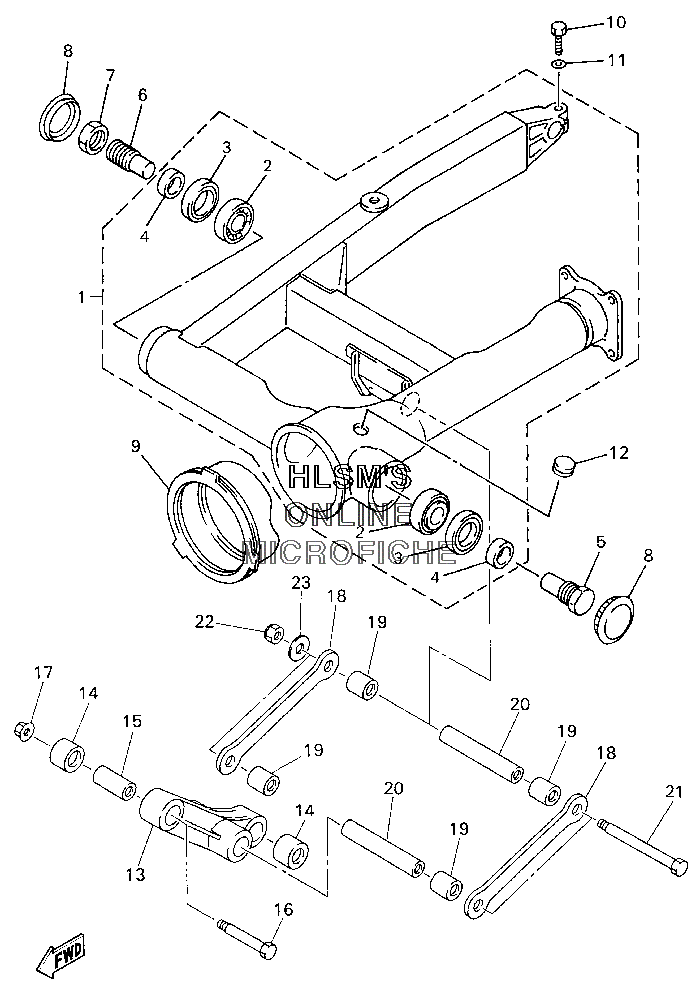

ARM - REAR для Yamaha XVZ 1300 TF ROYAL STAR VENTURE - 2000 года выпуска
-
№АртикулНазвание
-
14XY-W2211-00-35 REAR ARM COMP.REAR ARM COMP.
-
293332-00050-00 ...BEARING (OPT)...BEARING (OPT)
-
293332-00051-00 ...BEARING (OPT)...BEARING (OPT)
-
393106-28023-00 ...OIL SEAL...OIL SEAL
-
490387-204H5-00 ...COLLAR...COLLAR
-
54NK-2214H-00-00 SHAFT, PIVOT 2SHAFT, PIVOT 2
-
64NK-22141-00-00 SHAFT, PIVOTSHAFT, PIVOT
-
726H-22143-00-00 NUTNUT
-
82H7-2219X-00-00 COVERCOVER
-
926H-22189-00-00 BOOT, RUBBERBOOT, RUBBER
-
1097024-08025-00 BOLTBOLT
-
1192904-08600-00 WASHERWASHER
-
1290338-20113-00 PLUGPLUG
-
134XY-2217A-00-00 ARM, RELAYARM, RELAY
-
1493317-42060-00 BEARINGBEARING
-
1590387-122J6-00 COLLARCOLLAR
-
1690109-104E4-00 BOLTBOLT
-
1795607-10200-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
184XY-2217M-00-00 ARM 1ARM 1
-
1993317-41761-00 BEARINGBEARING
-
2090387-126T1-00 COLLARCOLLAR
-
2190101-12673-00 BOLTBOLT
-
2290185-12119-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
2390201-126A7-00 WASHER, PLATEWASHER, PLATE
