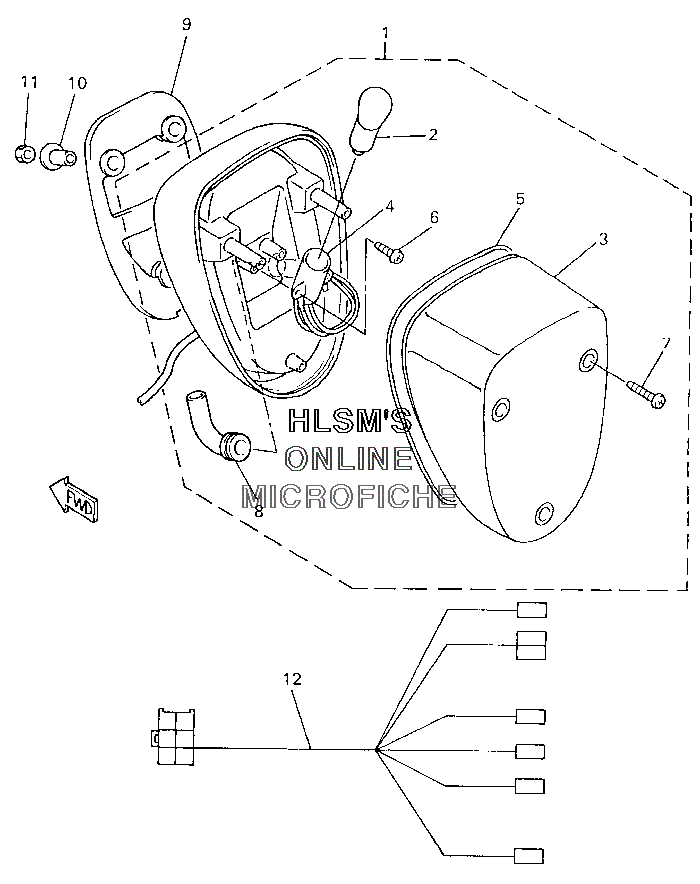

TAILLIGHT ASSY. для Yamaha XVZ 1300 TF ROYAL STAR VENTURE - 2000 года выпуска
-
№АртикулНазвание
-
15BN-84700-00-00 TAILLIGHT ASSYTAILLIGHT ASSY
-
2256-84714-61-00 ...BULB (12V-21/5W)...BULB (12V-21/5W)
-
34NK-84721-00-00 ...LENS, TAILLIGHT...LENS, TAILLIGHT
-
45BN-84735-00-00 ...CORD ASSY...CORD ASSY
-
54NK-84702-00-00 ...GASKET, TAILLENS...GASKET, TAILLENS
-
697707-40516-00 ...SCREW, TAPPING...SCREW, TAPPING
-
797780-40525-00 ...SCREW, TAPPING...SCREW, TAPPING
-
85BN-84154-00-00 ...GROMMET...GROMMET
-
94NK-84527-01-00 DAMPERDAMPER
-
1090387-063E6-00 COLLARCOLLAR
-
1195307-06600-00 NUTNUT
-
124NK-84717-00-00 CORD, TAILLIGHTCORD, TAILLIGHT
