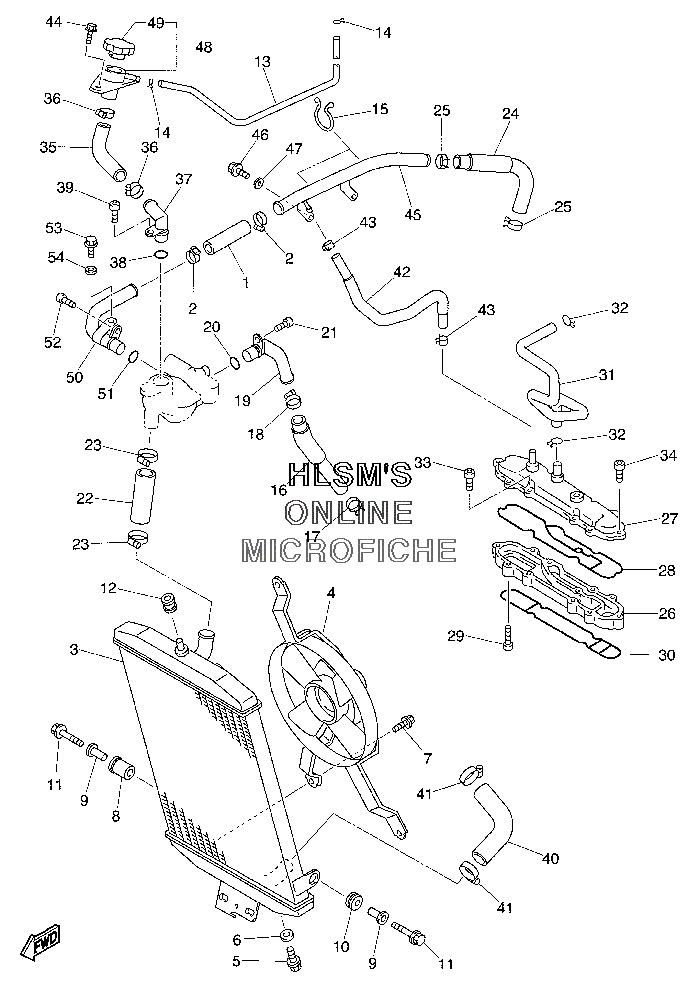

RADIATOR HOSE для Yamaha XVZ 1300 TF ROYAL STAR VENTURE - 2000 года выпуска
-
№АртикулНазвание
-
14XY-12578-00-00 HOSE 3HOSE 3
-
290450-28014-00 HOSE CLAMP ASSYHOSE CLAMP ASSY
-
34XY-12461-00-00 RADIATOR ASSYRADIATOR ASSY
-
44XY-12405-00-00 BLOWER ASSYBLOWER ASSY
-
51AA-12561-00-00 PLUG, DRAIN COCKPLUG, DRAIN COCK
-
61AA-12435-00-00 GASKETGASKET
-
790119-06044-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
84XY-12465-00-00 DAMPER, RADIATORDAMPER, RADIATOR
-
990387-0614X-00 COLLARCOLLAR
-
1090480-19283-00 GROMMETGROMMET
-
1195827-06045-00 BOLT, FLANGEBOLT, FLANGE
-
1290480-16284-00 GROMMETGROMMET
-
1390445-09123-00 HOSEHOSE
-
1490467-08003-00 CLIPCLIP
-
1590464-25267-00 CLAMPCLAMP
-
164XY-12576-00-00 HOSE 1HOSE 1
-
1790467-23109-00 CLIPCLIP
-
1890450-28014-00 HOSE CLAMP ASSYHOSE CLAMP ASSY
-
194XY-12485-00-00 PIPE 5PIPE 5
-
2093210-18417-00 O-RINGO-RING
-
2191317-06012-00 BOLTBOLT
-
224XY-12579-00-00 HOSE 4HOSE 4
-
2390450-38040-00 HOSE CLAMP ASSYHOSE CLAMP ASSY
-
244XY-12577-00-00 HOSE 2HOSE 2
-
2590467-23109-00 CLIPCLIP
-
2626H-1246A-03-00 COVER 1COVER 1
-
2726H-1246E-03-00 COVER 2COVER 2
-
2826H-12428-00-00 GASKET, HOUSING COVER 2GASKET, HOUSING COVER 2
-
2991314-06016-00 BOLTBOLT
-
3026H-12427-00-00 GASKET, HOUSING COVER 1GASKET, HOUSING COVER 1
-
314XY-11166-00-00 PIPE, BREATHER 1PIPE, BREATHER 1
-
3290467-14015-00 CLIPCLIP
-
334NK-12615-00-00 BOLTBOLT
-
3491314-06040-00 BOLTBOLT
-
354XY-12589-00-00 HOSE 6HOSE 6
-
3690450-28014-00 HOSE CLAMP ASSYHOSE CLAMP ASSY
-
374XY-12484-00-00 PIPE 4PIPE 4
-
3893210-18417-00 O-RINGO-RING
-
3991317-06012-00 BOLTBOLT
-
404XY-12588-00-00 HOSE 5HOSE 5
-
4190450-38040-00 HOSE CLAMP ASSYHOSE CLAMP ASSY
-
424XY-12551-00-00 HOSE 7HOSE 7
-
4390467-11090-00 CLIPCLIP
-
4495827-06012-00 BOLT, FLANGEBOLT, FLANGE
-
454XY-12481-00-00 PIPE 1PIPE 1
-
4697027-05010-00 BOLTBOLT
-
4792907-05600-00 WASHER, PLATEWASHER, PLATE
-
484NK-12590-00-00 CONDUCTION ASSYCONDUCTION ASSY
-
493XP-12462-00-00 ...CAP, RADIATOR...CAP, RADIATOR
-
504XY-12482-00-00 PIPE 2PIPE 2
-
5193210-18417-00 O-RINGO-RING
-
5291317-06012-00 BOLTBOLT
-
5395027-06012-00 BOLT, FLANGEBOLT, FLANGE
-
5492907-06600-00 WASHER, PLATEWASHER, PLATE
