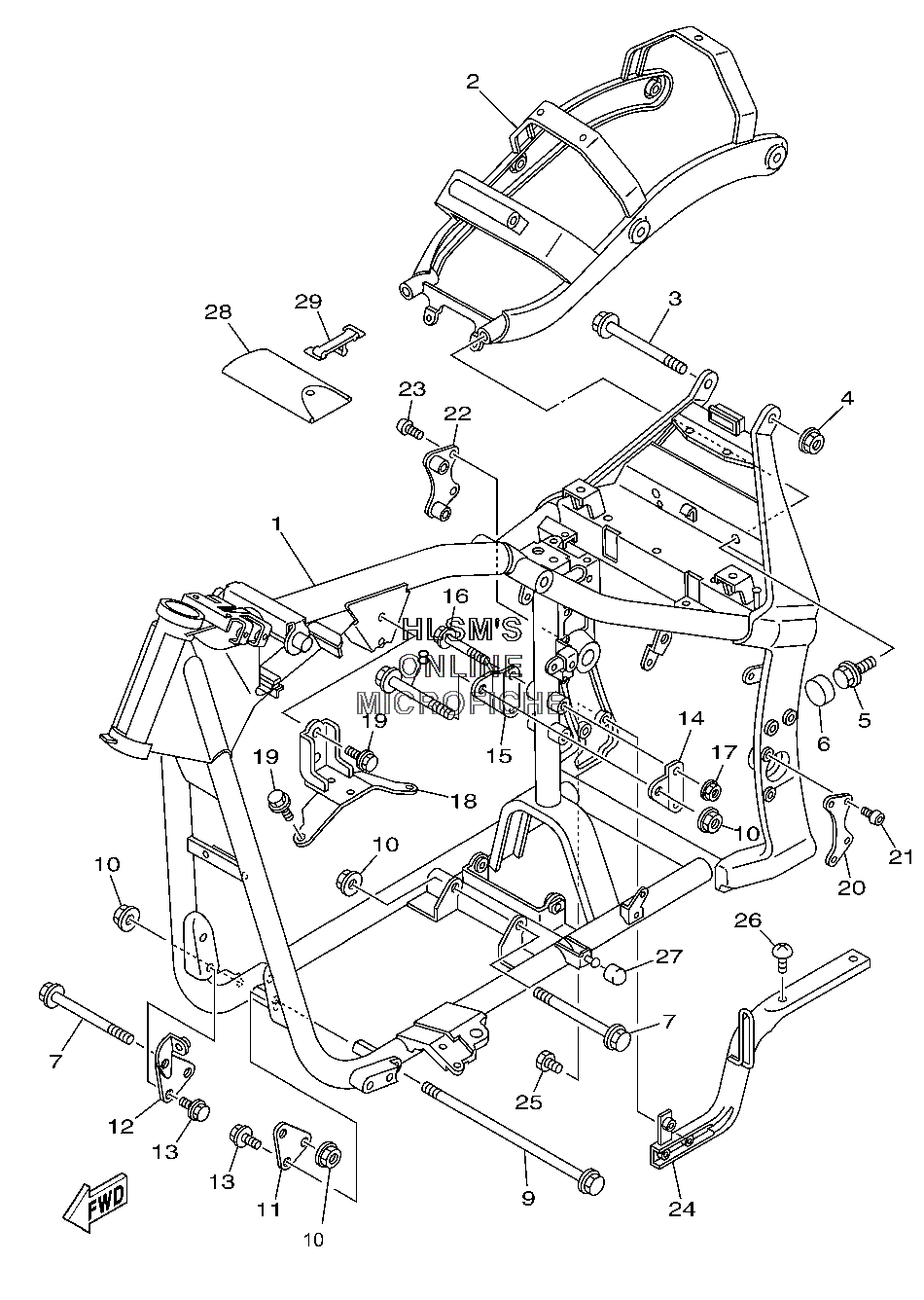

FRAME для Yamaha XVZ 1600 AT ROAD STAR SILVERADO - 2000 года выпуска
-
№АртикулНазвание
-
14WM-21110-00-00 FRAME COMP.FRAME COMP.
-
24WM-21190-00-00 REAR FRAME COMP.REAR FRAME COMP.
-
390105-12208-00 BOLT, WASHER BASEDBOLT, WASHER BASED
-
495607-12200-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
595827-10035-00 BOLT, FLANGEBOLT, FLANGE
-
64WM-21399-00-00 CAP, TOOL BOXCAP, TOOL BOX
-
790105-12208-00 BOLT, WASHER BASEDBOLT, WASHER BASED
-
890105-12309-00 BOLT, WASHER BASEDBOLT, WASHER BASED
-
990105-126A6-00 BOLT, WASHER BASEDBOLT, WASHER BASED
-
1095607-12200-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
114WM-21314-00-00 STAY, ENGINE 5STAY, ENGINE 5
-
124WM-21318-00-00 STAY, ENGINE 5STAY, ENGINE 5
-
1395827-10016-00 BOLT, FLANGEBOLT, FLANGE
-
144WM-21315-00-00 STAY, ENGINE 2STAY, ENGINE 2
-
154WM-21316-00-00 STAY, ENGINE 3STAY, ENGINE 3
-
1690105-10170-00 BOLT, WASHER BASEDBOLT, WASHER BASED
-
1795607-10200-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
184WM-21317-00-00 STAY, ENGINE 3STAY, ENGINE 3
-
1995827-10025-00 BOLT, FLANGEBOLT, FLANGE
-
204WM-2137F-00-00 STAY 1STAY 1
-
2190111-10003-00 BOLTBOLT
-
225GA-2137G-00-00 STAY 2STAY 2
-
2390111-10003-00 BOLTBOLT
-
244WM-21445-00-00 STAY, MUFFLER 1STAY, MUFFLER 1
-
2591317-10020-00 BOLTBOLT
-
2692017-10020-00 BOLT, BUTTON HEADBOLT, BUTTON HEAD
-
273VR-27114-00-00 STOPPER, MAIN STANDSTOPPER, MAIN STAND
-
284WM-28100-00-00 TOOL KITTOOL KIT
-
2955K-2811G-00-00 BANDBAND
