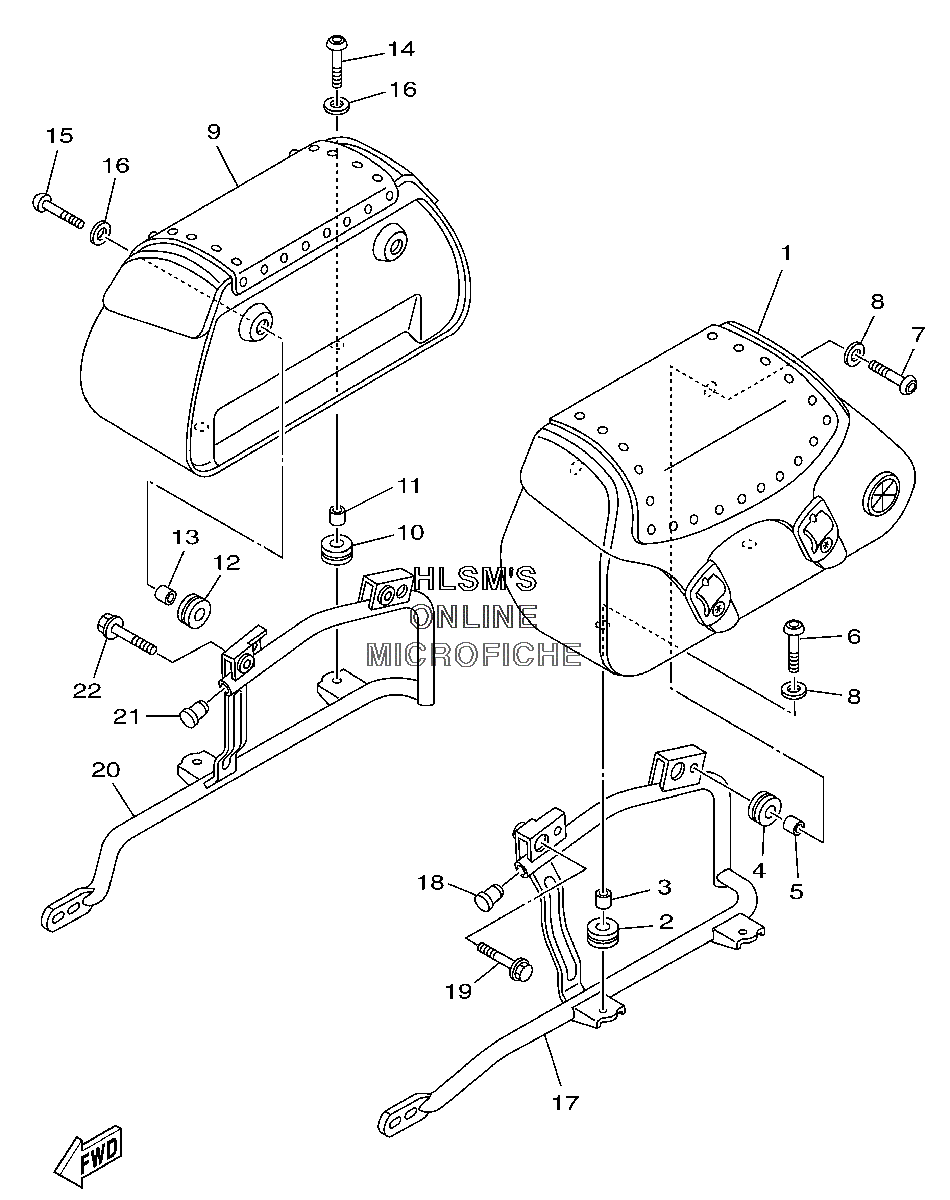

SADDLEBAG для Yamaha XVZ 1600 AT ROAD STAR SILVERADO - 2000 года выпуска
-
№АртикулНазвание
-
15GA-F8430-00-00 SADDLEBAG COMP. 1SADDLEBAG COMP. 1
-
290480-20132-00 GROMMETGROMMET
-
390387-061Y7-00 COLLARCOLLAR
-
490480-20338-00 GROMMETGROMMET
-
590387-06518-00 COLLARCOLLAR
-
692017-06030-00 BOLT, BUTTON HEADBOLT, BUTTON HEAD
-
792017-06025-00 BOLT, BUTTON HEADBOLT, BUTTON HEAD
-
890201-06074-00 WASHER, PLATEWASHER, PLATE
-
95GA-F8440-00-00 SIDE BAG COMP.SIDE BAG COMP.
-
1090480-20132-00 GROMMETGROMMET
-
1190387-061Y7-00 COLLARCOLLAR
-
1290480-20338-00 GROMMETGROMMET
-
1390387-06518-00 COLLARCOLLAR
-
1492017-06030-00 BOLT, BUTTON HEADBOLT, BUTTON HEAD
-
1592017-06025-00 BOLT, BUTTON HEADBOLT, BUTTON HEAD
-
1690201-06074-00 WASHER, PLATEWASHER, PLATE
-
175GA-28473-00-00 FRAME, SADDLEBAG 1FRAME, SADDLEBAG 1
-
1890338-19212-00 PLUGPLUG
-
1995807-08050-00 BOLT, FLANGEBOLT, FLANGE
-
205GA-28474-00-00 FRAME, SADDLEBAG 2FRAME, SADDLEBAG 2
-
2190338-19212-00 PLUGPLUG
-
2295807-08050-00 BOLT, FLANGEBOLT, FLANGE
