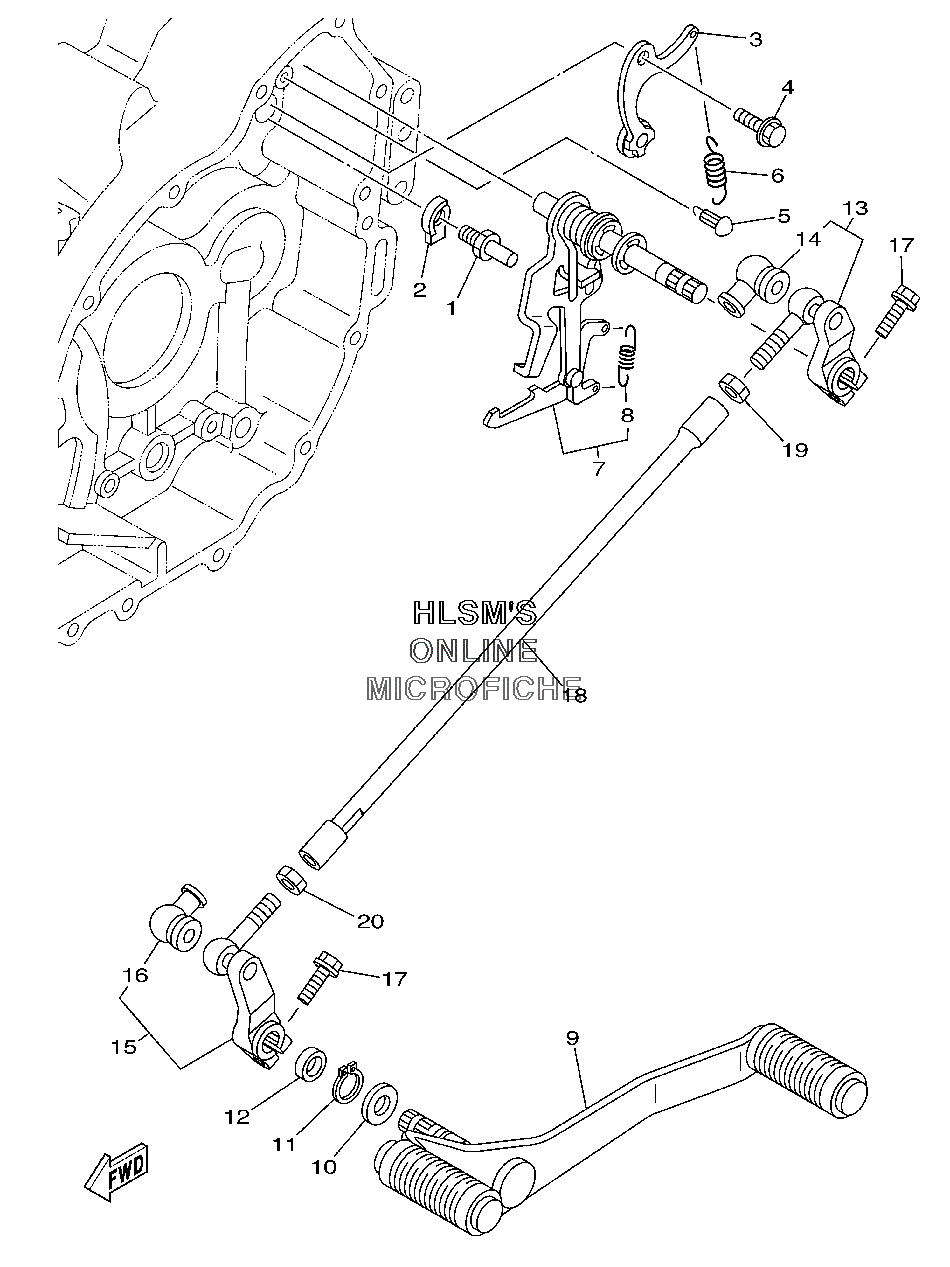

SHIFT SHAFT для Yamaha XVZ 1600 AT ROAD STAR SILVERADO - 2000 года выпуска
-
№АртикулНазвание
-
190109-08441-00 BOLTBOLT
-
290215-08115-00 WASHER, LOCKWASHER, LOCK
-
326H-18140-01-00 STOPPER LEVER ASSYSTOPPER LEVER ASSY
-
490109-063F8-00 BOLTBOLT
-
513216-34600-00 HOOK, SPRINGHOOK, SPRING
-
690507-14064-00 SPRING, TENSIONSPRING, TENSION
-
74WM-18101-00-00 SHIFT SHAFT ASSYSHIFT SHAFT ASSY
-
890506-08227-00 .SPRING, TENSION.SPRING, TENSION
-
94WM-18110-00-00 SHIFT PEDAL ASSYSHIFT PEDAL ASSY
-
1090201-127E1-00 WASHER, PLATEWASHER, PLATE
-
1199001-10600-00 CIRCLIPCIRCLIP
-
124WM-18154-00-00 COVER, DUSTCOVER, DUST
-
134WM-18130-00-00 SHIFT SHAFT ASSYSHIFT SHAFT ASSY
-
142H9-18154-00-00 ...COVER, DUST...COVER, DUST
-
154WM-18150-00-00 SHIFT LEVER ASSYSHIFT LEVER ASSY
-
162H9-18154-00-00 ...COVER, DUST...COVER, DUST
-
1791314-06020-00 BOLTBOLT
-
184WM-18115-00-00 ROD, SHIFTROD, SHIFT
-
1995304-08700-00 NUTNUT
-
2090170-08358-00 NUTNUT
