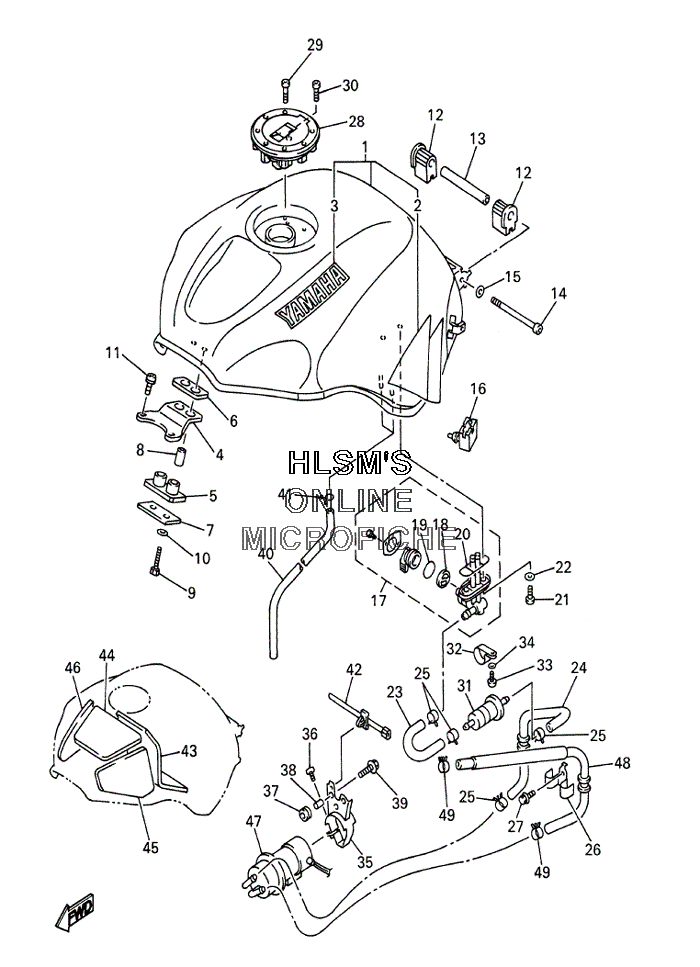

FUEL TANK 1 для Yamaha YZF 600 R6 - 2000 года выпуска
-
№АртикулНазвание
-
15EB-Y2410-30-05 FUEL TANK COMP. (564) (DEEP PURPLISH BLUE METALLIC C)FUEL TANK COMP. (564) (DEEP PURPLISH BLUE METALLIC C)
-
15EB-Y2410-30-04 FUEL TANK COMP. (390) (BLUISH WHITE COCKTAIL 1)FUEL TANK COMP. (390) (BLUISH WHITE COCKTAIL 1)
-
25EB-24240-30-00 ...GRAPHIC SET (564) (DEEP PURPLISH BLUE METALLIC C)...GRAPHIC SET (564) (DEEP PURPLISH BLUE METALLIC C)
-
25EB-24240-20-00 ...GRAPHIC SET (390) (BLUISH WHITE COCKTAIL 1)...GRAPHIC SET (390) (BLUISH WHITE COCKTAIL 1)
-
34TV-2153A-00-00 ...EMBLEM, YAMAHA...EMBLEM, YAMAHA
-
45EB-24191-00-00 BRACKET, FUEL TANK 1BRACKET, FUEL TANK 1
-
55EB-24181-00-00 DAMPER, LOCATING 1DAMPER, LOCATING 1
-
62GH-24183-00-00 DAMPER, LOCATING 3DAMPER, LOCATING 3
-
72GH-24186-00-00 WASHER, SPECIALWASHER, SPECIAL
-
890387-06027-00 COLLARCOLLAR
-
997007-06030-00 BOLTBOLT
-
1092907-06600-00 WASHER, PLATEWASHER, PLATE
-
1190159-06005-00 SCREW, WITH WASHERSCREW, WITH WASHER
-
125EB-24183-00-00 DAMPER, LOCATING 3DAMPER, LOCATING 3
-
1390387-061W6-00 COLLARCOLLAR
-
1491317-06090-00 BOLTBOLT
-
1590201-06050-00 WASHER, PLATEWASHER, PLATE
-
165EB-24182-00-00 DAMPER, LOCATING 2DAMPER, LOCATING 2
-
174TV-24500-00-00 FUEL COCK ASSY 1FUEL COCK ASSY 1
-
183XV-24523-00-00 ...VALVE...VALVE
-
193XV-24534-00-00 ...SEAL, COCK...SEAL, COCK
-
204X8-24512-00-00 ...O-RING...O-RING
-
2190149-06008-00 SCREWSCREW
-
2290202-05193-00 WASHER, PLATEWASHER, PLATE
-
235EB-24311-00-00 PIPE, FUEL 1PIPE, FUEL 1
-
245EB-24312-00-00 PIPE 2PIPE 2
-
2590467-14057-00 CLIPCLIP
-
265EB-2417H-00-00 CLAMP 1CLAMP 1
-
2795027-06012-00 BOLT, FLANGEBOLT, FLANGE
-
284HM-24602-00-00 CAP ASSYCAP ASSY
-
2990110-05112-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
3091317-05010-00 BOLTBOLT
-
314TV-24560-00-00 FILTER ASSYFILTER ASSY
-
321AE-24366-00-00 CLAMP, FUEL PIPE 1CLAMP, FUEL PIPE 1
-
3398507-06012-00 SCREW, PAN HEADSCREW, PAN HEAD
-
3492907-06600-00 WASHER, PLATEWASHER, PLATE
-
355EB-24491-00-00 BRACKET, FUEL PUMPBRACKET, FUEL PUMP
-
3698507-05010-00 SCREW, PAN HEADSCREW, PAN HEAD
-
3790480-13163-00 GROMMETGROMMET
-
3890387-060G7-00 COLLARCOLLAR
-
3990119-06096-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
4090445-102G9-00 HOSEHOSE
-
4190467-10008-00 CLIPCLIP
-
4290464-12089-00 CLAMPCLAMP
-
435EB-2414K-00-00 DAMPER, PLATE 3DAMPER, PLATE 3
-
445EB-2414H-00-00 DAMPER, PLATE 1DAMPER, PLATE 1
-
455EB-2411J-00-00 DAMPER, SIDE COVERDAMPER, SIDE COVER
-
465EB-2414J-00-00 DAMPER, PLATE 2DAMPER, PLATE 2
-
475EB-13907-00-00 FUEL PUMP COMP.FUEL PUMP COMP.
-
485EB-14294-00-00 HOSEHOSE
-
4990467-11044-00 CLIPCLIP
