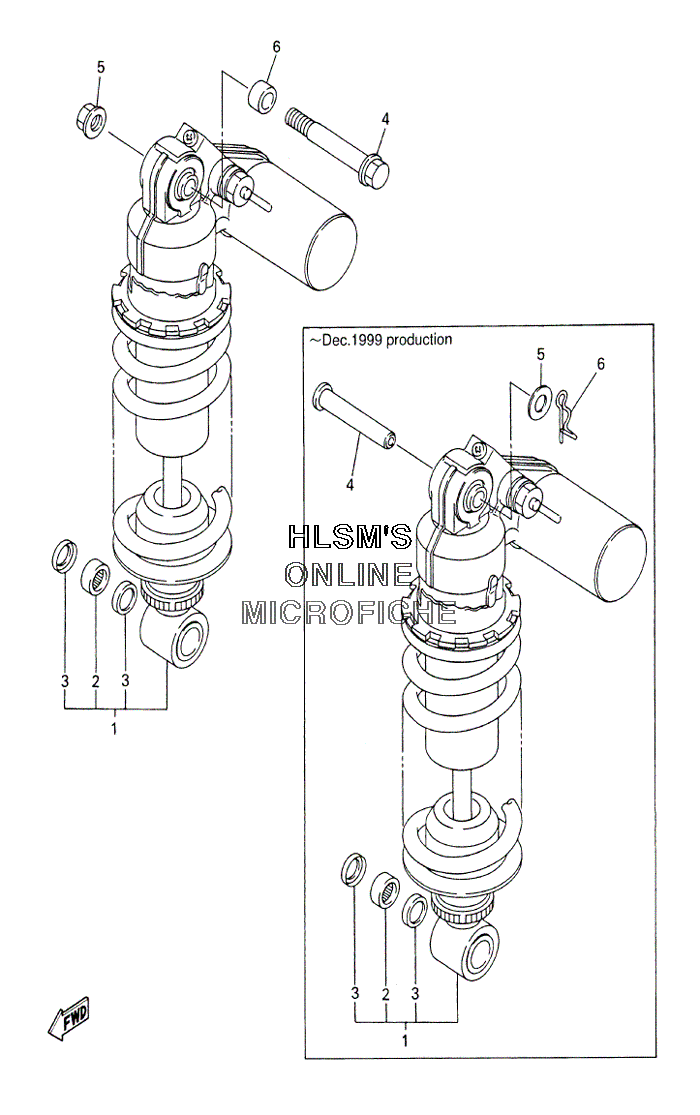

SUSPENSION - REAR для Yamaha YZF 600 R6 - 2000 года выпуска
-
№АртикулНазвание
-
15EB-22210-10-00 SHOCK ABSORBER ASSY, REARSHOCK ABSORBER ASSY, REAR
-
293315-31759-00 ...BEARING...BEARING
-
393109-17071-00 ...OIL SEAL...OIL SEAL
-
490240-10143-00 PIN, CLEVISPIN, CLEVIS
-
490105-10376-00 BOLT, WASHER BASED (APPLIED FROM JAN. 2000 PRODUCTION)BOLT, WASHER BASED (APPLIED FROM JAN. 2000 PRODUCTION)
-
590201-08759-00 WASHER, PLATEWASHER, PLATE
-
595607-10200-00 NUT, SELF-LOCKING (APPLIED FROM JAN. 2000 PRODUCTION)NUT, SELF-LOCKING (APPLIED FROM JAN. 2000 PRODUCTION)
-
690468-20196-00 CLIPCLIP
-
690387-1013U-00 COLLAR (APPLIED FROM JAN. 2000 PRODUCTION)COLLAR (APPLIED FROM JAN. 2000 PRODUCTION)
