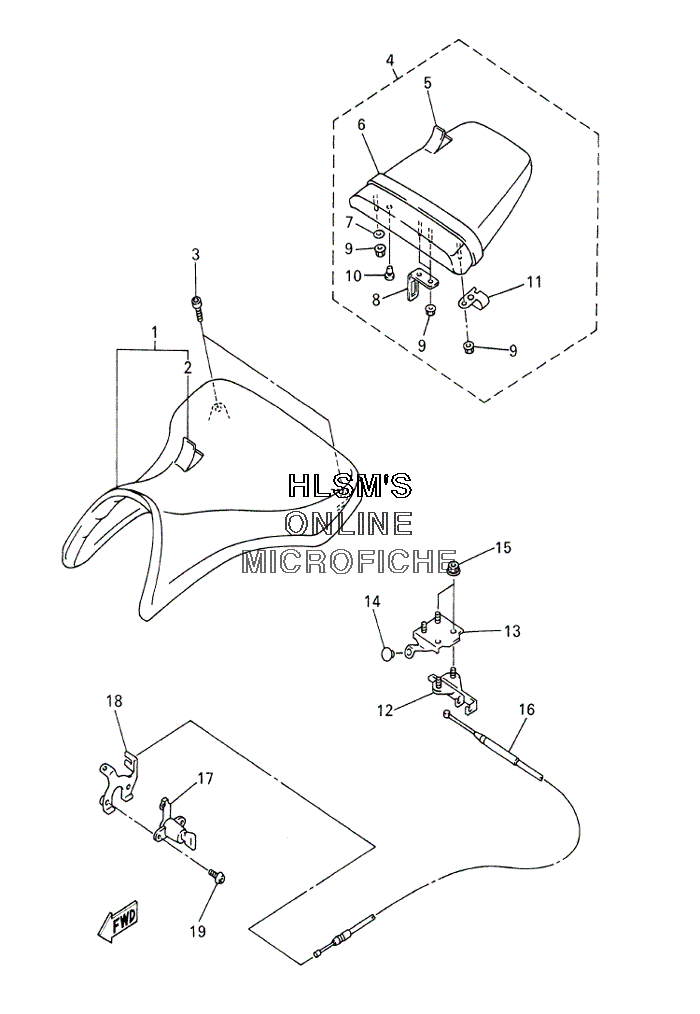

SEAT для Yamaha YZF 600 R6 - 2000 года выпуска
-
№АртикулНазвание
-
15EB-24710-00-00 SINGLE SEAT ASSYSINGLE SEAT ASSY
-
25EB-2470F-00-00 ...COVER, SEAT...COVER, SEAT
-
390110-06258-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
45EB-24750-01-00 TANDEM SEAT ASSYTANDEM SEAT ASSY
-
55EB-24751-00-00 ...COVER, TANDEM SEAT...COVER, TANDEM SEAT
-
65EB-24734-00-00 ...BAND, SEAT...BAND, SEAT
-
790201-06008-00 ...WASHER, PLATE...WASHER, PLATE
-
84HM-24728-00-00 ...BRACKET, SEAT...BRACKET, SEAT
-
990179-06635-00 ...NUT...NUT
-
1090338-06018-00 ...PLUG...PLUG
-
115EB-24728-00-00 ...BRACKET, SEAT...BRACKET, SEAT
-
124BP-24780-00-00 SEAT LOCK ASSYSEAT LOCK ASSY
-
134XV-24792-00-00 PLATEPLATE
-
1490338-07043-00 PLUGPLUG
-
1595707-06500-00 NUT, FLANGENUT, FLANGE
-
165EB-2478E-00-00 CABLE, SEAT LOCKCABLE, SEAT LOCK
-
172TV-W2470-00-00 SEAT LOCK ASSYSEAT LOCK ASSY
-
184XV-2117K-00-00 STAY, LOCKSTAY, LOCK
-
1990149-06308-00 SCREWSCREW
