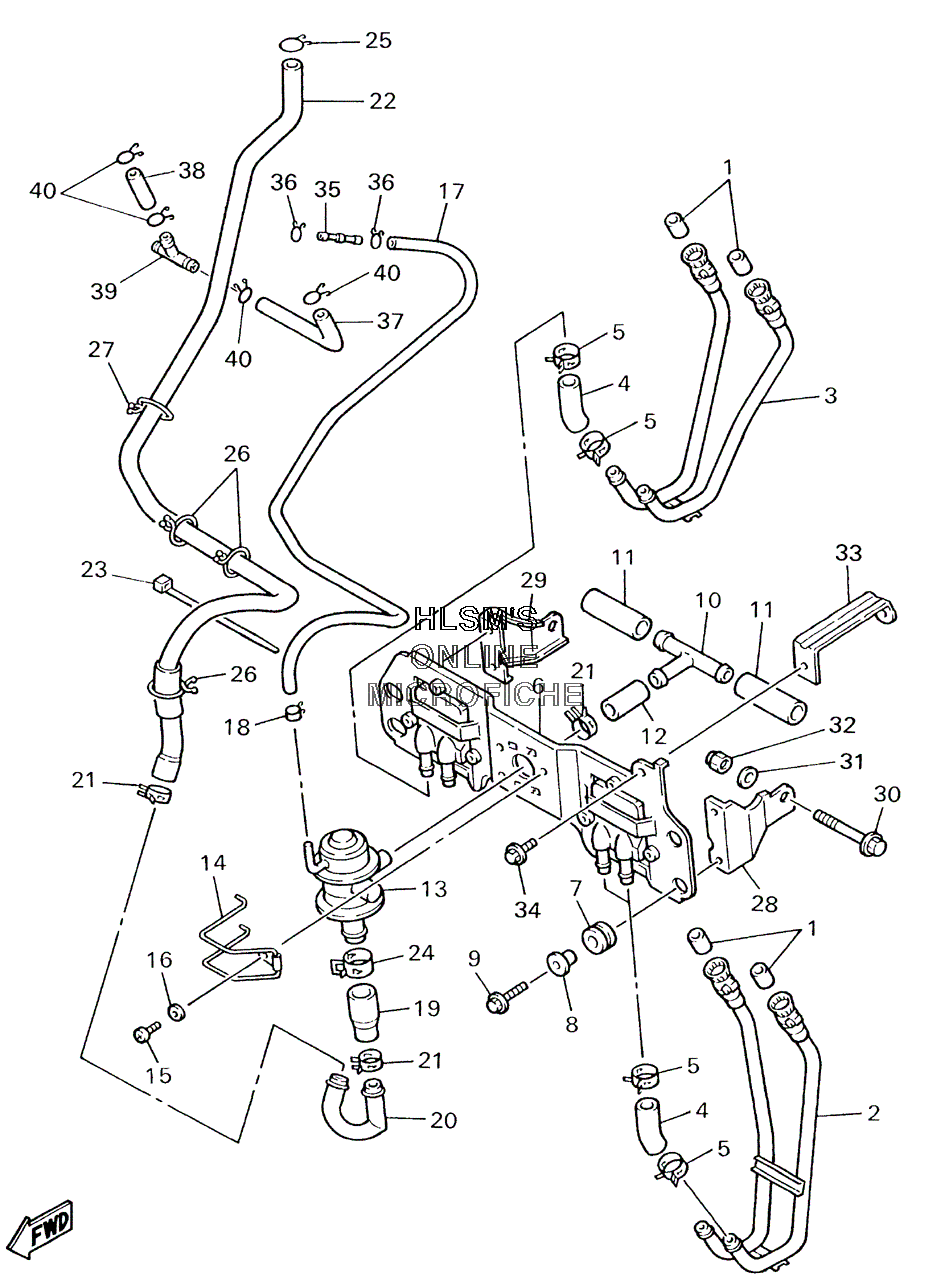

AIR INDUCTION SYSTEM для Yamaha YZF 600 - 2000 года выпуска
-
№АртикулНазвание
-
142H-14714-10-00 GASKET, MUFFLERGASKET, MUFFLER
-
24WE-14872-00-00 PIPE 2PIPE 2
-
34MM-14873-00-00 PIPE 3PIPE 3
-
42LJ-14883-00-00 HOSE, BEND 3HOSE, BEND 3
-
590468-08104-00 CLIPCLIP
-
64MM-14808-00-00 REED VALVE ASSYREED VALVE ASSY
-
790480-15316-00 GROMMETGROMMET
-
890387-07391-00 COLLARCOLLAR
-
995027-06025-00 BOLT, FLANGEBOLT, FLANGE
-
102LJ-14874-00-00 PIPE 4PIPE 4
-
114MM-14881-00-00 HOSE, BEND 1HOSE, BEND 1
-
122LJ-14882-00-00 HOSE, BEND 2HOSE, BEND 2
-
134MM-14840-00-00 AIR CUT VALVE ASS'YAIR CUT VALVE ASS'Y
-
1490462-20188-00 CLAMPCLAMP
-
1598507-06016-00 SCREW, PAN HEADSCREW, PAN HEAD
-
1692907-06600-00 WASHER, PLATEWASHER, PLATE
-
1790445-091J2-00 HOSEHOSE
-
1890467-08092-00 CLIPCLIP
-
194MM-14885-00-00 HOSE, BEND 5HOSE, BEND 5
-
204MM-14875-00-00 PIPE 5PIPE 5
-
2190467-19051-00 CLIPCLIP
-
224MM-14884-00-00 HOSE, BEND 4HOSE, BEND 4
-
235Y9-12491-00-00 CLAMP 1CLAMP 1
-
2490467-23067-00 CLIPCLIP
-
2590467-14015-00 CLIPCLIP
-
2690464-23041-00 CLAMPCLAMP
-
2790464-30040-00 CLAMPCLAMP
-
284MM-14868-00-00 BRACKET 2BRACKET 2
-
294MM-14869-00-00 BRACKET 3BRACKET 3
-
3090105-10169-00 BOLT, WASHER BASEDBOLT, WASHER BASED
-
3192907-10600-00 WASHER, PLATEWASHER, PLATE
-
3295617-10100-00 NUT, UNUT, U
-
334MM-14849-00-00 BRACKETBRACKET
-
3495807-06010-00 BOLT, FLANGEBOLT, FLANGE
-
354MM-13582-00-00 PIPEPIPE
-
3690467-08017-00 CLIPCLIP
-
371WT-24311-00-00 PIPE, FUEL 1PIPE, FUEL 1
-
3890445-11763-00 HOSEHOSE
-
393H3-24376-00-00 PIPE, JOINT 1PIPE, JOINT 1
-
4090467-10008-00 CLIPCLIP
