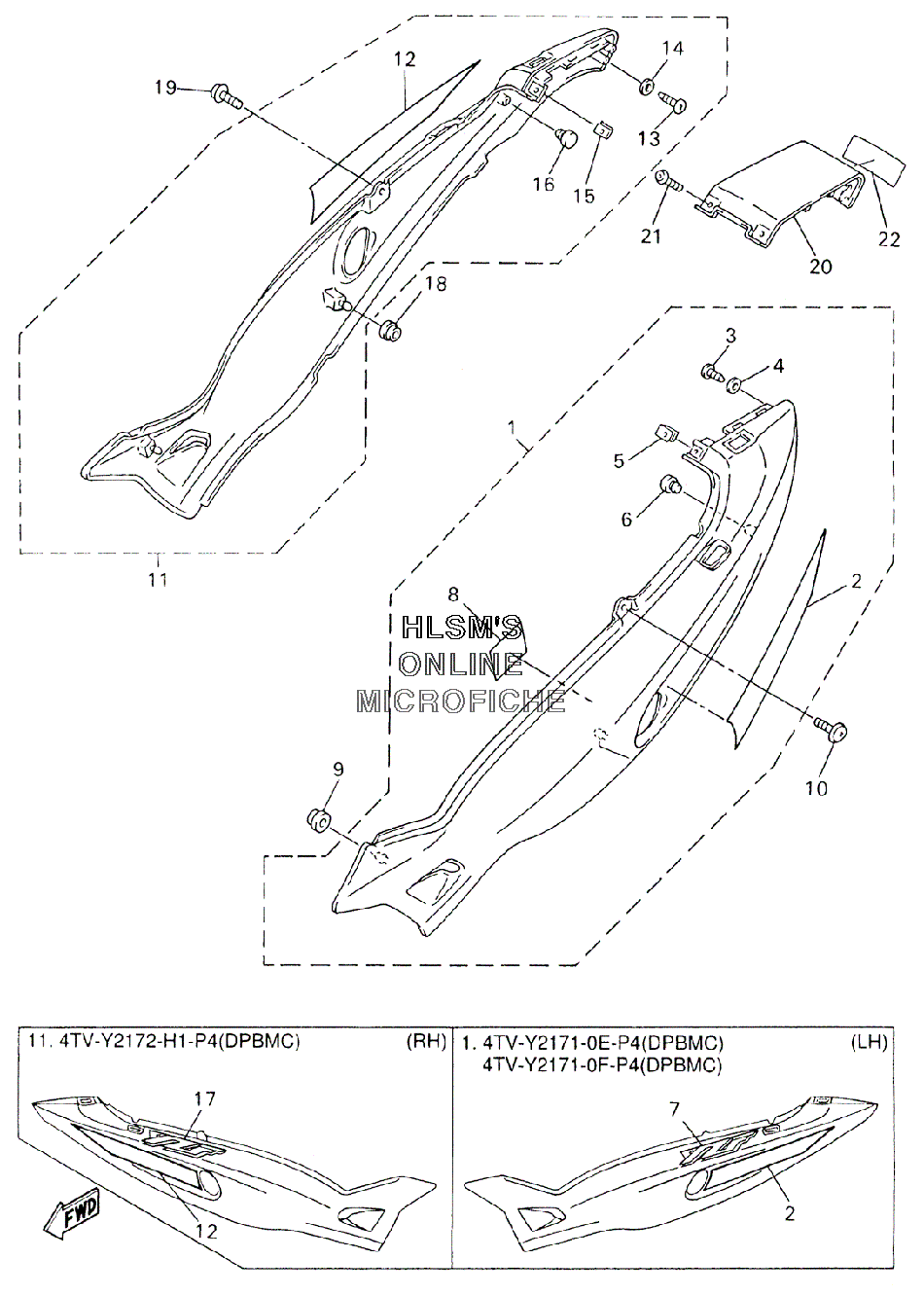

SIDE COVER для Yamaha YZF 600 - 2000 года выпуска
-
№АртикулНазвание
-
14TV-Y2171-0E-P4 COVER, SIDE 1 (564) (DARK PURPLISH BLUE METALLIC C)COVER, SIDE 1 (564) (DARK PURPLISH BLUE METALLIC C)
-
14TV-Y2171-0F-P4 COVER, SIDE 1 (564) (DARK PURPLISH BLUE METALLIC C)COVER, SIDE 1 (564) (DARK PURPLISH BLUE METALLIC C)
-
14TV-Y2171-0G-3X COVER, SIDE 1 (04B) (BLACK 2)COVER, SIDE 1 (04B) (BLACK 2)
-
14TV-Y2171-0K-3X COVER, SIDE 1 (04B) (BLACK 2)COVER, SIDE 1 (04B) (BLACK 2)
-
24TV-2173E-40-00 ...GRAPHIC 1 (564) (DARK PURPLISH BLUE METALLIC C)...GRAPHIC 1 (564) (DARK PURPLISH BLUE METALLIC C)
-
24TV-2173E-20-00 ...GRAPHIC 1 (04B) (BLACK 2)...GRAPHIC 1 (04B) (BLACK 2)
-
397707-40010-00 ...SCREW, TAPPING...SCREW, TAPPING
-
490201-042E0-00 ...WASHER, PLATE...WASHER, PLATE
-
590183-05024-00 ...NUT, SPRING...NUT, SPRING
-
690338-10132-00 ...PLUG...PLUG
-
75AH-2839H-00-00 ...EMBLEM 1 (564) (DARK PURPLISH BLUE METALLIC C)...EMBLEM 1 (564) (DARK PURPLISH BLUE METALLIC C)
-
85AH-2179V-30-00 ...PLATE, EPA 1 (EXCEPT CALIF.)...PLATE, EPA 1 (EXCEPT CALIF.)
-
85AH-2179R-30-00 ...PLATE, EPA 2 (CALIF. ONLY)...PLATE, EPA 2 (CALIF. ONLY)
-
990480-13567-00 GROMMETGROMMET
-
1090159-06033-00 SCREW, WITH WASHERSCREW, WITH WASHER
-
114TV-Y2172-H1-P4 COVER, SIDE 2 (564) (DARK PURPLISH BLUE METALLIC C)COVER, SIDE 2 (564) (DARK PURPLISH BLUE METALLIC C)
-
114TV-Y2172-B1-3X COVER, SIDE 2 (04B) (BLACK 2)COVER, SIDE 2 (04B) (BLACK 2)
-
124TV-2173F-40-00 ...GRAPHIC 2 (564) (DARK PURPLISH BLUE METALLIC C)...GRAPHIC 2 (564) (DARK PURPLISH BLUE METALLIC C)
-
124TV-2173F-20-00 ...GRAPHIC 2 (04B) (BLACK 2)...GRAPHIC 2 (04B) (BLACK 2)
-
1397707-40010-00 ...SCREW, TAPPING...SCREW, TAPPING
-
1490201-042E0-00 ...WASHER, PLATE...WASHER, PLATE
-
1590183-05024-00 ...NUT, SPRING...NUT, SPRING
-
1690338-10132-00 ...PLUG...PLUG
-
175AH-2839H-00-00 ...EMBLEM 1 (564) (DARK PURPLISH BLUE METALLIC C)...EMBLEM 1 (564) (DARK PURPLISH BLUE METALLIC C)
-
1890480-13567-00 GROMMETGROMMET
-
1990159-06033-00 SCREW, WITH WASHERSCREW, WITH WASHER
-
204TV-21651-00-P2 COVER, REAR FENDER (564) (DARK PURPLISH BLUE METALLIC C)COVER, REAR FENDER (564) (DARK PURPLISH BLUE METALLIC C)
-
204TV-21651-00-4B COVER, REAR FENDER (04B) (BLACK 2)COVER, REAR FENDER (04B) (BLACK 2)
-
2190154-05059-00 SCREW, BINDINGSCREW, BINDING
-
2299241-00080-00 EMBLEM, YAMAHA (564) (DARK PURPLISH BLUE METALLIC C)EMBLEM, YAMAHA (564) (DARK PURPLISH BLUE METALLIC C)
-
2299247-00080-00 EMBLEM, YAMAHA (04B) (BLACK 2)EMBLEM, YAMAHA (04B) (BLACK 2)
